Automobile Part Electrodynamic High Frequency Vibration Test System
- HongKong/ShenZhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Electrodynamic Shaker /vibration Testing Table
-
CE Certified Electrodynamic High Frequency Vibrating Test Equipment (ES-SERIES)
-
Electrodynamic Shaker / High Frequency Vibrating Machine
-
High Frequency Vibration Tester
-
High Frequency Electrodynamic Vibration Tester
-
High Frequency Vibration Testing Equipment
Product Details
| Place of Origin | Guangdong, China | Brand Name | ASLi | |
| Model Number | ES-1 | Power | Electronic | |
| Usage | Vibration Testing Machine |
Product Description

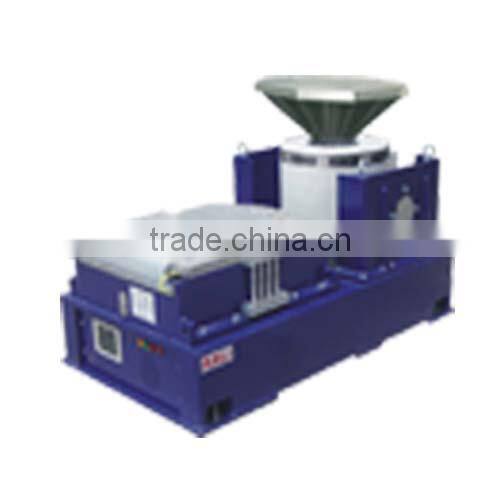

Automobile part electrodynamic high frequency vibration test system
Application:
part electrodynamic high frequency vibration test chamber is widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
Features :
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity
Technical Parameters :
Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated Replacement (p-p)mm | Max. Loading (Kg) | moving coil(Kg) | Dimension of Moving coil(mm) |
ES-1 | 1000 | 1000 | 3-3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
ES-2 | 2000 | 2000 | 3-3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
ES-2a | 2000 | 2000 | 3-3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
...... | |||||||||
For more technical parameters,pls feel free to contact ,skype: asli168 .

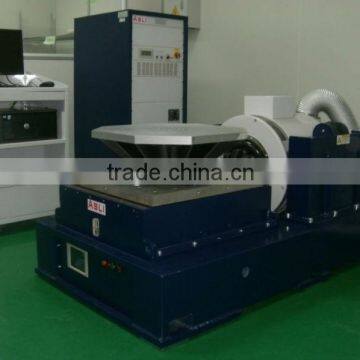

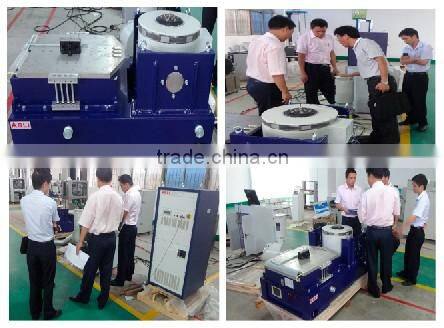

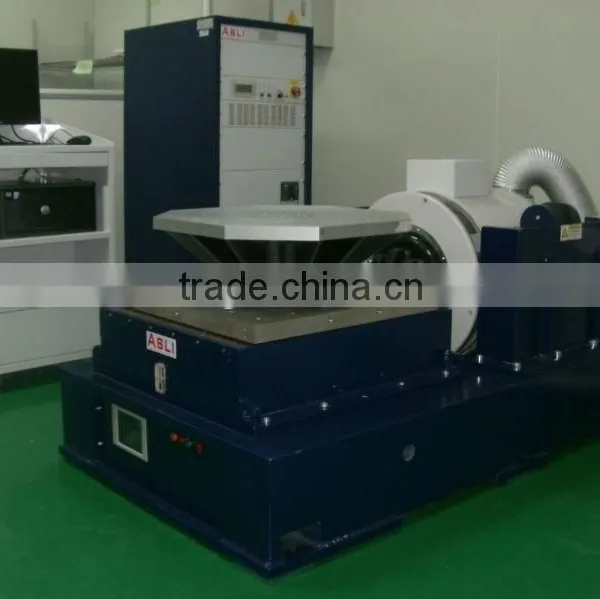

pictures for reference:
