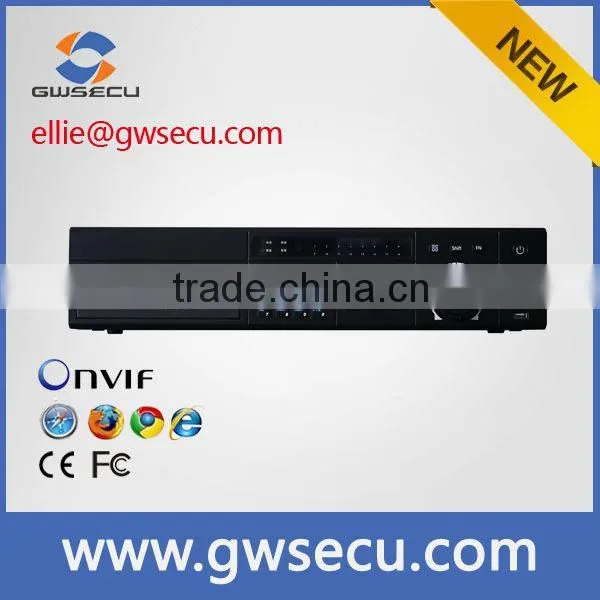

8/16/32 Channel 2U Network Video Recorder
Features:
| Model | KD- Z4808NH | KD- Z4816NH | KD- Z4832NH | ||
| Special function | |||||
| P2P function | Using Device ID and password to login realize remote monitoring playback and control like IE web login no need any network setting easy to use for end user. | ||||
| Cloud Storage | Support Dropbox and Google Drive. | ||||
| System | |||||
| Operating System | embedded LINUX | ||||
| Basic function | Live monitoring recording playback backup & remote access | ||||
| Control Mode | USB mouse Network | ||||
| Video | |||||
| Video Input | 8 channel | 16 channel | 32 channel | ||
| Incoming Bandwidth | 96Mbps | 128Mbps | 200Mbps | ||
| Output bandwidth | 64Mbps | 128Mbps | 160Mbps | ||
| Video Output | 1 CVBS BNC (1.0Vp-p75ohms) | ||||
| 1 VGA 1920×1080 1280×1024 1280×720 1024×768 | |||||
| 1 HDMI 1920×1080 1280×1024 1280×720 1024×768 | |||||
| Support Protocol | ONVIF2.4 GWSECU | ||||
| Standard | PAL / NTSC | ||||
| Audio | |||||
| Input | 1CHRCA(Line in2Vpp1Kohms) | ||||
| Output | 1CHBNC(Line out2Vpp300ohms) | ||||
| Two-way Talk | Support | ||||
| Audio Compression | G.711A | ||||
| Audio Bit Rate | 64Kbps | ||||
| Display | |||||
| IP Resolution | Main stream: max. 5632×4224; Auxiliary stream: D1 | ||||
| Resolution | 5MP/3MP/1920×1080 1280×1024 1280×720 1024×768 | ||||
| Display Split | 1/4/8/9 | 1/4/8/9/16 | 1/4/8/9/16/25/32 | ||
| Privacy Masking | Four zones for privacy masking for each channel | ||||
| Recording | |||||
| Video Compression | MPEG-4/H.264(High Profile*Level5.0) | ||||
| Image Encoding | Adjustable encoding quality variable code stream/fixed code stream | ||||
| Dual Stream | Support | ||||
| Record Mode | Manual Auto(schedule) motion detection stop | ||||
| Time bar | Support | ||||
| Video Detection & Alarm | |||||
| Trigger Events | Recording Tour Video Push Email FTP Buzzer & Screen tips | ||||
| Video Detection | 396 (22×18) detection zone variable sensitivity levels | ||||
| Capture | JPEG capture | ||||
| Intelligent Analysis | 1 CH.Face detection or 2 CH. Perimeter detection support 1080P | N/A | |||
| Alarm Input | 16channel | ||||
| Relay Out | 4 channel | ||||
| Playback & Backup | |||||
| Synchronous Playback | 8 Channel | 16 Channel | 32Channel | ||
| Playback Performance | 8CH 720P*30 or 6CH 1080P*30 | 13CH 720P*30 or 6CH 1080P*30 | 13CH 720P*30 or 6CH 1080P*30 | ||
| Backup Mode | USB HDD Network Backup | ||||
| Network | |||||
| Ethernet | 2x RJ-45port (10/100/1000Mbps) | ||||
| Network Function | HTTP TCP/IP UPNP RTSP UDP SMTP DHCP PPPOE DDNS SNTP FTPP2P | ||||
| Remote Operation | Monitoring PTZ control playback system setting file download log information | ||||
| Smart Phone Monitoring | iPhone iPad Android | ||||
| Storage | |||||
| Internal HDD | 8 SATA ports HDD capacity no limited | ||||
| eSATA | 1 port | ||||
| HDD Management | Hard disk hibernation technology HDD faulty alarm | ||||
| Auxiliary Interface | |||||
| USB | 2 ports USB2.0 | ||||
| RS232 | 1CH | ||||
| RS485 | Standard 485 half duplex PTZ control | ||||
| General | |||||
| Power Supply | DC +12V 3.3A | ||||
| Power Consumption | 10W(without HDD) | ||||
| Working Environment | -10°C~+55°C /10%~90%RH | ||||
| Weight | 7KG (without HDD) | ||||
| Dimension(L×W×H) | 2U 441x448x88mm (Rack mount) | ||||
| Package |
520x520x215mm |
||||
CMS&VSS Interface:
Web Interface:
Mobile Phone View:
1. Onvif 2.42, High compatibility, Dahua,Hikivison, Nuuo, Axxon, Milestone, Geovision, Avigilon, Luxriot, See Tec, Aimetis, Genetec
2. GWSECU Strong mental housing; Same housing with different function of different system. H.265/H.264 1.3/2.0/3.0/4.0/5.0 Megapixel IP camera with Motorized lens/ Ultra WDR /low lux/ low stream,HD AHD,CVI,TVI for your choice.
3.GWSECU Perfect structure -heat disspating from bracket, Easy to put SD Card
4. Latest ARRAY LED--- work more longer life.
5.Support Multi-language, P2P and two-dimension Code.
6.User-friendly Web interface and CMS design, convinient for clients to use.
7.High quality control and full OEM Service (put your logo on camera and software, gift box, language.etc)
8.Fast shipping time(500pcs within 15 days).
9. Two year warranty and FREE online technical help with our engineer after sale.
Shenzhen Guowei Security Co., ltd.
Headquarters:
Add.: 6/F, Dong Fang Building 1, No.16 Gaoxin North 6th Road,North High-tech Industrial Park, Nanshan District, Shenzhen, China (518108)
Our Factory
Add.: 4/F, Jinma Building, Shihuan Rd, Shilongzai Community, Shiyan, Baoan District, Shenzhen, China
Zip Code: 518108
Branch:Hongkong Guowei Security co.,limited
Add.: Rm.602,Metro Center I,Lam Hing Street Kowloon Bay.N.T.
We provide 2 years warranty service for all products.
OEM service: Silk-print with brand, IE Browser Login, WEB GUI page, local CMS software with customize brand.
1. Payment
What are the terms of payments you offer?
We accept payment via T/T, Paypal, Westunion,L/C at sight or Alipay via Alibaba
2. Shipment
How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
3. What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
4. What kind of transportation methods you offer?
A. We usually choose the cheapest express delivery for our clients, such as DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.You could use your own forwarder if possible.
B. We also can deliver your goods by air and sea as your request.
