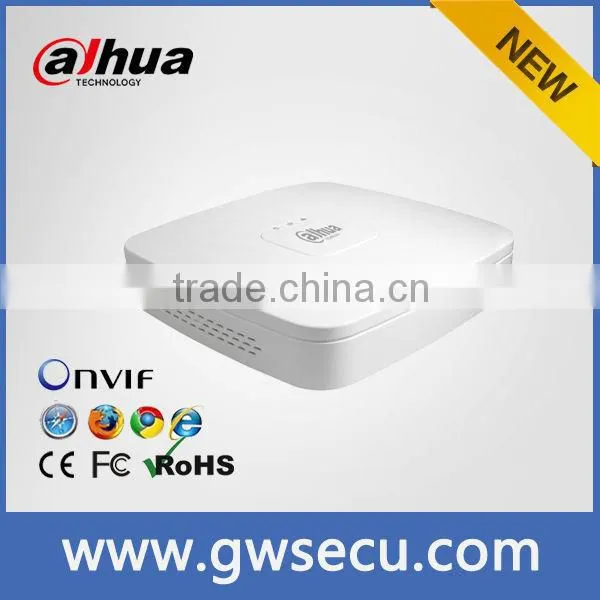

Gwsecu H.264 DAHUA 4CH Smart 1U 4PoE NVR1104-P

Gwsecu H.264 DAHUA 4CH Smart 1U 4PoE NVR1104-P thumbnail-1
Gwsecu H.264 DAHUA 4CH Smart 1U 4PoE NVR1104-P photo-1
US$ 62 - 76 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dahua
Model Number:
NVR1104-P
Contact Supplier Request Quote Chat Now
Shenzhen Guowei Security Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dahua
Model Number NVR1104-P

GWSECU is Dahua authorized company to sell their products to oversea.And we do it for many years.



We supply dahua ip camera, dahua nvr, dahua hdcvi camera/dvr,dahua dvr



Please add +86- 188 7414 0007 to your phone contact & whatsapp







gwsecu H.264 DAHUA 4CH Smart 1U 4PoE NVR1104-P

>Up to 4/8 channel IP camera input
>H.264/MJPEG dual codec decoding
>Max 56Mbps incoming bandwidth
>HDMI/VGA simultaneous video output
>All channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.3 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 1 SATA HDD up to 4TB, 2 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & DMSS
>Support IPC UPnP, 4PoE ports
>Support P2P, QR code
>Black or white case (optional)




We company integrates the design,development,production and sales of network video surveiillance products in Shenzhen nearly ten years.

 gwsecu H.264 DAHUA 4CH Smart 1U 4PoE NVR1104-Pgwsecu H.264 DAHUA 4CH Smart 1U 4PoE NVR1104-P

GWSECU office building and factory

on fair

Our products based on the high quality,  quality testing superior.



Specifications





Model DH-NVR1104-P DH-NVR1108-P
System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 4 channel 8 channel
Two-way Talk 1 channel Input,1 channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4 1/4/8/9
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264/MJPEG
Resolution 1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480) & etc.
Record Rate Max 56Mbps
Bit Rate 48~8192kbps
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback 1/4 1/4/8
Search Mode Time/Date, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Network
Ethernet 1RJ-45 port (10/100Mbps)
PoE 4 ports (IEEE802.3af/at)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support Dahua IP camera, DVR, NVS and etc.),SNMP, P2P
Max User Access 128 users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 1 SATA port, up to 4TB
Auxiliary Interface
USB 2 ports (2 Rear), USB2.0
General
Power Supply Single, DC48V/1.25A
Power Consumption NVR: 10W (without HDD)
PoE: Max 25.5W (Single port)
Working Environment -10°C~+55°C/10%~90%RH/86~106kpa
Dimension (W×D×H) Smart 1U, 205mm×205mm×45mm
Weight 500g (without HDD)








gwsecu H.264 DAHUA 4CH Smart 1U 4PoE NVR1104-P

 1.How long will it takes to deliver goods?

 We will deliver your goods within 3-5 working days in stock, without stock 7-10 working days  after an order confirmed









2.What kind of packaging you offer?

 We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.





 3.What kind of transportation methods you offer?

 A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.



 B. We also can deliver your goods by air and sea as your request.
