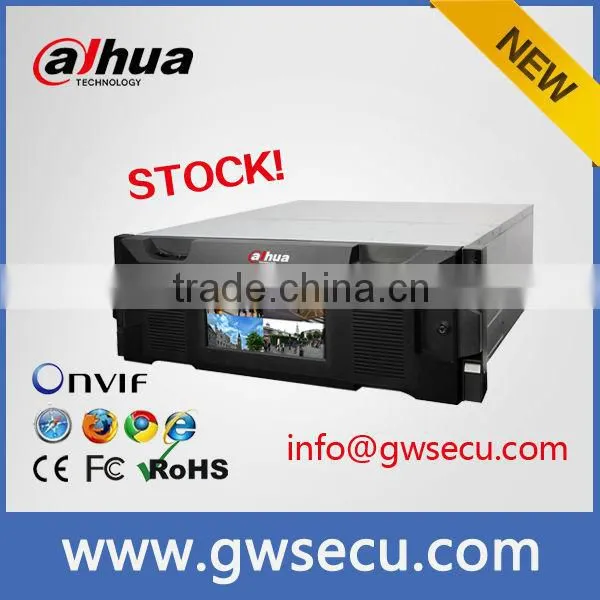

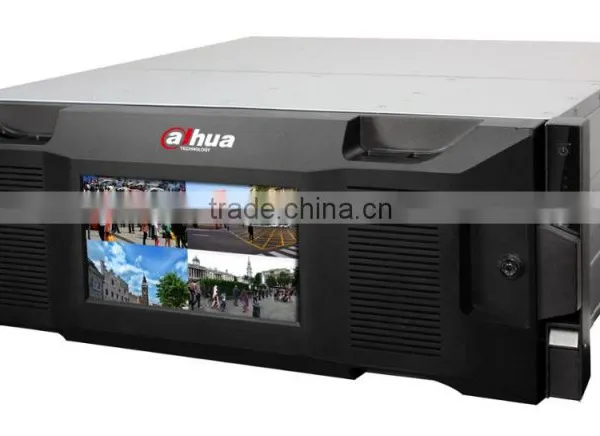

Help CenterGwsecu 2016 DAHUA 64 Channel Super 4K Network Video Recorder Supported 8HDDs 12M Solution Playback
Related Products
-
Gwsecu 2016 DAHUA128 Channel Super 4K Network Video Recorder 12Mp Resolution Preview& Playback Nvr PremiumUS$ 809 - 939MOQ: 1 Piece -
Gwsecu 2016 DAHUA32CH 1U 4PoE Network Video Recorder NVR4232-PUS$ 155.5 - 171MOQ: 1 Piece
-
Gwsecu 2016 DAHUA 64CH 1.5U 4K H.265 Network Video Recorder NVR5464(-16P)-4KS2US$ 299 - 344MOQ: 1 Piece
-
H.264 P2P Cloud HD CCTV NVR Dahua Professional 8GB DDR3 Onvif NVRUS$ 3,000 - 4,000MOQ: 1 Piece
-
Onvif 2.3 Rack-mounted Dahua NVR724-256 LCD NVR DVRUS$ 3,000 - 4,000MOQ: 1 Piece
> Max 64 channel IP cameras connection
> Max 384Mbps incoming bandwidth
> Up to 12Mp resolution preview& playback
> 1 VGA+2 HDMI
> Support 16 hot-swap HDDs
> Support RAID 0/1/5/6/10/50/60
> Support N+M hot standby
> Support iSCSI & Mini SAS to expand storage space
> Compatible with Dahua SDK and seamless integrated to other platforms
> Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
> ONVIF Version 2.4 conformance
> Redundant power supply module adopted (DH-NVR616R-64 &DH-NVR616DR-64)
> Front LCD display (DH-NVR616D-64 & DH-NVR616DR-64)
We company integrates the design,development,production and sales of network video surveiillance products in Shenzhen nearly ten years.
GWSECU office building and factory
on fair
Our products based on the high quality, quality testing superior.
Specifications
| Model | DH-NVR616-64-4K | DH-NVR616D-64-4K | DH-NVR616R-64-4K | DH-NVR616DR-64-4K |
| System | ||||
| Main Processor | Intel Processors | |||
| Operating System | LINUX | |||
| Video & Audio | ||||
| IP Camera Input | 64 channel | |||
| Two-way Talk | 1channel Input, 1channel Output, RCA | |||
| Display | ||||
| Interface | 2 HDMI (up to 3840x2160), 1 VGA | |||
| Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 | |||
| Multi-screen Display | The 1st screen: 1/4/8/9/16/25/36 | |||
| The 2nd screen: 1/4/8/9/16 | ||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |||
| Recording | ||||
| Compression | H.264/MJPEG | |||
| Resolution | 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc. | |||
| Record Rate | 256Mbps | |||
| Bit Rate | 1~ 20Mbps | |||
| Record Mode | Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop | |||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |||
| Video Detection & Alarm | ||||
| Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | |||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |||
| Alarm Input | 16ch, low level effective, green terminal interface | |||
| Relay Output | 8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface | |||
| Playback & Backup | ||||
| Playback | 128Mbps in Raid 5 mode 64Mbps in single HDD mode |
|||
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second) | |||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |||
| Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device | |||
| Network | ||||
| Interface | 4 RJ-45 ports (10/100/1000Mbps) | |||
| Ethernet Port | 4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports | |||
| Optical Fiber Interface | 2 Giga Optical fiber interface | |||
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) | |||
| Max. User Access | 128 users | |||
| Smart Phone | iPhone, iPad, Android | |||
| Storage | ||||
| Internal HDD | 16 SATA III ports, up to 96TB | |||
| HDD Mode | Single, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare) | |||
| Auxiliary Interface | ||||
| Front cover | Support hot swap, 7" inch HD LCD (1920x1080/1280x1024/1024x768) (Model –D&DR) | |||
| USB | 4 USB ports(3 USB2.0, 1 USB3.0) | |||
| eSATA | 1 eSATA port | |||
| SAS | 1 Mini SAS port | |||
| RS232 | 1 port, For PC communication& keyboard | |||
| RS485 | 1 port, For PTZ control | |||
| General | ||||
| Power Supply | AC100V~240V, 50~60Hz | AC100V~240V, 50~60Hz , Redundant | ||
| Power Consumption | <51W (Without HDD) | |||
| Working Environment | -10°C~+55°C/10%~90%RH/86~106kpa | |||
| Dimension(W×D×H) | 531.9mm ×485mm(with ears)×133.2mm | |||
| Weight | 17.45kg (without HDD) | |||
| Installation | Rack-mounted | |||
FAQ
1. Payment
What are the terms of payments you offer?
We accept payment via T/T,L/C at sight, Paypal, Westunion etc
2. Shipment
How long will it takes to deliver goods?
We will deliver your goods within 3-5 working days in stock, without stock 7-10 working days after an order confirmed
3.What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
4.What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
