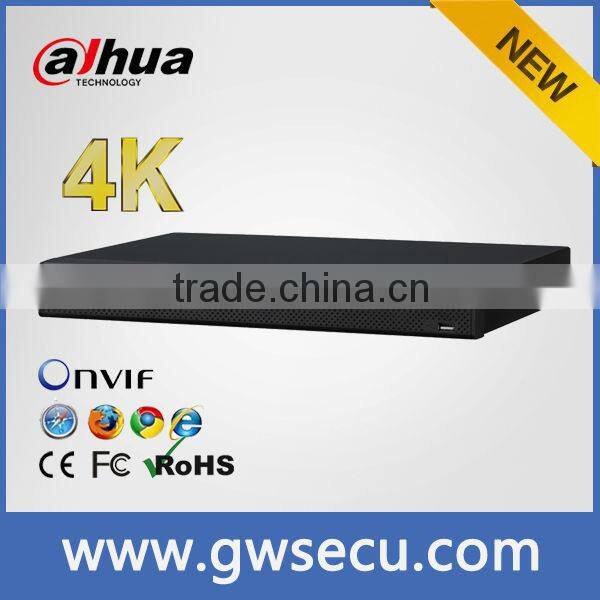

Help CenterGwsecu 2016 DAHUA 64CH 1.5U 4K H.265 Network Video Recorder NVR5464(-16P)-4KS2
Related Products
-
H.264 P2P Cloud HD CCTV NVR Dahua Professional 8GB DDR3 Onvif NVRUS$ 3,000 - 4,000MOQ: 1 Piece -
Onvif 2.3 Rack-mounted Dahua NVR724-256 LCD NVR DVRUS$ 3,000 - 4,000MOQ: 1 Piece
-
Security System Onvif 1080P 24 SATA Ports Dahua 4U NVR With RaidUS$ 3,000 - 4,000MOQ: 1 Piece
-
High Resolution Dahua Onvif 256ch 128ch 64ch NVRUS$ 3,000 - 4,000MOQ: 1 Piece
-
1080P 256CH IP Camera Super NVRUS$ 3,000 - 4,000MOQ: 1 Piece
>Up to 16/32/64 channel IPC input
>H.265/H.264/MJPEG/MPEG4 codec decoding
>Max 320Mbps incoming bandwidth
>Up to 12Mp resolution preview&playback
>Max 16ch@1080P H.265/H.264 decoding
>2HDMI/VGA simultaneous video output
>4/8/16 channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 4 SATA HDDs up to 24TB, 3 USB(2 USB3.0, 1USB2.0)
>Support IPC UPnP, 16PoE ports for PoE model
>Multiple network monitoring: Web, CMS(DSS/Smart PSS) & Mobile phone (DMSS)
We company integrates the design,development,production and sales of network video surveiillance products in Shenzhen nearly ten years.
GWSECU office building and factory
on fair
Our products based on the high quality, quality testing superior.
Specifications
| Model |
DH-NVR5416-4KS2 DH-NVR5416-16P-4KS2 |
DH-NVR5432-4KS2 DH-NVR5432-16P-4KS2 | DH-NVR5464-4KS2 DH-NVR5464-16P-4KS2 | ||
| System | |||||
| Main Processor | Quad-core embedded processor | ||||
| Operating System | Embedded LINUX | ||||
| Video& Audio | |||||
| IP Camera Input | 16 channel | 32 channel | 64 channel | ||
| Two-way Talk | 1channel Input, 1channel Output, RCA | ||||
| Display | |||||
| Interface | 2 HDMI (1 HDMI up to 3840x2160), 1 VGA | ||||
| Resolution | 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768 | ||||
| Display Split | 1/4/8/9/16 | 1/4/8/9/16/25/36 | 1/4/8/9/16/25/36 | ||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||
| Recording | |||||
| Compression | H.265/H.264/MJPEG/MPEG4 | ||||
| Resolution | 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc. | ||||
| Record Bit Rate | 320Mbps | ||||
| Bit Rate | 16kbps~ 20Mbps per channel | ||||
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | ||||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||||
| Video Detection & Alarm | |||||
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | ||||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||
| Alarm Input | 16 channel | ||||
| Relay Output | 6 channel | ||||
| Playback & Backup | |||||
| Sync Playback | 1/4/8 | 1/4/8/16 | 1/4/8/16 | ||
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | ||||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||||
| Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device | ||||
| Network | |||||
| Ethernet | 2 RJ-45 port (10/100/1000Mbps) | ||||
| 1 RJ-45 port (10/100/1000Mbps)(for -16P model) | |||||
| PoE | 16 ports (IEEE802.3af/at) (for -16P model) | ||||
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P | ||||
| Max. User Access | 128 users | ||||
| Smart Phone | iPhone, iPad, Android | ||||
| Storage | |||||
| Internal HDD | 4 SATA ports, up to 24TB | ||||
| External HDD | 1 eSATA port | ||||
| Auxiliary Interface | |||||
| USB | 3 ports (2 Rear USB3.0,1 Front USB2.0) | ||||
| RS232 | 1 port, For PC communication&Keyboard | ||||
| General | |||||
| Power Supply | Single, AC 100~240V, 50/60 Hz | ||||
| Power Consumption | NVR: 16.7W for non-PoE model(without HDD) 17.5W for PoE model(without HDD) |
||||
| PoE: Max 25.5W for single port(for -16P model), 150W in total | |||||
| Working Environment | -10°C~+55°C / 10%~90%RH / 86~106kpa | ||||
| Dimension (W×D×H) |
1.5U, 440mm×413mm×75mm | ||||
| Weight | 4.3KG for non-PoE model(without HDD) 4.65KG for PoE model(without HDD) |
||||
FAQ
1. Payment
What are the terms of payments you offer?
We accept payment via T/T,L/C at sight, Paypal, Westunion etc
2. Shipment
How long will it takes to deliver goods?
We will deliver your goods within 3-5 working days in stock, without stock 7-10 working days after an order confirmed
3.What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
4.What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
