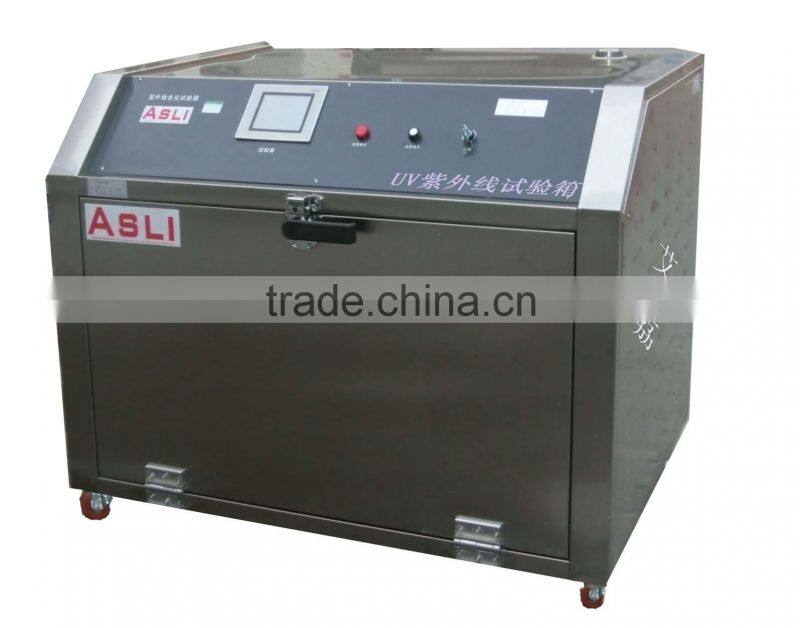

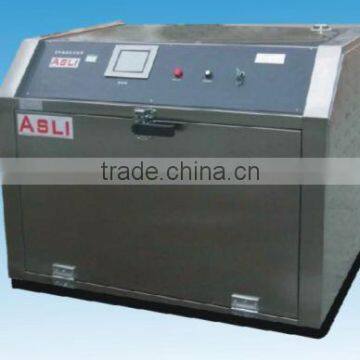

Programmable Constant Weathering Aging UV Test Chamber

Name: Programmable Constant Weathering Aging UV Test Chamber
Brand: ASLi
SKU: 110179057
Availability: InStock

US$ 11,000 - 27,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ASLi

Model Number:

UV-230

Dongguan ASLi Test Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen/HongKong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ASLi

Model Number UV-230

Power Electronic

Usage Universal Testing Machine

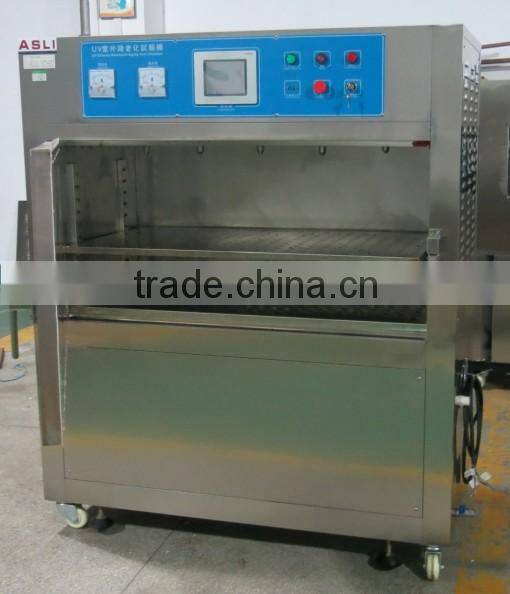

programmable constant weathering aging UV test chamber

Application:

Simulated sunlight damage on the material and product test, widely used in the evaluation of material climate resistant.

programmable constant weathering aging UV test chamber Technical parameters:

Model		UV-230
Internal Dimension WxHxD (cm)		115x50x40
External Dimension WxHxD (cm)		150x150x55
Applicable Standard		GB/T16422,GB/T5170.9
Temperature Range		R.T.+10°C~+70°C
Temperature Fluctuation		±0.5°C
Humidity Range		≥95%R.H.
Environmental Temperature for Use		+5°C~+35°C
Test Light Source		UVA,UVB UV light
Wave Length of Test light Source (nm)		280~400
Center Distance between Sample and Tube (mm)		50±2
Center Distance Between Tubes (mm)		75±2
Material of Internal Case		Stainless steel with sanding polish
Material of External Case		Stainless steel with sanding polish or painting coated
Heating the Humidifier		Electric-heat type steam generator ,heating and humidification
Safety System	Operation Interface	Digital smarts touch key input (Programmable)
	Running Mode	Program/constant running type
	Input	Black panel thermometer.PT-100 Sensor
Standard Configuration		1 pc Stainless steel shelves
Safety Configuration		Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection
Power		AC220V 1ø 3 lines, 50HZ
