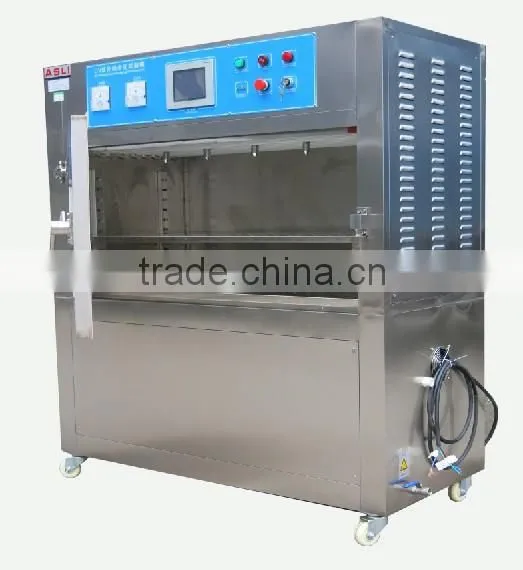

UV Irradiation Chambers

UV Irradiation Chambers thumbnail-1
UV Irradiation Chambers photo-1
US$ 25,000 - 67,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ASLi
Model Number:
SC-A/B/C
Contact Supplier Request Quote Chat Now
Dongguan ASLi Test Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ASLi
Model Number SC-A/B/C
Power Other, Electronic, AC220V/380V
Usage Universal Testing Machine

UV Irradiation Chambers



          ASLI , as a leading UV irradiation chambers supplier from China, has more than 25 year’s experience in  UV-irradiation chambers manufacture. ASLI boost his own technical team in UV-irradiation chambers R&D, and it also introduces the advance quality control method in UV-irradiation chambers production. Our UV-irradiation chambers series products are in compliance with the industrial standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.



UV-irradiation Chambers Technical Parameters :

Model

EC-A

SC-A

EC-B

EC-C

 Light Device

UV carbon arc light

Sunlight carbon arc light

UV carbon arc light

 Internal Dimension

W×H×D (mm)

1000×9000×1000

1100× 1000× 1100

700×900×700

 External Dimension

 W×H×D (mm)

1300× 1300×2000

1300× 1300×2000

1150× 1800×900

 Testing Time (H.)

20

60

20

 Testing Voltage

120V~145V(135V)

48V~52V(50V)

120V~145V

 Testing Current

15A~17A(16A)

58A~62A(60A)

15A~17A

 Black Ball

 Thermometer

63±3°C~83±3°C

 Dia. Of Test Shelf (Φ, mm)

800

960

508

 Revolution Speed  of

Testing Shelf (RPM)

1

3

 Sample Shelf

390×70mm, 30 pcs

390×70mm, 30 pcs

248×50mm, 20 pcs

 Temperature Range

RT +10°C~85°C

RT +10°C~63°C

 Humidity Range

AT40°C ,RH is 40%~85% / AT80°C, RHis30%-50%

Under 50%RH

30%~85%RH

 Carbon  Rod

 Upper

13Φ×305mm, 2 pcs

35Φ×350mm,4pcs

13Φ×305mm ,1pc,

 Lower

3Φ×100mm,4pcs

23Φ×350mm,4pcs

13Φ×100mm,2pcs

 Power

AC220V 1&3 lines

AC380V 3& 5 lines

AC220V 1& 3 lines



 UV-irradiation Chambers Features:

1. Can record the temperature, humidity, arc light voltage, arc light current, BT black ball temperature and arc light in the

 same time.

2. 60H continuous testing.

3. BT black ball temperature digital display, damper regulator can be controlled for stable of black ball’s temperature.

4. Unique DEW design
5.All data use digital display for long time management.

6. Adopt carbon arc Intensity detector, to keep the wave length in standard range.



UV-irradiation Chamber  Applications:

UV-irradiation chamber applied to test the sample aging resistant performance by explore the samples

under  simulated  extremes sunlight ,humidity , etc. nature environmental conditions, can know the samples

fade, transmittance, glossiness, stripping, hard, softening performance in short time. This machine is

widely used in t he aviation industry, paint industry, coating industry. The automotive industry, textile

industry, dye industry, plastic industry, building industry, etc.



More detailed information about UV-irradiation chamber ,please do not hesitate to contact ASLi sales !



Factory pictures for your reference:

UV Irradiation Chambers





UV Irradiation Chambers



UV Irradiation Chambers



...
