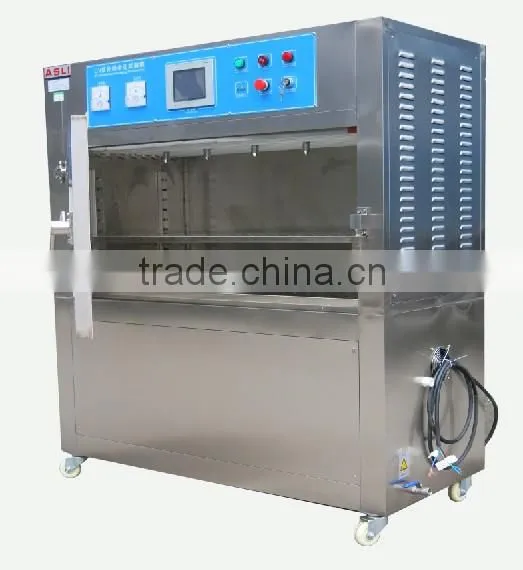

UV aging test chamber manufacturer
1.Application:
UV aging testing is for light fastness, weather resistance and light aging test nonmetal materials. Sample exposure test is done fluorescent UV lamp climate chamber in a controlled environment. Through simulation and enhanced by natural climate, light, heat, humidity, rainfall and other mainly environmental aging destruction factors. By simulate accelerated test in the effect of long-term exposure, to obtain the material the results of weather resistance.
2. Main features:
Simulated sunlight damage on the material and product test, widely used in the evaluation of material climate resistant.
3. Technical parameters:
Model |
UV-230 |
|
Internal Dimension WxHxD (cm) |
115x50x40 |
|
External Dimension WxHxD (cm) |
150x150x55 |
|
Applicable Standard |
GB/T16422,GB/T5170.9 |
|
Temperature Range |
R.T.+10°C~+70°C |
|
Temperature Fluctuation |
±0.5°C |
|
Humidity Range |
≥95%R.H. |
|
Environmental Temperature for Use |
+5°C~+35°C |
|
Test Light Source |
UVA,UVB UV light |
|
Wave Length of Test light Source (nm) |
280~400 |
|
Center Distance between Sample and Tube (mm) |
50±2 |
|
Center Distance Between Tubes (mm) |
75±2 |
|
Material of Internal Case |
Stainless steel with sanding polish |
|
Material of External Case |
Stainless steel with sanding polish or painting coated |
|
Heating the Humidifier |
Electric-heat type steam generator ,heating and humidification |
|
Safety System |
Operation Interface |
Digital smarts touch key input (Programmable) |
Running Mode |
Program/constant running type |
|
Input |
Black panel thermometer.PT-100 Sensor |
|
Standard Configuration |
1 pc Stainless steel shelves |
|
Safety Configuration |
Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection |
|
Power |
AC220V 1ø 3 lines, 50HZ |
|
4. Warranty: one year free warranty for whole set machine,lifelong time maintainance.
5. After-sale service: feedback within 2 hours after get the call.
6. Service:OEM service,Design service,Buyer lable service.
7. More pictures for UV aging test chamber :
