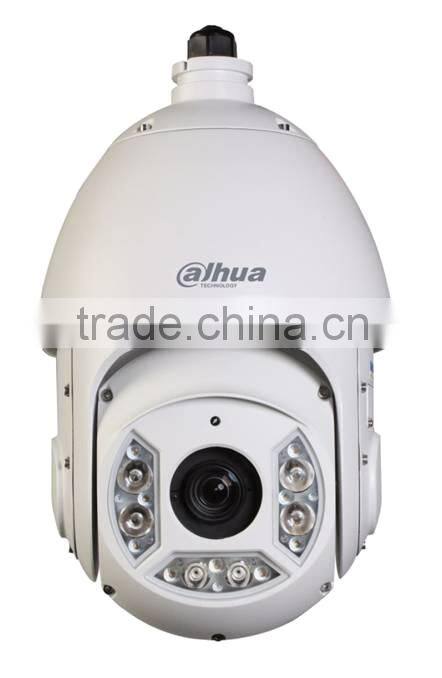

Help Center2016 DAHUA Eco-savvy 2 Megapixel Full HD 30x Network IR PTZ Dome Camera SD6C230T-HN
Related Products
-
DAHUA Eco-savvy 2 Megapixel Full HD 20x Network IR PTZ Dome CameraSD6C220T-HNUS$ 358 - 376MOQ: 1 Piece -
DAHUA Eco-savvy 2 Megapixel HD 12x Mini Network PTZ Dome Camera SD42C212T-HNUS$ 191 - 200MOQ: 1 Piece
-
DAHUA 2 Megapixel Full HD 12x Mini Network PTZ Dome Camera SD40212T-HNUS$ 230 - 249MOQ: 1 Piece
-
DAHUA 2 Megapixel Full HD 30x Network PTZ Dome Camera SD60230T-HNUS$ 447 - 501MOQ: 1 Piece
-
DAHUA Eco-savvy 2 Megapixel Full HD 20x Network PTZ Dome Camera SD60220T-HNUS$ 334 - 351MOQ: 1 Piece
GUOWEI is Dahua authorized company to sale their products to oversea.And we do it for many years.
We supply dahua ip camera, dahua nvr, dahua hdcvi camera/dvr,dahua dvr(please ask for latest price)
Please add +86- 188 7414 0007 to your phone contact & whatsapp
Features
>30x optical zoom
>Support Triple-streams encoding
>Max. 25/30fps @1080P(1920x1080) & 50/60fps @720P resolution
>DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 240°/s pan speed, 360° endless pan rotation
>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 2/1 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, IP66
>IR Distance up to 100m
Specifications
| Model | DH-SD6C230T-HN | |
| Camera | ||
| Image Sensor | 1/2.8” Exmor CMOS | |
| Effective Pixels | 1920(H) x 1080(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
| Min. Illumination | Color: 0.05Lux/F1.6; B/W: 0.005Lux/F1.6 | |
| S/N Ratio | More than 50dB | |
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | Ultra DNR (2D/3D) | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 4.5mm~135mm (30x Optical zoom) | |
| Max Aperture | F1.6 ~ F4.4 | |
| Focus Control | Auto / Manual | |
| FOV-H | H: 67.8° ~ 2.4° | |
| Close Focus Distance | 100mm~ 1000mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s | |
| Preset Speed | Pan: 240° /s; Tilt: 200° /s | |
| Preset | 300 | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
| IR Distance | 100m (2 near IR LED+ 4 far IR LED) | |
| Video | ||
| Compression | H.264H/H.264B/H.264/ MJPEG | |
| Resolution | 1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240) | |
| Frame Rate | Main Stream | 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) |
| Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
| Sub Stream 2 | 720P/D1/ CIF (1 ~ 25/30fps) | |
| Bit Rate | H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps | |
| Audio | ||
| Compression | G.711a / G.711u(32kbps)/ PCM(128kbps) | |
| Interface | 1/1 channel In/Out | |
| Intelligent Function | ||
| IVS (optional) | Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, | |
| Face Detection | Support | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | |
| Compatibility | ONVIF PSIA CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 128GB | |
| RS485 | 1 | |
| Alarm | 2/1 channel In/Out | |
| General | ||
| Power Supply | AC 24V/3A | |
| Power Consumption | 10.5W, 26W (IR on, Heater on) | |
| Working Environment | -40ºC ~ 60ºC / Less than 90% RH | |
| Ingress Protection | IP66 | |
| Dimensions | Φ204.7(mm) x 359.9(mm) | |
| Weight | 5kg | |
PSS
CERTIFICATE
OFFICE BUILDING &OFFICE DEPARTMENT&FACTORY
FAQ
1. Payment
What are the terms of payments you offer?
We accept payment via T/T,L/C at sight, Paypal, Westunion etc
2. Shipment
How long will it takes to deliver goods?
We will deliver your goods within 3-5 working days in stock, without stock 7-10 working days after an order confirmed
What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
