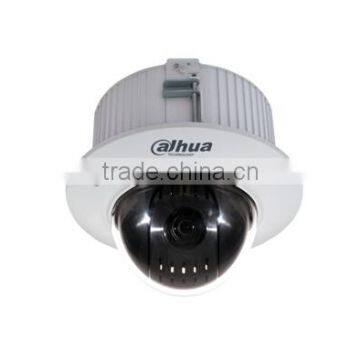

Help CenterDAHUA Eco-savvy 2 Megapixel HD 12x Mini Network PTZ Dome Camera SD42C212T-HN
Related Products
-
DAHUA 2 Megapixel Full HD 12x Mini Network PTZ Dome Camera SD40212T-HNUS$ 230 - 249MOQ: 1 Piece -
DAHUA 2 Megapixel Full HD 30x Network PTZ Dome Camera SD60230T-HNUS$ 447 - 501MOQ: 1 Piece
-
DAHUA Eco-savvy 2 Megapixel Full HD 20x Network PTZ Dome Camera SD60220T-HNUS$ 334 - 351MOQ: 1 Piece
-
Dahua Ptz ip Camera,duahua Outdoor Ptz ip Camera,1080p ip CameraUS$ 1 - 440MOQ: 1 Piece
-
Dahua Security Camera Nvr System Ptz Dome ip Camera,video Surveillance ip CameraUS$ 1 - 440MOQ: 1 Piece
GUOWEI is Dahua authorized company to sale their products to oversea.And we do it for many years.
We supply dahua ip camera, dahua nvr, dahua hdcvi camera/dvr,dahua dvr
Please add +86- 188 7414 0007 to your phone contact & whatsapp
Features
>Powerful 12x optical zoom
>Support dual-streams encoding
>Max. 25/30fps @1080P(1920x1080) & 50/60fps @720P resolution
>WDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
>Max 300°/s pan speed, 360° continuous pan rotation
>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 2/1 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>IK10(optional), POE+
Specifications
| Model | DH-SD42C212T-HN | |
| Camera | ||
| Image Sensor | 1/2.8" CMOS | |
| Effective Pixels | 1944(H) x 1092(V), 2 Megapixels | |
| Horizontal Resolution | >1000TVL | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/3s ~1/30,000s | |
| Min. Illumination | Color: 0.05 Lux/F1.6, B/W: 0.005Lux/F1.6 | |
| S/N Ratio | More than 55dB | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / WDR (120dB) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | 2D / 3D | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 5.1 mm~61.2mm (12x Optical zoom) | |
| Max Aperture | F1.6~ F3.0 | |
| Focus Control | Auto / Manual | |
| FOV-H | H: 59.3° ~ 5.2° | |
| Close Focus Distance | 100mm~1000mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~ 300°/s; Tilt: 0.1° ~120°/s | |
| Preset Speed | Pan: 300°/s; Tilt:200°/s | |
| Preset | 300(DH-SD) | |
| PTZ Mode | 5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240) | |
| Frame Rate | Main Stream | 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) |
| Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
| Sub Stream 2 | 720P/ D1/ CIF (1 ~ 25/30fps) | |
| Bit Rate | H.264: 448K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps | |
| Audio | ||
| Compression | G.711a / G.711u (32kbps) / PCM (128kbps) | |
| Interface | 1/1 channel In/Out | |
| Intelligent Function | ||
| IVS (optional) | Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection | |
| Face Detection | Support | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| Compatibility | ONVIF PSIA CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 128GB | |
| RS485 | N/A | |
| Alarm | 2/1 channel In/Out | |
| General | ||
| Power Supply | AC24V/1.5A (±10%), POE plus (802.3at) | |
| Power Consumption | 12W | |
| Working Environment | -20ºC ~ 60ºC / Less than 90% RH | |
| Ingress Protection | N/A | |
| Vandal Resistance | IK10 (optional) | |
| Dimensions | Φ198mm×158mm | |
| Weight | 2.3Kg | |
