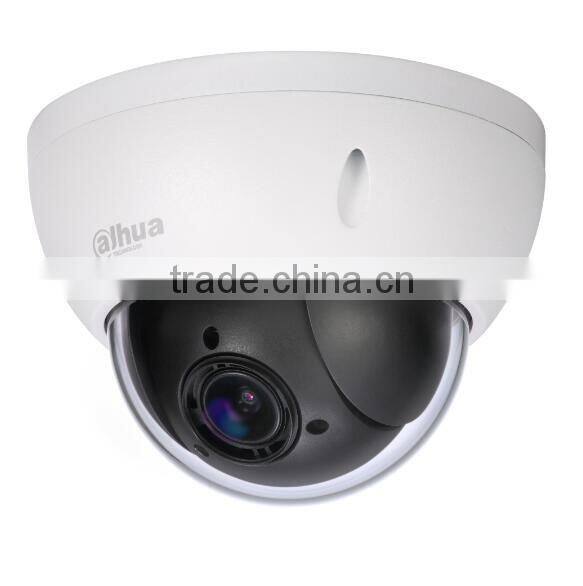

Dahua 1auto Tracking Dome Ptz ip Camera,High Speed Mini Wifi Ptz Indoor Dome ip Camera 16x Mini Speed Dome Camera

Shenzhen Guowei Security Electronic Co., Ltd.
Dahua 1auto Tracking Dome Ptz ip Camera,High Speed Mini Wifi Ptz Indoor Dome ip Camera 16x Mini Speed Dome Camera thumbnail-1
Dahua 1auto Tracking Dome Ptz ip Camera,High Speed Mini Wifi Ptz Indoor Dome ip Camera 16x Mini Speed Dome Camera thumbnail-2
Dahua 1auto Tracking Dome Ptz ip Camera,High Speed Mini Wifi Ptz Indoor Dome ip Camera 16x Mini Speed Dome Camera thumbnail-3
Dahua 1auto Tracking Dome Ptz ip Camera,High Speed Mini Wifi Ptz Indoor Dome ip Camera 16x Mini Speed Dome Camera thumbnail-4
Dahua 1auto Tracking Dome Ptz ip Camera,High Speed Mini Wifi Ptz Indoor Dome ip Camera 16x Mini Speed Dome Camera photo-1
Dahua 1auto Tracking Dome Ptz ip Camera,High Speed Mini Wifi Ptz Indoor Dome ip Camera 16x Mini Speed Dome Camera photo-2
Dahua 1auto Tracking Dome Ptz ip Camera,High Speed Mini Wifi Ptz Indoor Dome ip Camera 16x Mini Speed Dome Camera photo-3
Dahua 1auto Tracking Dome Ptz ip Camera,High Speed Mini Wifi Ptz Indoor Dome ip Camera 16x Mini Speed Dome Camera photo-4
US$ 1 - 110 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Dahua
Model Number:
SD22204T-GN
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Dahua
Model Number SD22204T-GN
Type IP Camera
Style Dome Camera
Sensor CMOS
Technology Pan / Tilt / Zoom
Special Features Waterproof / Weatherproof

Dahua 1auto tracking dome ptz ip camera,High speed Mini wifi ptz indoor dome ip camera 16x mini speed dome camera

To Know,To Trust,your reliable security partner!

Skype:nickyzhou688668

Email:nicky(at)

Whatsapp:0086 131 4599 7168

Best service for you~



SD22204T-GN

Features



>4x optical zoom
>H.264 & MJPEG Triple-streams encoding
>Max. 25/30fps@1080P(1920x1080) & 50/60fps@720P resolution
>WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 100°/s pan speed
>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, POE

Specifications:



ModelDH-SD22204T-GN
Camera
Image Sensor1/2.7” CMOS
Effective Pixels1920(H) x 1080(V), 2Megapixels
Scanning SystemProgressive
Electronic Shutter Speed1/1 ~ 1/30,000s
Min. IlluminationColor: 0.05LuxF1.6; B/W: 0.005LuxF1.6
S/N RatioMore than 55dB
Camera Features
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Privacy MaskingUp to 24 areas
Digital Zoom16x
Lens
Focal Length2.7mm~11mm(4x Optical zoom)
Max ApertureN/A
Focus ControlAuto / Manual
FOV-HH: 112.5° ~ 30°
PTZ
Pan/Tilt RangePan: 0° ~ 355°; Tilt: 0° ~ 90°, auto flip 180°
Manual Control SpeedPan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
Preset SpeedPan: 100° /s; Tilt: 60° /s
Preset300
PTZ Mode5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed SetupHuman-oriented focal length/ speed adaptation
Power up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Video
CompressionH.264 / MJPEG
Resolution1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF
(352×288/352×240)
Frame RateMain Stream1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)
Sub Stream 1D1/CIF(1 ~ 25/30fps)
Sub Stream 2720P/ D1/ CIF (1 ~ 25/30fps)
Bit RateH.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Intelligent Function
IVS (optional)Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection,
Face DetectionSupport
Network
EthernetRJ-45 (10/100Base-T)
ProtocolIPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
ONVIFONVIF Profile S
Max. User Access20 users
Smart PhoneiPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory SlotMicro SD, Max 128GB
General
Power SupplyDC12V, POE
Power Consumption10W
Working Environment-30ºC ~ 60ºC / Less than 90% RH
Ingress ProtectionIP66 & IK10
DimensionsΦ122 (mm) x 89 (mm)



 Dahua 1auto tracking dome ptz ip camera,High speed Mini wifi ptz indoor dome ip camera 16x mini speed dome camera



 Dahua 1auto tracking dome ptz ip camera,High speed Mini wifi ptz indoor dome ip camera 16x mini speed dome camera



dahua

Software:

Showroom:

Welcome to visit our company



1. Our Factory detail:

A. Raw Materials

Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...

B. Assembling

we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.

C. Aging Products

24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.

D. OEM&ODM

Customer LOGO can be printed on goods/color box/labels upon confirmed.

E. Quality Test

Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.

3. Exhibitions:

We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America,  IFSEC
in Britain, INTERSEC in Dubai, SST in Russia, SECUREX  in South Africa,  …



 FAQ:



1. Payment


What are the terms of payments you offer?

We accept payment via T/T, Paypal, West union etc

2. Shipment

(1)How long will it takes to deliver goods?

We will deliver your goods within 7-10 working days after an order confirmed

(2)What kind of packaging you offer?

We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.

(3)What kind of transportation methods you offer?

A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.

B. We also can deliver your goods by air and sea as your request.

3. Our Services

Warranty: We cover 2 Year warranty for all our products since shipment day.

For all your inquiries about our products, we will reply you in detail within 24 hours.
