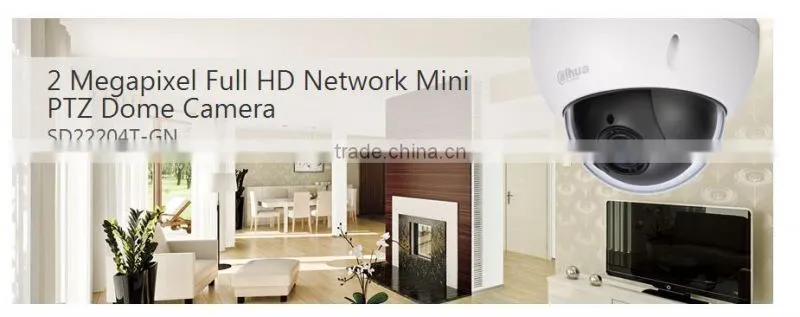

Dahua mini dome ptz camera,hd security camera system ip camera,ptz ip camera
- 10000 Unit / Units per Month
- SHENZHEN
- T/T L/C Credit Card
- 7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
- 7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
- 7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
- 7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
- Car Camera Wireless Transmitter System For Bus
- 7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Dahua | Model Number: | SD22204T-GN |
Type: | IP Camera | Style: | Dome Camera | Sensor: | CMOS |
Technology: | Pan / Tilt / Zoom | Special Features: | Waterproof / Weatherproof |
Product Description
Dahua mini dome ptz camera,hd security camera system ip camera,ptz ip camera
To Know,To Trust,your reliable security partner!
Skype:nickyzhou688668
Email:nicky(at)
Whatsapp:0086 131 4599 7168
Best service for you~
SD22204T-GN
Features
>4x optical zoom
>H.264 & MJPEG Triple-streams encoding
>Max. 25/30fps@1080P(1920x1080) & 50/60fps@720P resolution
>WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 100°/s pan speed
>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, POE
Specifications:
Model | DH-SD22204T-GN | |
Camera | ||
Image Sensor | 1/2.7” CMOS | |
Effective Pixels | 1920(H) x 1080(V), 2Megapixels | |
Scanning System | Progressive | |
Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
Min. Illumination | Color: 0.05LuxF1.6; B/W: 0.005LuxF1.6 | |
S/N Ratio | More than 55dB | |
Camera Features | ||
Day/Night | Auto(ICR) / Color / B/W | |
Backlight Compensation | BLC / HLC / WDR | |
White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
Gain Control | Auto / Manual | |
Noise Reduction | Ultra DNR (2D/3D) | |
Privacy Masking | Up to 24 areas | |
Digital Zoom | 16x | |
Lens | ||
Focal Length | 2.7mm~11mm(4x Optical zoom) | |
Max Aperture | N/A | |
Focus Control | Auto / Manual | |
FOV-H | H: 112.5° ~ 30° | |
PTZ | ||
Pan/Tilt Range | Pan: 0° ~ 355°; Tilt: 0° ~ 90°, auto flip 180° | |
Manual Control Speed | Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s | |
Preset Speed | Pan: 100° /s; Tilt: 60° /s | |
Preset | 300 | |
PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
Speed Setup | Human-oriented focal length/ speed adaptation | |
Power up Action | Auto restore to previous PTZ and lens status after power failure | |
Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
Video | ||
Compression | H.264 / MJPEG | |
Resolution | 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240) | |
Frame Rate | Main Stream | 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) |
Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
Sub Stream 2 | 720P/ D1/ CIF (1 ~ 25/30fps) | |
Bit Rate | H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps | |
Intelligent Function | ||
IVS (optional) | Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, | |
Face Detection | Support | |
Network | ||
Ethernet | RJ-45 (10/100Base-T) | |
Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | |
ONVIF | ONVIF Profile S | |
Max. User Access | 20 users | |
Smart Phone | iPhone, iPad, Android, Windows Phone | |
Auxiliary Interface | ||
Memory Slot | Micro SD, Max 128GB | |
General | ||
Power Supply | DC12V, POE | |
Power Consumption | 10W | |
Working Environment | -30ºC ~ 60ºC / Less than 90% RH | |
Ingress Protection | IP66 & IK10 | |
Dimensions | Φ122 (mm) x 89 (mm) |
Software:
Showroom:
Welcome to visit our company
1. Our Factory detail:
A. Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...
B. Assembling
we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.
C. Aging Products
24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.
D. OEM&ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
E. Quality Test
Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.
3. Exhibitions:
We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America, IFSEC
in Britain, INTERSEC in Dubai, SST in Russia, SECUREX in South Africa, …
FAQ:
1. Payment
What are the terms of payments you offer?
We accept payment via T/T, Paypal, West union etc
2. Shipment
(1)How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
(2)What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
(3)What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
3. Our Services
Warranty: We cover 2 Year warranty for all our products since shipment day.
For all your inquiries about our products, we will reply you in detail within 24 hours.
