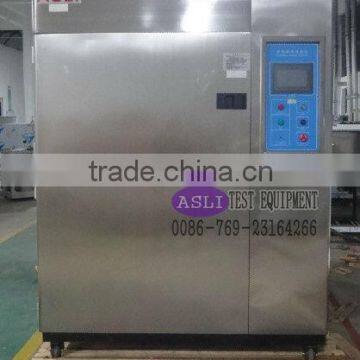

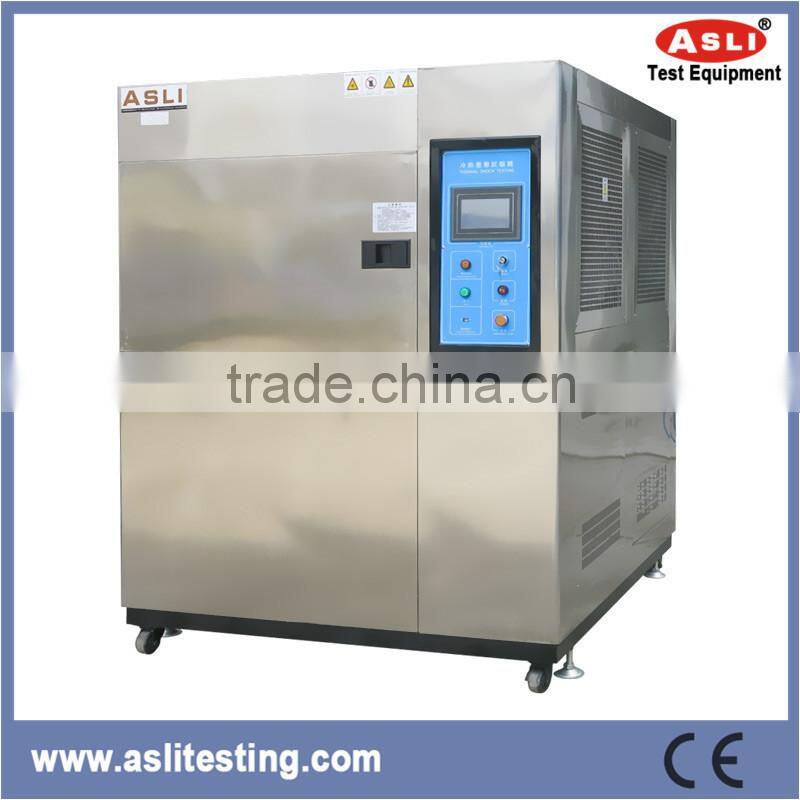

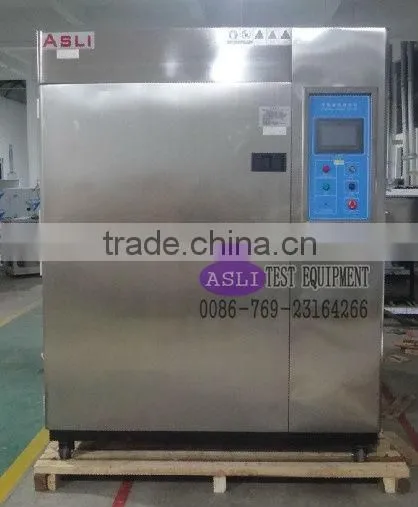

programmable thermal shock chamber(TS-80)
| Our company ASLi (China) Test Equipment Co., Ltd Established in 1988, which is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products. |
programmable thermal shock chamber(TS-80) is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.
programmable thermal shock chamber(TS-80) technical parameters:
Model | TS-42(A~C) | TS-80(A~C) | TS-150(A~C) | TS-252(A~C) | TS-450(A~C) | ||||
Internal Dimension WxHxD ( mm) | 400x350x350 | 500x400x400 | 600x500x500 | 700x600x600 | 800x750x750 | ||||
External Dimension WxHxD (mm) | 1400x1800x1400 | 1550x1950x1550 | 1600x2000x1700 | 1700x2100x1750 | 1800x2200x1900 | ||||
Temperature Range of Testing zone | Type A:-40 ℃~+150℃(200℃ is Optional) | Type B:-55℃ ~+150℃ (200℃ is Optional) | Type C:-65℃ ~+150℃ (200℃ is Optional) | ||||||
High temperature Range of Testing zone: +60℃~+150℃(200℃ is Optional); Low Temperature Range of Testing Zone: -10℃~-40℃/-55℃/-65℃ | |||||||||
Exposure Time of High/ Low Temperature | Exposure Time of High Temperature:+60℃~+150℃(200℃ is Optional) 30Mins | ||||||||
Exposure Time of Low Temperature:-10℃~Type A:-40℃/ Type B -50℃/ Type C -60℃ 30Mins | |||||||||
Temperature of Heat-Storing Slot/Heating Time | RT~200℃/About 45mins | ||||||||
Temperature of Cool-storing Slot/ Cooling Time | RT~-75℃/ About 100mins | ||||||||
Temperature Recovery Time/ Conversion Time | ≤5min/≤5sec | ||||||||
Control Accuracy / Distribution Uniformity | ±0.5℃/±2℃ | ||||||||
Internal and External Material | Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. | ||||||||
Insulation Material | High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials | ||||||||
Mechanics | P.I.D+S.S.R+ Micro-computer balanced temperature control system | ||||||||
Cooling System | Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type) | ||||||||
Security Protection Devices | Non-fuse breaker, high and low pressure protective switch of the compressor ,refrigerator high-pressure protective switch, failure warning system, electronic alarm | ||||||||
Accessories | viewing window(special order) | ||||||||
Compressor | French “Tecumseh” Brand, Germany Bizer Brand | ||||||||
Power | AC220V 50/60HZ, AC380V,50/60HZ | ||||||||
Weight (Approx) | 450 | 600 | 750 | 950 | 1200 | ||||
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
aftersale service: feedback within 8 hours after get the call or email.
service:OEM service,Design service,Buyer lable service.
