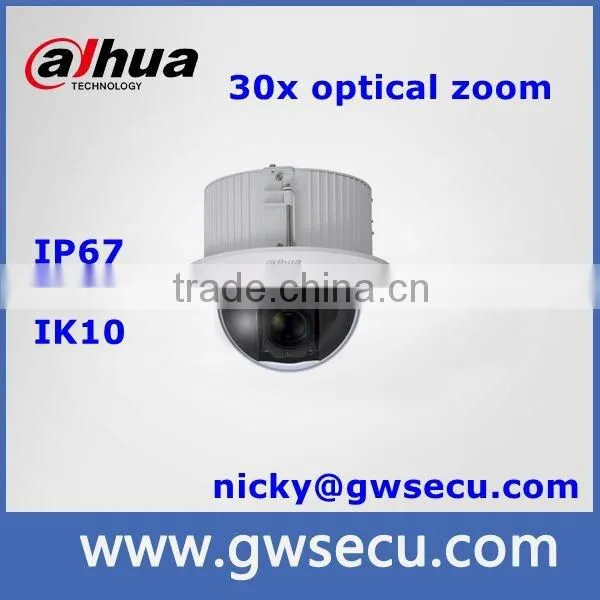

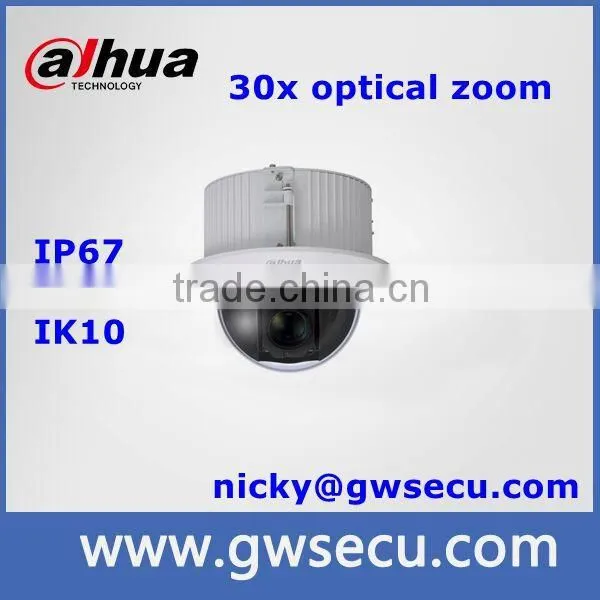

4MP ip67 waterproof HD cctv Dahua ip camera,high speed dome ptz ip camera
To Know,To Trust,your reliable security partner!
Skype:nickyzhou688668
Whatsapp:0086 131 4599 7168
Email:nicky(@)
Best service for you~
Features:
>30x optical zoom
> Support Triple-streams encoding
> Max. 25/30fps @4M(2592×1520),50/60fps @3M/1080P resolution
> WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Max 500°/s pan speed, 360° endless pan rotation
> Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
> Built-in 2/1 alarm in/out
> Support intelligent 3D positioning with DH-SD protocol
> Micro SD memory, IK10
| Model | DH-SD52C430U-HN | |
| Camera | ||
| Image Sensor | 1/3” Color CMOS | |
| Effective Pixels | 2688(H) x 1520(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
| Min. Illumination | Color: 0.05LuxF1.6; B/W: 0.005LuxF1.6 | |
| S/N Ratio | More than 50dB | |
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / WDR (120dB) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | Ultra DNR (2D/3D) | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 4.5mm ~ 135.0mm (30x Optical zoom) | |
| Max Aperture | F1.6 ~ F4.4 | |
| Focus Control | Auto / Manual | |
| FOV-H | H: 60° ~ 2.2° | |
| Close Focus Distance | 10mm~ 1500mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s | |
| Preset Speed | Pan: 500° /s; Tilt: 500° /s | |
| Preset | 300(DH-SD) | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Protocol | DH-SD(Auto recognition) | |
| Video | ||
| Compression | H.265 /H.264 / MJPEG | |
| Resolution | 4M(2592×1520)/3M(2304×1296)/1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240) |
|
| Frame Rate | Main Stream | 4M/3M(1~25/30fps)/1080P(1~50/60fps)/1.3M/720P(1~25/30fps) |
| Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
| Sub Stream 2 | 1080P /960P/720P(1 ~ 25/30fps) | |
| Bit Rate | H.265/H.264: 192K ~ 8192Kbps, MJPEG: 192K ~ 2048Kbps | |
| Audio | ||
| Compression | G.711a / G.711Mu(32kbps)/ PCM(128kbps) | |
| Interface | 1/1 channel In/Out | |
| Intelligent Function | ||
| IVS (optional) | Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection | |
| Face Detection | Support | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, | |
| Compatibility | ONVIF PSIA CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 128GB | |
| Alarm | 2/1 channel In/Out | |
| General | ||
| Power Supply | AC24V/1.5A (±10%), POE plus (802.3at) | |
| Power Consumption | 13W | |
| Working Environment | -20ºC ~ 60ºC / Less than 90% RH | |
| Ingress Protection | IP67(Outdoor), IK10 | |
| Dimensions | Φ198(mm) x 177(mm) | |
| Weight | 2.2Kg | |
