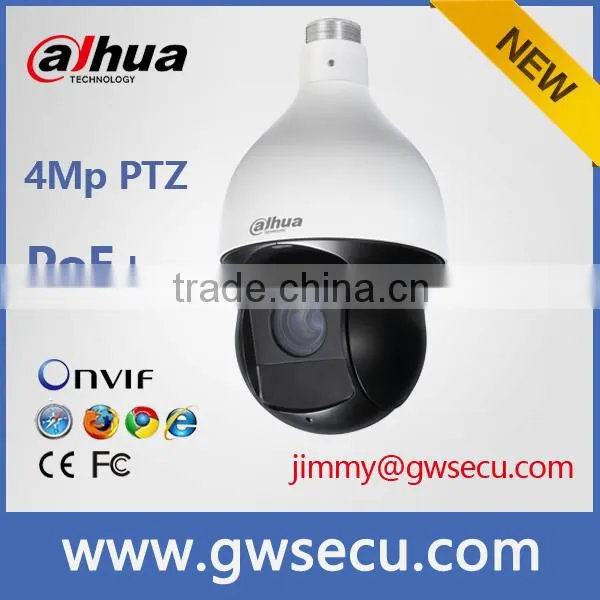

SD59430U-HN
4 Megapixel Full HD 30x WDR Ultra high Speed IR Network PTZ Dome Camera
General Features:
30x optical zoom
Support Triple-streams encoding
Max. 25/30fps @4M(2592×1520),50/60fps @3M/1080P resolution
WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Max 500°/s pan speed, 360° endless pan rotation
Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
Built-in 2/1 alarm in/out
Support intelligent 3D positioning with DH-SD protocol
Micro SD memory, IP66; IR Distance up to 100m
| Model | DH-SD59430U-HN | |
| Camera | ||
| Image Sensor | 1/3” Color CMOS | |
| Effective Pixels | 2688(H) x 1520(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
| Min. Illumination | Color: 0.05Lux F1.6; B/W: 0.005Lux F1.6 | |
| S/N Ratio | More than 50dB | |
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
| IR Distance | 100m | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / WDR (120dB) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | Ultra DNR (2D/3D) | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 4.5mm ~ 135.0mm (30x Optical zoom) | |
| Max Aperture | F1.6 ~ F4.4 | |
| Focus Control | Auto / Manual | |
| FOV-H | H: 60° ~ 2.2° | |
| Close Focus Distance | 10mm~ 1500mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s | |
| Preset Speed | Pan: 500° /s; Tilt: 500° /s | |
| Preset | 300(DH-SD) | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Protocol | DH-SD(Auto recognition) | |
| Video | ||
| Compression | H.265 /H.264 / MJPEG | |
| Resolution | 4M(2592×1520)/3M(2304×1296)/1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF | |
| (352×288/352×240) | ||
| Frame Rate | Main Stream | 4M/3M(1~25/30fps)/1080P(1~50/60fps)/1.3M/720P(1~25/30fps) |
| Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
| Sub Stream 2 | 1080P /960P/720P(1 ~ 25/30fps) | |
| Bit Rate | H.265/H.264: 192K ~ 8192Kbps, MJPEG: 192K ~ 2048Kbps | |
| Audio | ||
| Compression | G.711a / G.711Mu(32kbps)/ PCM(128kbps) | |
| Interface | 1/1 channel In/Out | |
| Intelligent Function | ||
| IVS (optional) | Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection | |
| Face Detection | Support | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, | |
| Compatibility | ONVIF PSIA CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 128GB | |
| Alarm | 2/1 channel In/Out | |
| General | ||
| Power Supply | AC24V/1.5A (±10%), POE plus (802.3at) | |
| Power Consumption | Outdoor: 13W, 23W (Heater on) | |
| Working Environment | Outdoor: -40ºC ~ 60ºC / Less than 90% RH | |
| Ingress Protection | IP66 | |

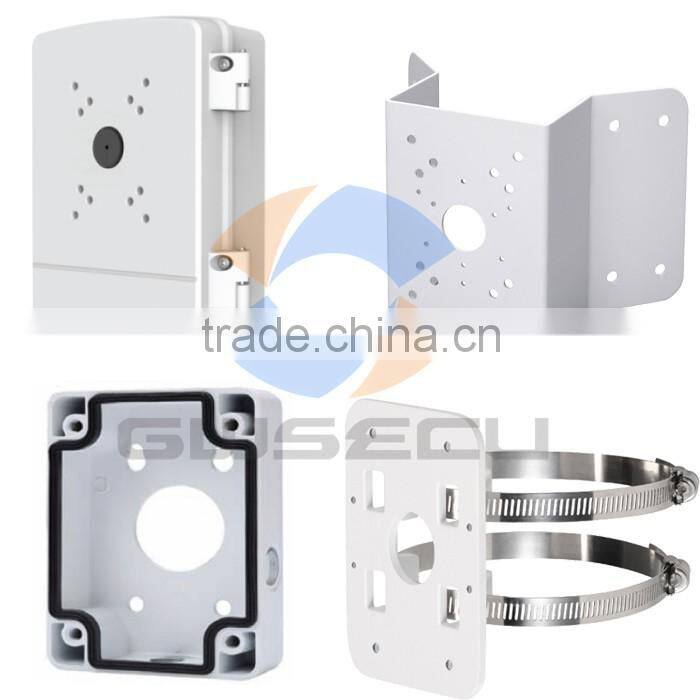

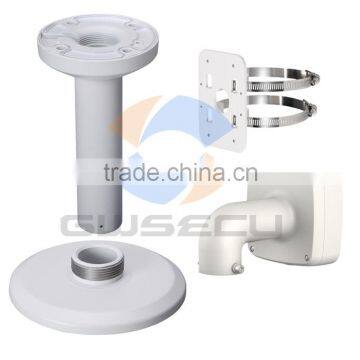

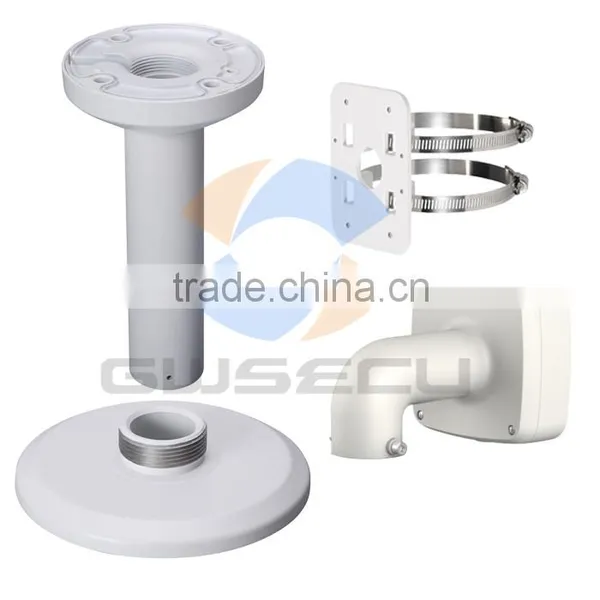

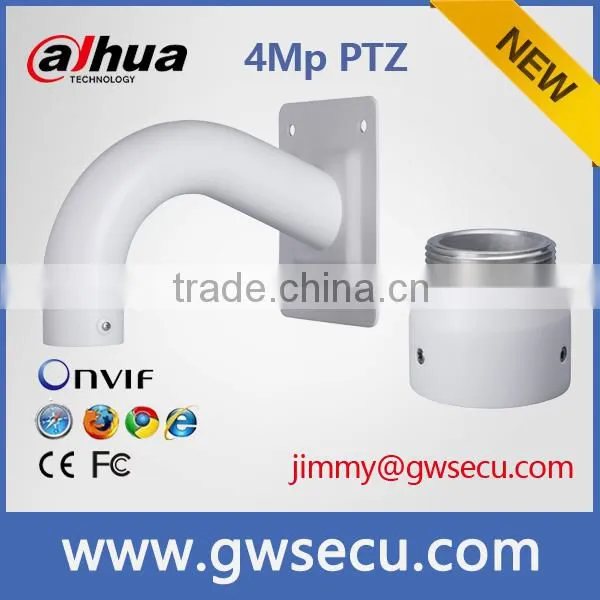

Optional Accessories:
| Model | Unit N/W (KG) | Unit Package (CM) | Carton Package (CM) | Carton N/W (KG) | Units per Carton (pcs) |
SD59430U-HN Series | 10.3 kg | 51*41*41 cm | 80*40*42 cm | 9.8 kg | 20.3 pcs |
Why choose GWSecu?
GWSecu had passed ISO9001 quality management system authentication and all products have been successfully certificated by CE, FCC, ROHS.
We have online English technician team to support customers!
We're reliable CCTV manufacturer started 2001.

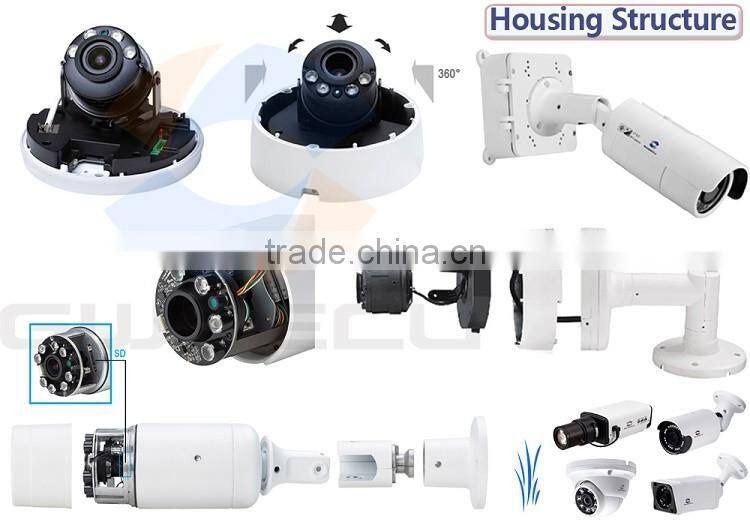

GWSecu Camera Special heat-dissipate structure:
(Enabled cameras 7*24 stable performance)
A. Special hardware structure
As a factory devoted ourselves into quality and stable cctv products, GWSecu special heat-dissipate structrue was famous and well commended by customers and partners.
B. Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...

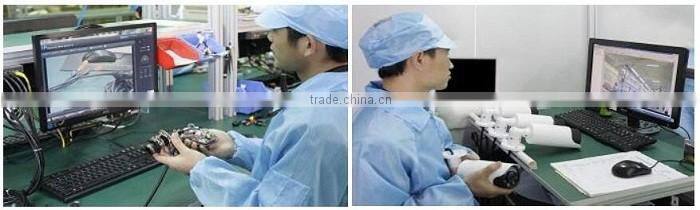

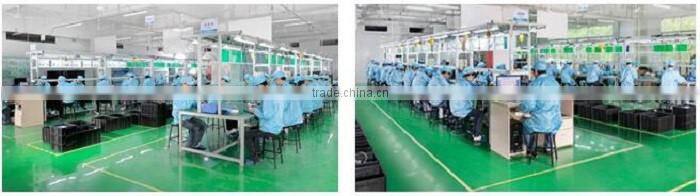

C. Assembling
As a professional HD IP Camera Manufacturer in China, we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean. We also have all kinds of production and inspection equipment to maximize high-efficient production capacity while ensuring product quality.

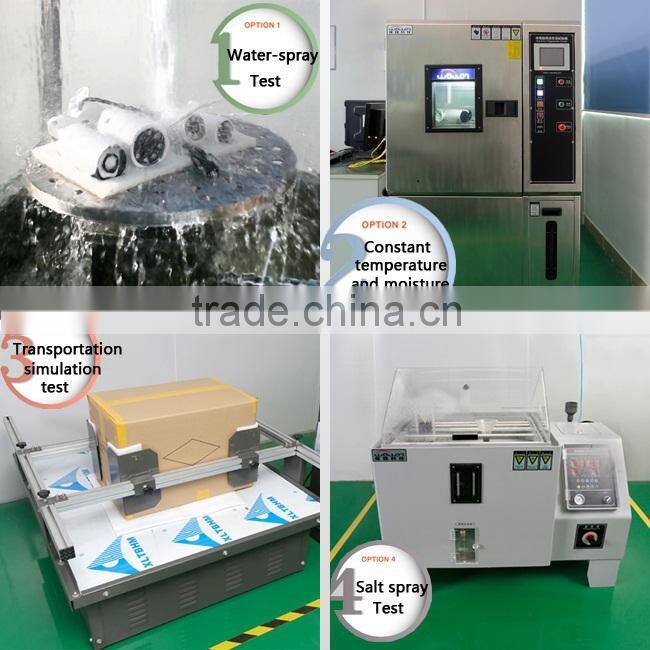

D. Quality Test
GWSECU adhering to the "quality first" principle. We provide superior products and services to our clients. Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test.
E. OEM & ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
We attend worldwide exhibitions in Dubai, Las Vegas, Moscow, London, Germany, Thailand, South Africa. "Honest" and "Sincerity" is the principle we serve the customers.
We provide 2 years warranty.
OEM service: Silk-print with brand, IE Browser Login, WEB GUI page, local CMS software with customize brand.
FAQ.
1. Payment
What are the terms of payments you offer?
We accept payment via T/T, Paypal, Westunion etc
2. Shipment
How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
