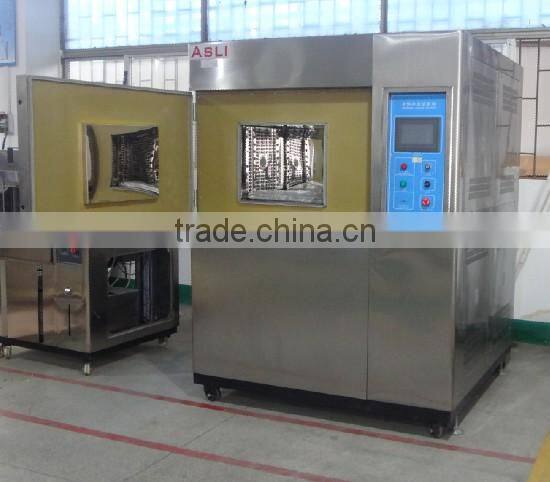

Programmable Cold Chambers

Model

 TS-42(A~C)

TS-80(A~C)

TS-150(A~C)

TS-252(A~C)

TS-450(A~C)

Internal Dimension WxHxD (mm)

400x350x350

500x400x400

600x500x500

700x600x600

800x750x750

External Dimension WxHxD (mm)

1400x1800x1400

1550x1950x1550

1600x2000x1700

1700x2100x1750

1800x2200x1900

Temperature Range of Testing zone

Type A:-40 ºC~+150ºC

(200ºC is Optional)

Type B:-55ºC ~+150ºC

(200ºC is Optional)

Type C:-65ºC ~+150ºC(200ºC is Optional)

High temperature Range of Testing zone: +60~+150ºC (200ºC is Optional);
Low Temperature Range of Testing Zone: -10ºC~-40ºC/-55ºC/-65ºC

Exposure Time of High / Low Temperature

Exposure Time of High Temperature:+60ºC~+150ºC(200ºC is Optional) 30Mins

Exposure Time of Low Temperature:-10ºC~Type B:-40ºC/ Type B -55ºC/ Type C -65ºC  30Mins

Temperature of Heat-Storing Slot / Heating Time

RT~200ºC/About  45mins

Temperature of Cool- storing Slot / Cooling Time

RT~-75ºC/ About 100mins

Temperature Recovery Time / Conversion Time

≤5min/≤5sec

Precision Temperature Control / Distribution Accuracy

±0.5ºC/±2ºC

Internal and External Material

Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated

Insulation Material

High temperature  resistant, high density, formate chlorine, ethyl acetum foam insulation materials

Mechanics

P.I.D+S.S.R+ Micro-computer balanced temperature control system

Cooling System

Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type)

Security Protection Devices

Non-fuse breaker, high and low pressure protective switch of the compressor ,refrigerator high-pressure protective switch, failure warning system, electronic alarm

Accessories

viewing window(special order)

Compressor

 French Tecumseh Brand, German Bizer Brand

Power

AC220V 1 ø  3 lines,50/60HZ, AC380V 3ø 5 lines,50/60HZ

Weight (Approx)

450

600

750

950

1200
