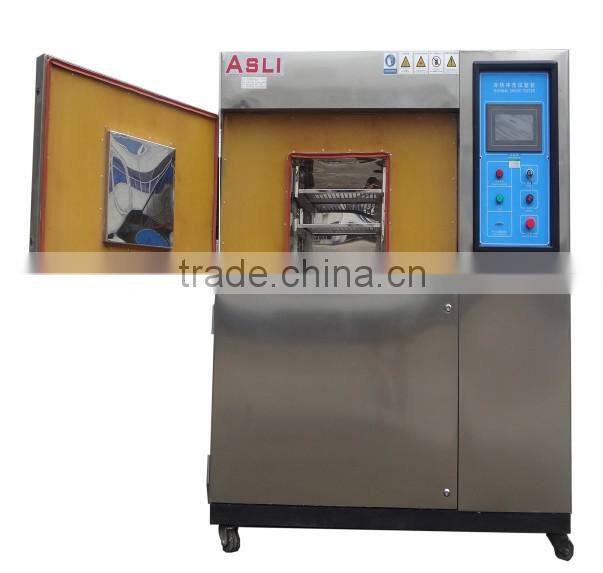

Water cooling Vertical Thermal Shock Test Chamber application:
Customized 3Zones Vertical Thermal Shock Test Chamber is used to test the withstand capacity to the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials for product improvement.
features:
1.3 zones design: high temperature, low temperature, and testing area,The test sample is in static mode.
2.Using touch-control graph control as operation interface, easy to operate.
3 .Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, maximum time is up to 999H, and maximum circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect,water cooled.
7.RS-232 and RS-485 communication
technical parameters:
Model | TS-42(A~C) | TS-80(A~C) | TS-150(A~C) | TS-252(A~C) | TS-450(A~C) | ||||
Internal Dimension WxHxD ( mm) | 400x350x350 | 500x400x400 | 600x500x500 | 700x600x600 | 800x750x750 | ||||
External Dimension WxHxD (mm) | 1400x1800x1400 | 1550x1950x1550 | 1600x2000x1700 | 1700x2100x1750 | 1800x2200x1900 | ||||
Temperature Range of Testing zone | Type A:-40 °C~+150°C
| Type B:-55°C ~+150°C (200°C is Optional) | Type C:-65°C ~+150°C (200°C is Optional) | ||||||
High temperature Range of Testing zone: +60°C~+150°C(200°C is optional); Low Temp. Range of Testing Zone: -10°C~-40°C/-55°C/-65°C | |||||||||
Exposure Time of High/Low Temperature | Exposure Time of High Temperature:+60°C~+150°C(200°C is Optional) 30Mins | ||||||||
Exposure Time of Low Temperature:-10°C~Type B:-40°C/ Type B -55°C/ Type C -65°C 30Mins | |||||||||
Temperature of Heat-Storing Slot/Heating Time | RT~200°C/About 45mins | ||||||||
Temperature of Cool-storing Slot/Cooling Time | RT~-75°C/ About 100mins | ||||||||
Temperature Recovery Time/ Conversion Time | ≤5min/≤5sec | ||||||||
Control Accuracy / Distribution Uniformity | ±0.5°C/±2°C | ||||||||
Internal and External Material | Interior material is SUS 304# stainless steel,exterior is stainless steel or SEE cold-rolled steel with paint coated. | ||||||||
Insulation Material | High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials | ||||||||
Mechanics | P.I.D+S.S.R+ Micro-computer balanced temperature control system | ||||||||
Cooling System | Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type) | ||||||||
Security Protection Devices | Non-fuse breaker, high and low pressure protective switch of the compressor ,refrigerator high-pressure protective switch, failure warning system, electronic alarm | ||||||||
Accessories | viewing window(Optional) | ||||||||
Compressor | French Tecumseh , Germany Bizer | ||||||||
Power | AC220V 50/60HZ, AC380V 50/60HZ | ||||||||
Weight (Approx) | 450 | 600 | 750 | 950 | 1200 | ||||
