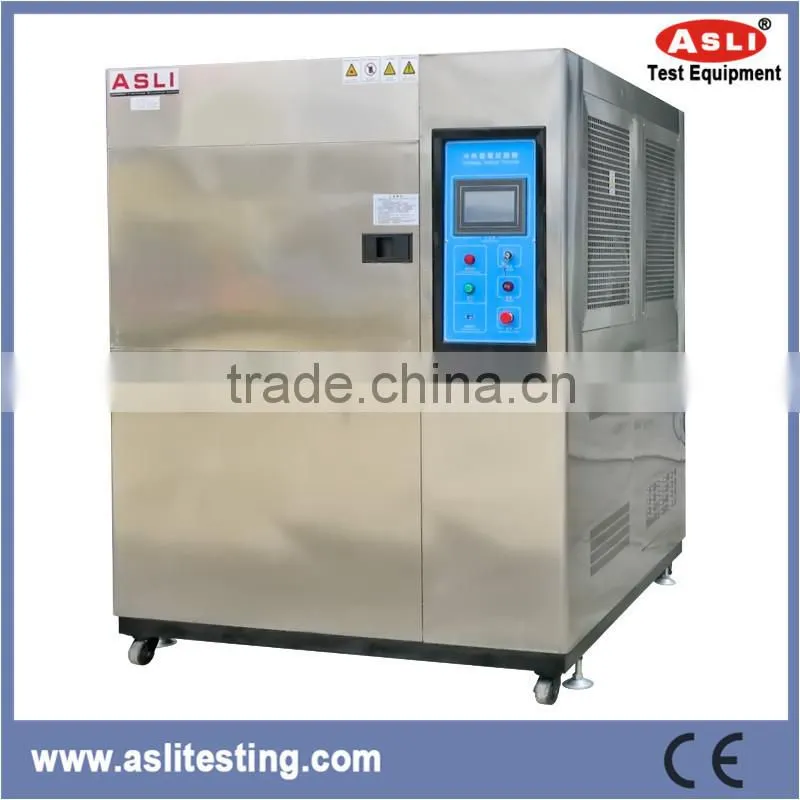

Thermal Shock Test Oven manufacturer
application:
Customized Programmable Thermal Shock Tester is use to test the bearing capacity to the continuous environmental changes between extremely high temperature and low temperature during a short period.The test result can be used as a reference or basis for product improvement.
Thermal Shock Test Oven manufacturer / features:
1. Divided into three zones: high temperature zone, low temperature zone, and the testing zone,
2. Touch graph controlled operation interface for ease of use
3. Wind route conversation to distribute temperature to the testing zone for cold and thermal shock
4.For high or low temperature shock, max. time is up to 999H, and max.circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect.
7.RS-232 and RS-485 communication
Thermal Shock Test Oven / technical parameters:
Model |
TS-42(A~C) |
TS-80(A~C) |
TS-150(A~C) |
TS-252(A~C) |
TS-450(A~C) |
||||
|
Interior Dimension WxHxD ( mm) |
400x350x350 |
500x400x400 |
600x500x500 |
700x600x600 |
800x750x750 |
||||
|
Exterior Dimension WxHxD (mm) |
1400x1800x1400 |
1550x1950x1550 |
1600x2000x1700 |
1700x2100x1750 |
1800x2200x1900 |
||||
Temperature Range of Testing zone |
Type A:-40 °C~+150°C(200°C is Optional) |
Type B:-55°C ~+150°C (200°C is Optional) |
Type C:-65°C ~+150°C (200°C is Optional) |
||||||
|
High temperature Range of Testing zone: +60°C~+150°C(200°C is optional); Low Temp. Range of Testing Zone: -10°C~-40°C/-55°C/-65°C | |||||||||
Exposure Time of High / Low Temperature |
Exposure Time of High Temperature:+60°C~+150°C(200°C is Optional),30Mins |
||||||||
Exposure Time of Low Temperature:-10°C~Type B:-40°C/ Type B -55°C/ Type C -65°C,30Mins | |||||||||
Temperature of Heat-Storing Slot / Heating Time |
RT~200°C/About 45mins |
||||||||
Temperature of Cool-storing Slot / Cooling Time |
RT~-75°C/ About 100mins |
||||||||
|
Temperature Recovery Time/Conversion Time |
≤5min/≤5sec |
||||||||
Control Accuracy / Distribution Uniformity |
±0.5°C/±2°C |
||||||||
|
Interior and Exterior Material |
Interior material is SUS 304# stainless steel,exterior is stainless steel or see cold-rolled steel with paint coated |
||||||||
Insulation Material |
High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials |
||||||||
Mechanics |
P.I.D+S.S.R+ Micro-computer balanced temperature control system |
||||||||
Cooling System |
Semi-hermetic double-stage compressor(water-cooled type) Hermetic double-stage compressor (air-cooled type) |
||||||||
|
Security Protection Devices |
Non-fuse breaker, high and low pressure protective switch of the compressor ,refrigerator high-pressure protective switch, failure warning system, electronic alarm |
||||||||
Accessories |
viewing window (Optional) |
||||||||
Compressor |
French Tecumseh , Germany Bizer |
||||||||
Power |
AC220V AC380V |
||||||||

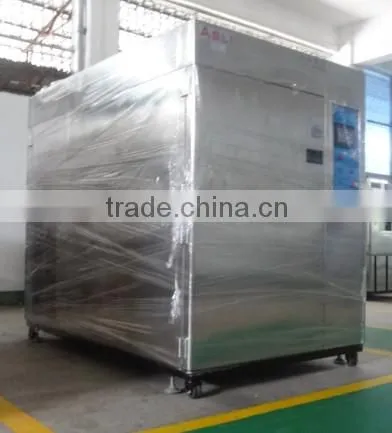

Thermal Shock Test Oven manufacturer pictures:
