Thermal shock test chamber/cold hot impact tester
ASLI , as a leading Thermal shock test chamber/cold hot impact tester supplier from china, has more than 25 year’s experience in Thermal shock test chamber/cold hot impact tester manufacture. ASLI boost his own technical team in Thermal shock test chamber/cold hot impact tester R&D, and it also introduces the advance quality control method in thermal stress system production. Our series products are in compliance with the industrial standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
1) Thermal shock test chamber/cold hot impact tester Technical Parameters:
Model |
TS-42(A~C) |
TS-80(A~C) |
TS-150(A~C) |
TS-252(A~C) |
TS-450(A~C) |
|||||||
|
Internal Dimension WxHxD ( mm) |
400x350x350 |
500x400x400 |
600x500x500 |
700x600x600 |
800x750x750 |
|||||||
|
External Dimension WxHxD (mm) |
1400x1800x1400 |
1550x1950x1550 |
1600x2000x1700 |
1700x2100x1750 |
1800x2200x1900 |
|||||||
|
Temperature Range of Testing zone |
Type A:-40 ºC~+150ºC(200ºC is Optional) |
Type B:-55ºC ~+150ºC (200ºC is Optional) |
Type C:-65ºC ~+150ºC(200ºC is Optional) |
|||||||||
|
High temperature Range of Testing zone: +60~+150ºC (200ºC is Optional); Low Temperature Range of Testing Zone: -10ºC~-40ºC/-55ºC/-65ºC | ||||||||||||
|
Exposure Time of High /Low Temperature |
Exposure Time of High Temperature:+60ºC~+150ºC(200ºC is Optional) 30Mins |
|||||||||||
Exposure Time of Low Temperature:-10ºC~Type B:-40ºC/ Type B -55ºC/ Type C -65ºC 30Mins |
||||||||||||
|
Temperature of Heat-Storing Slot /Heating Time |
RT~200ºC/About 45mins |
|||||||||||
|
Temperature of Cool- storing Slot/Cooling Time |
RT~-75ºC/ About 100mins |
|||||||||||
|
Temperature Recovery Time/ Conversion Time |
≤5min/≤5sec |
|||||||||||
|
Precision Temperature Control / Distribution Accuracy |
±0.5ºC/±2ºC |
|||||||||||
|
Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
|||||||||||
Insulation Material |
High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials |
|||||||||||
Mechanics |
P.I.D+S.S.R+ Micro-computer balanced temperature control system |
|||||||||||
Cooling System |
Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type) |
|||||||||||
|
Security Protection Devices |
Non-fuse breaker, high and low pressure protective switch of the compressor ,refrigerator high-pressure protective switch, failure warning system, electronic alarm |
|||||||||||
Accessories |
viewing window(special order) |
|||||||||||
Compressor |
French Tecumseh Brand, German Bizer Brand |
|||||||||||
Power |
AC220V 1 ø 3 lines,50/60HZ, AC380V 3ø 5 lines,50/60HZ |
|||||||||||
Weight (Approx) |
450 |
600 |
750 |
950 |
1200 |
|||||||
2) Thermal shock test chamber/cold hot impact tester Features:
1.Temperature shock test chamber is divided into three boxes: high temperature, low temperature, and the testing area,
testing products placed on the testing area; when testing, the valve , which drove by cylinder,lead the high temperature
or low temperatures into the testing area. The test sample is in static mode.
2.Using touch-ontrol graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal
shock measurement.
4.For high temperature shock or low temperature shock, maximum time is up to 999H, and maximum circulation cycles
are 9999 times.
5.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
6.Can entering normal temperature. RS-232 and RS-485 communication interface.

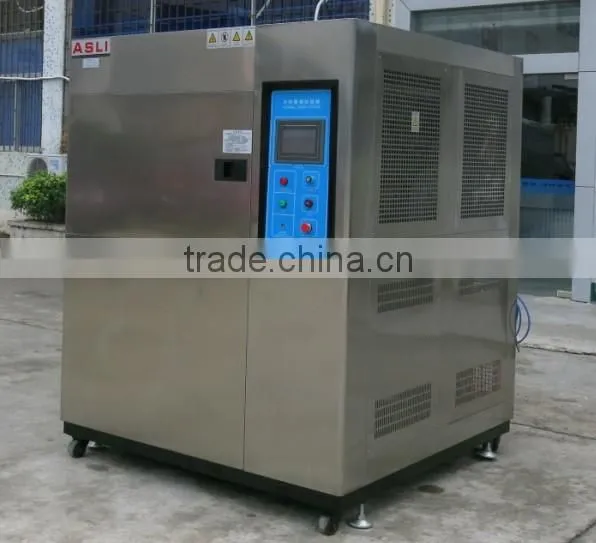

3) Thermal shock test chamber/cold hot impact tester Pictures (for reference only)
