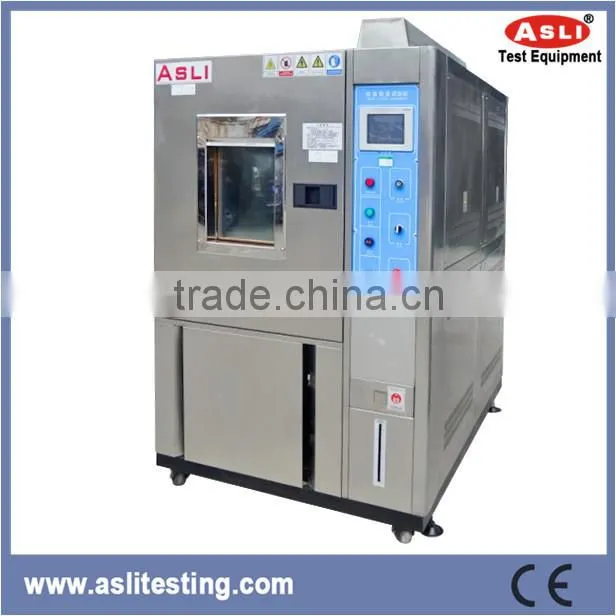

Simulated extreme low temperature chamber
25 YZ manufacturer
OEM available
High cost-effective
CE Marked Equipment
SGS tested SUS#304 stainless steel
Simulated extreme low temperature chamber Application:
Programmable high low temperature chamberis a special testing chamber used for various types of materials for their tolerance of heat,cold ,dry, humidity.It is applied for quality inspection for all types of electronic products, electric appliance and products of communication,instrument,automobile,plastic,metal,food ,
chemical,building materials ,medical and aerospace industries.
High low Temperature Chamber Features:
1. ASLI brand high low temperature chamber has Graceful appearance, circularly shaped body, surface treated with mist strips . Easy to operate, safe and reliable.
2. ASLI brand high low temperature chamber has Rectangular double-paned viewing window for viewing sample under test, with interior light
3. ASLI brand high low temperature chamber has Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. ASLI brand high low temperature chamber has Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. ASLI brand high low temperature chamber has French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6. ASLI brand high low temperature chamber has LCD display screen, capable of displaying the measured value as well as the set value and time.
7. ASLI brand high low temperature chamber has The control unit has the functions of multiples segment program editing, with quick or ramp rates control of temperature and humidity.
8. ASLI brand high low temperature chamber has Casters are provided for ease of mobility, with strong positioning screws.
4.Warranty: one year free warranty for whole set machine,lifelong time maintainance.
5.After-sale service: feedback within 2 hours after get the call.
Model |
TH-80(A~F) |
TH-150(A~F) |
TH-225(A~F) |
TH-408(A~F) |
TH-800(A~F) |
TH-1000(A~F) |
|
Internal Dimension WxHxD (mm) |
400x500x400 |
500x600x500 |
600x750x500 |
600x850x800 |
1000x1000x800 |
1000x1000x1000 |
|
Internal Dimension WxHxD (mm) |
950x1650 x950 |
1050x1750 x1050 |
1200x1900 x1150 |
1200x1950 x1350 |
1600x2000 x1450 |
1600x2100x1450 |
Temperature Range |
Low Temperature(A:25degree B:0degree C:-20degree D:-40degree E:-60degree F:-70degree) High Temperature 150degree |
|||||
Humidity Range |
20%~98%relative humidity(10%-98% relative humidity / 5%-98% R.H ,is a special optional condition, need Dehumidifier) |
|||||
|
Analytic Accuracy/ Distribution uniformity of temperature and humidity |
0.1degree; 0.1% R.H/±2.0degree; ±3.0% relative humidity |
|||||
|
Control Accuracy of Temperature and Humidity |
±0.5degree; ±2.5% relative humidity |
|||||
|
Temperature Rising /Falling Speed Rate |
Temperature rising approx. 0.1~3.0degree/min / temperature falling approx. 0.1~1.5degree /min; ( The Falling Speed Rate Min.1.5degreeper minute is a special optional condition) |
|||||
|
Inner and Outer Material |
Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
|||||
Insulation Material |
Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
|||||
Cooling System |
Wind cooling or water cooling/single segment compressor(-40degree, double segment compressor -70degree) |
|||||
Protection Devices |
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
|||||
Optional Accessories |
Inner door with operation hole , Recorder, Water Purifier, Dehumidifier |
|||||
Compressor |
French Tecumseh Brand,Germany Bizer Brand |
|||||
Power |
AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ |
|||||
Approx. Weight (Kg) |
150 |
180 |
250 |
320 |
400 |
450 |

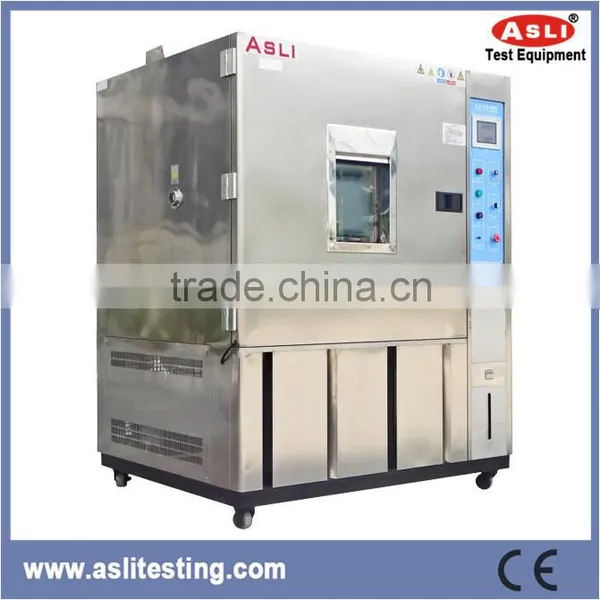

6.More pictures for Temperature Chamber:
