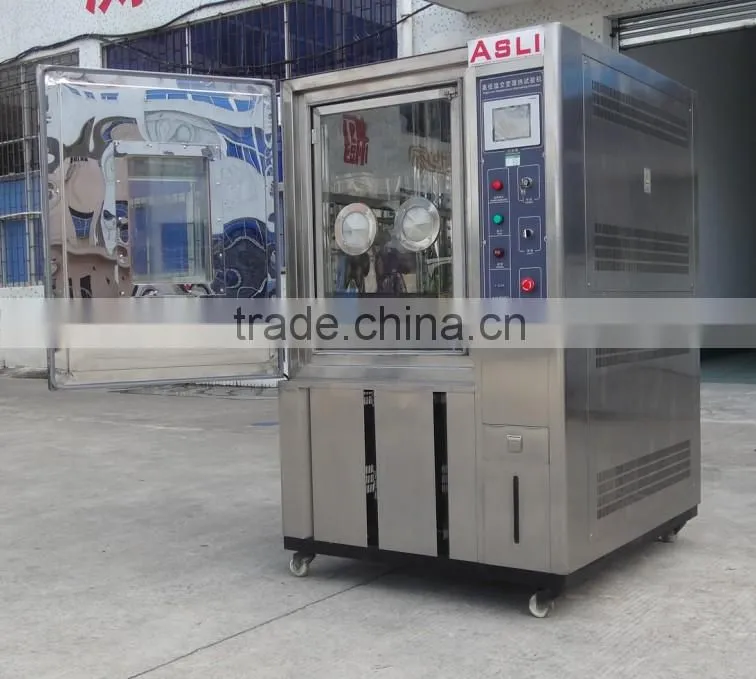

Constant Temperature Humidity Cabinets application:
Constant Temperature Humidity Cabinets is also called environmental testing machine, used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Constant Temperature Humidity Cabinets features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of product under test.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh is used as compressor, with environmental friendly refrigeration R404A.
6. LCD display screen, capable of displaying the measured value as well as the set value.
7. Control unit has the functions of multiples segment program editing, and of temperature & humidity ramp rates control
8. Casters for ease of mobility
Constant Temperature Humidity Cabinets technical parameters:
Model |
TH-80(A~F) |
TH-150(A~F) |
TH-225(A~F) |
TH-408(A~F) |
TH-800(A~F) |
TH-1000(A~F) |
|
Internal Dimension WxHxD (mm) |
400x500x400 |
500x600x500 |
600x750x500 |
600x850x800 |
1000x1000x800 |
1000x1000x1000 |
|
Internal Dimension WxHxD (mm) |
950x1650x950 |
1050x1750x1050 |
1200x1900x1150 |
1200x1950x1350 |
1600x2000x1450 |
1600x2100x1450 |
Temperature Range |
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C),High Temperature 150°C |
|||||
Humidity Range |
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H.,is a special optional condition, need Dehumidifier) |
|||||
|
Indication Resolution/ Distribution Uniformity of temperature and humidity |
0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H. |
|||||
|
Control Accuracy of Temperature and Humidity |
±0.5°C; ±2.5% R.H. |
|||||
|
Temperature Rising /Falling Velocity |
Temperature rising approx. 0.1~3.0°C/min;temperature falling approx. 0.1~1.5°C/min; ( The Falling Speed Rate Min.1.5°C per minute is a special optional condition) |
|||||
|
Inner and Outer Material |
Material of the inner chamber is SUS 304# stainless steel, of the outer is stainless steel or SEE cold-rolled steel with paint coated. |
|||||
Insulation Material |
Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
|||||
Cooling System |
Wind cooledor water cooled; single segment compressor for -40°C, double segment compressor for -70°C |
|||||
Protection Devices |
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
|||||
Optional Accessories |
Inner door with operation hole , Recorder, Water Purifier, Dehumidifier |
|||||
Compressor |
French Tecumseh, Germany Bizer |
|||||
Power |
AC220V 50/60HZ , AC380V 50/60HZ |
|||||
Weight (Kg) |
150 |
180 |
250 |
320 |
400 |
450 |
