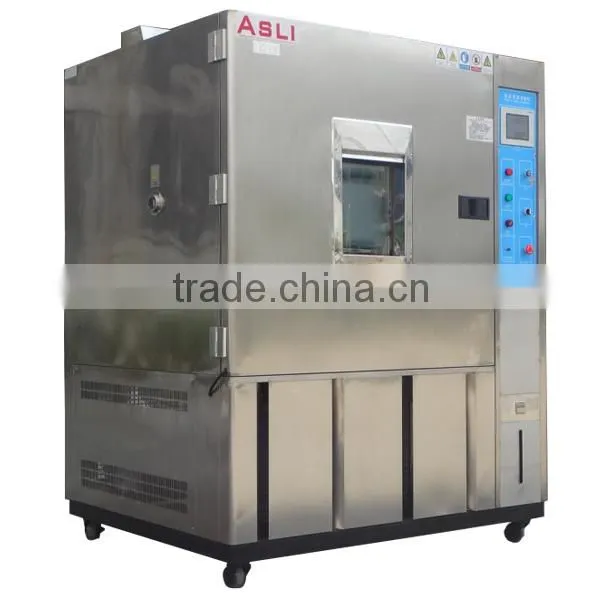

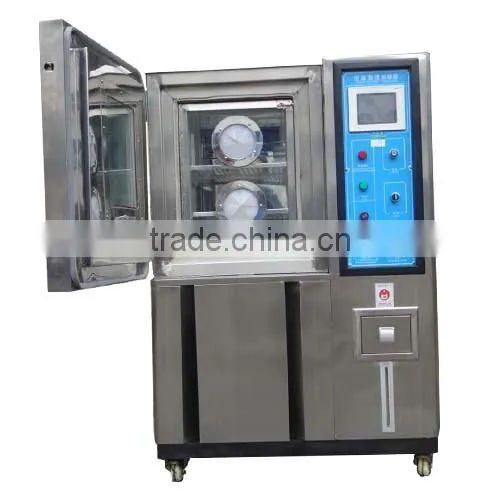

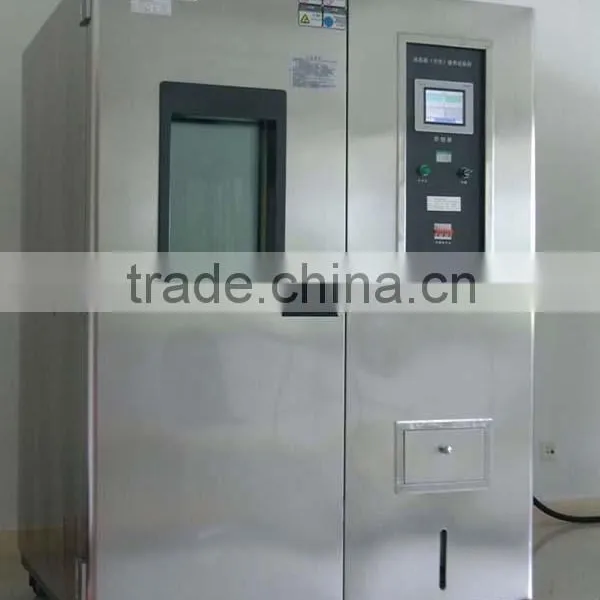

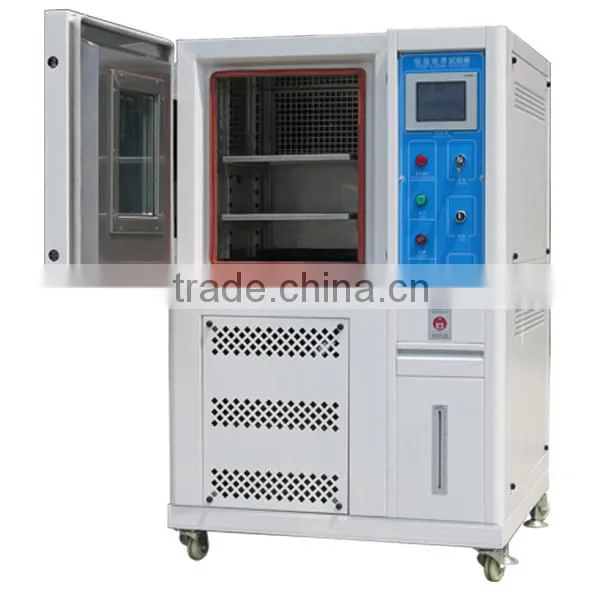

Programmable Constant Temperature Humidity Test Chamber
Programmable Constant Temperature Humidity Test Chamber Application:
It is also called environment testing machine, used to test various types of materials for their tolerances of heat, cold,
dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from
communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace
industries.
Programmable Constant Temperature Humidity Test Chamber Features:
1.Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction.
Easy to operate, safe and reliable.
2.Rectangular double-paned viewing window for the observation of sample under test with interior lights
3.Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4.Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and
automatically recyclable.
5.French Tecumseh is used as the compressor, with environment friendly refrigerants R23, R404A
6.LCD display screen, capable of displaying set point and actual value at the same time.
7.The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature
and humidity.
8.Casters are provided for ease of mobility, with strong positioning screws.
Programmable Constant Temperature Humidity Test Chamber Technical Parameters:
Model |
TH-80(A~F) |
TH-150(A~F) |
TH-225(A~F) |
TH-408(A~F) |
TH-800(A~F) |
|
Internal Dimension WxHxD (mm) |
400x500x400 |
500x600x500 |
600x750x500 |
600x850x800 |
1000x1000x800 |
|
Internal Dimension WxHxD (mm) |
950x1650x950 |
1050x1750x1050 |
1200x1900x1150 |
1200x1950x1350 |
1600x2000x1450 |
Temperature Range |
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 150°C |
||||
Humidity Range |
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H.,is optional, need Dehumidifier) |
||||
|
Indication Resolution/ Distribution Uniformity of temperature and humidity |
0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H. |
||||
|
Control Accuracy of Temperature and Humidity |
±0.5°C; ±2.5% R.H. |
||||
|
Temperature Rising /Falling Velocity |
Temperature rising approx. 0.1~3.0°C/min;temperature falling approx. 0.1~1.5°C/min; ( The Falling Speed Rate Min.1.5°C/min is optional ) |
||||
|
Inner and Outer Material |
Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
||||
Insulation Material |
Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
||||
Cooling System |
Wind cooled or water cooled; single segment compressor for -40°C, double segment compressor for -70°C |
||||
Protection Devices |
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
||||
Optional Accessories |
Inner door with operation hole , Recorder, Water Purifier, Dehumidifier |
||||
Compressor |
French Tecumseh Brand, Germany Bizer Brand |
||||
Power |
AC220V 50/60HZ , AC380V 50/60HZ |
||||
Weight (Kg) |
150 |
180 |
250 |
320 |
400 |
