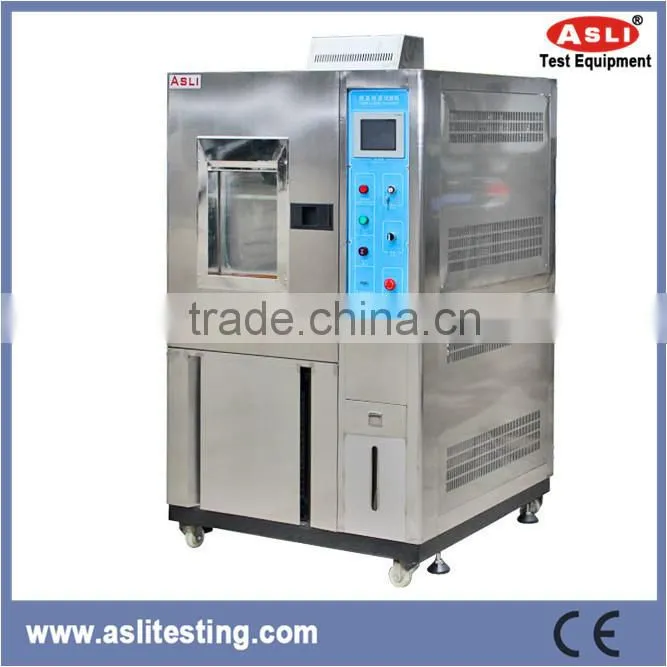

Humidity oven manufacturer
25 YZ manufacturer
OEM available
High cost-effective
CE Marked Equipment
SGS tested SUS#304 stainless steel
Application:
High low Temperature Cycling Test Machine is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
humidity oven manufacturer / features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of the products under test with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment-protecting coolant is used for the whole series(R23,R404A)
6. LCD display screen
7. The control unit has the functions of multiples segment program editing, and of quick temperature ramp rates control.
8. Caster for ease of mobility, with strong positioning screws.
humidity oven / technical parameters:
Model |
HL-80(A~F) |
HL -150(A~F) |
HL -225(A~F) |
HL -408(A~F) |
HL -800(A~F) |
HL -1000(A~F) |
|||||
|
Internal Dimensions WxHxD (mm) |
400x500x400 |
500x600x500 |
600x750x500 |
600x850x800 |
1000x1000x800 |
1000x1000x1000 |
|||||
|
External Dimensions WxHxD (mm) |
950x1650x950 |
1050x1750x1050 |
1200x1900x1150 |
1200x1950x1350 |
1600x2000x1450 |
1600x2100x1450 |
|||||
Temperature Range |
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C)High Temperature 150°C |
||||||||||
Indication Resolution / Distribution Uniformity of Temperature |
0.1°C /±2.0°C |
||||||||||
|
Control Accuracy of Temperature |
±0.5°C |
||||||||||
Temperature Rising / Falling Velocity |
Rising approx. 0.1~3.0°C/min; falling approx. 0.1~1.5°C/min; ( Min.1.5°C/min is optional) |
||||||||||
|
Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated |
||||||||||
Insulation Material |
Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
||||||||||
Cooling System |
Wind cooling or water cooling; single segment compressor for -40°C, double segment compressor for-70°C |
||||||||||
Protection Devices |
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, Over-humidity and over-temperature protection switch, fuses, fault warning system |
||||||||||
Optional Accessories |
Inner door with operation hole(Optional), Recorder(optional),Dehumidifier |
||||||||||
Compressor |
French Tecumseh Brand, Germany Bizer Brand |
||||||||||
Power |
AC 220V 50/60HZ ; AC 380V 50/60HZ |
||||||||||
More pictures for humidity oven manufacturer:
