Environment Reaction Test Machine /Climate Chamber /Climate Test Chamber/ Environntal Test Chamber/
Programmable Temperature & Humidity Testing Machine
Environment Reaction Test Machine Features
1.This temperature and humidity test chabmer with graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular doubleglassed watching window for the observation of the test production during the testing process. The window is equippedwith sweatproof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3.Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4.Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5.The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment-protecting coolant isused for the whole series (R23,R404A)
6.Imported LCD display screen is used for the control unit, capable of displaying the measured value as well as the set value and time.
7.The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
Technical Parameters :
Model | F-TH-150(A~F) | F-TH-225(A~F) | F-TH-408(A~F) | F-TH-800(A~F) | F-TH-1000(A~F) | ||
Internal Dimension WxHxD( mm) | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000 | ||
Internal Dimension WxHxD (mm) | 1100x1750x1600 | 1200x1800x1700 | 1250x1900x1900 | 1600x2050x2150 | 1700x2200x2300 | ||
Range of Fast Temperature Change | Temperature Range: -70~+150ºC; Range of Fast Temperature Change: -45~+85ºC; Max. temperature rising/falling speed is 15ºC/min when the whole process with linear control . | ||||||
Humidity Range(Optional) | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition,need Dehumidifier) | ||||||
Analytic Accuracy/Distribution Uniformity of Temperature and Humidity | 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H. | ||||||
Control Accuracy ofTemperature and Humidity | ±0.5ºC; ±2.5% R.H. | ||||||
Temperature Rising/Falling Speed Rate | The Temperature Rising/Falling Speed Rate with linear control : 3~15ºC/min, adjustable The Temperature Rising/Falling Speed Rate non-linear control : 3~30ºC/min, adjustable | ||||||
Internal and External Material | Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. | ||||||
Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | ||||||
Cooling System | Water cooling/single segment compressor | ||||||
Optional Accessories | Inner door with operation hole(Optional), Water Purifier, Dehumidifier | ||||||
Compressor | French Tecumseh Brand, Germany Bizer Brand | ||||||
Power | AC380V 3 ø 5 lines, 50/60HZ | ||||||
Approx. Weight(Kg) | 250 | 350 | 450 | 600 | 700 | ||
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 2 hours after get the call.

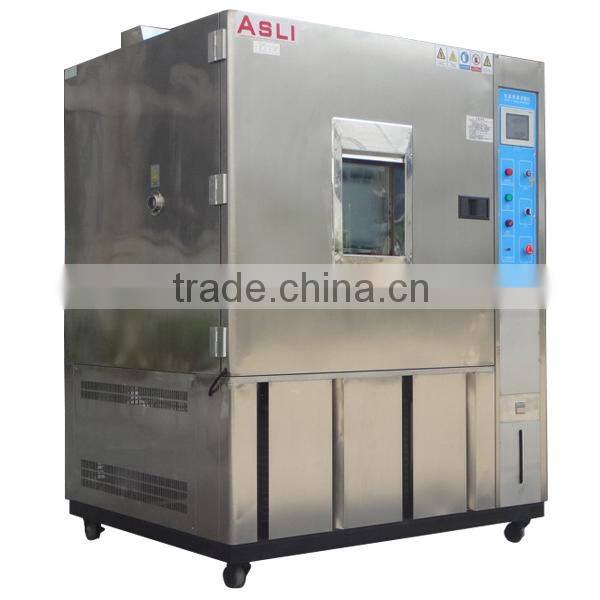

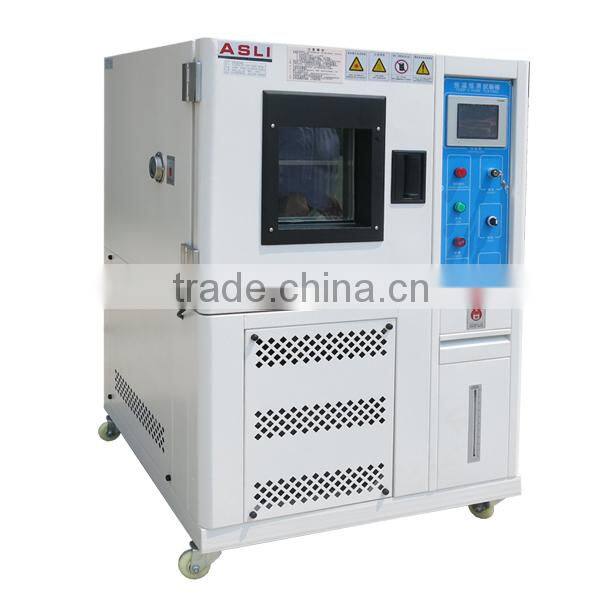

More pictures about ASLI Environment Reaction Test Machine :
...
