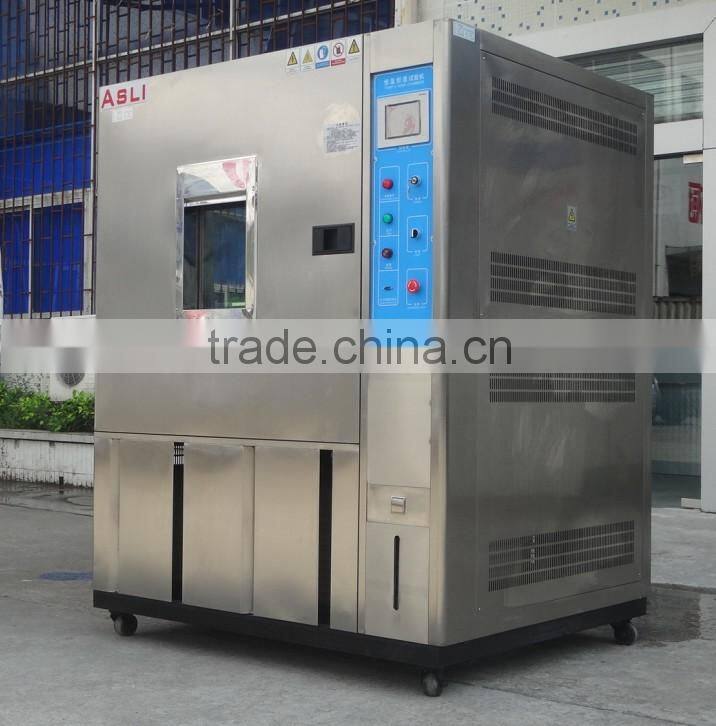

Help CenterPharma Series Test Chambers for Stability Tests on Pharmaceutical Products
Related Products
-
Environment Reaction Testing MachineUS$ 5,000 - 50,000MOQ: 1 Set -
High Precision Temp. Control MachineUS$ 5,000 - 25,000MOQ: 1 Set
-
Environmental Test Cabinet SupplierUS$ 5,000 - 25,000MOQ: 1 Set
-
Environmental Simulation Test MachineUS$ 5,000 - 50,000MOQ: 1 Set
-
CE Marked ESS Chamber ManufacturerUS$ 5,500 - 30,000MOQ: 1 Set
Stability Tests Chambers
Stability Tests Chambers Features
1. This stability tests chabmer with graceful appearance, circularly shaped body, surfacetreated with mist strips,
and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets,and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
Stability Tests Chambers Application:
Stability tests chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance,and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Stability Tests Chambers Technical Parameters :
Model | F-TH-150(A~F) | F-TH-225(A~F) | F-TH-408(A~F) | F-TH-800(A~F) | F-TH-1000(A~F) | ||
Internal Dimension WxHxD( mm) | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000 | ||
Internal Dimension WxHxD (mm) | 1100x1750x1600 | 1200x1800x1700 | 1250x1900x1900 | 1600x2050x2150 | 1700x2200x2300 | ||
Range of Fast Temperature Change | Temperature Range: -70~+150ºC; Range of Fast Temperature Change: -45~+85ºC; Max. temperature rising/falling speed is 15ºC/min when the whole process with linear control . | ||||||
Humidity Range(Optional) | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition,need Dehumidifier) | ||||||
Analytic Accuracy/Distribution Uniformity of Temperature and Humidity | 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H. | ||||||
Control Accuracy ofTemperature and Humidity | ±0.5ºC; ±2.5% R.H. | ||||||
Temperature Rising/Falling Speed Rate | The Temperature Rising/Falling Speed Rate with linear control : 3~15ºC/min, adjustable The Temperature Rising/Falling Speed Rate non-linear control : 3~30ºC/min, adjustable | ||||||
Internal and External Material | Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. | ||||||
Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | ||||||
Cooling System | Water cooling/single segment compressor | ||||||
Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection | ||||||
Optional Accessories | Inner door with operation hole(Optional), Water Purifier, Dehumidifier | ||||||
Compressor | French Tecumseh Brand, Germany Bizer Brand | ||||||
Power | AC380V 3 ø 5 lines, 50/60HZ | ||||||
Approx. Weight(Kg) | 250 | 350 | 450 | 600 | 700 | ||
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-Sale Service: Feedback within 2 hours after get the call.
...
