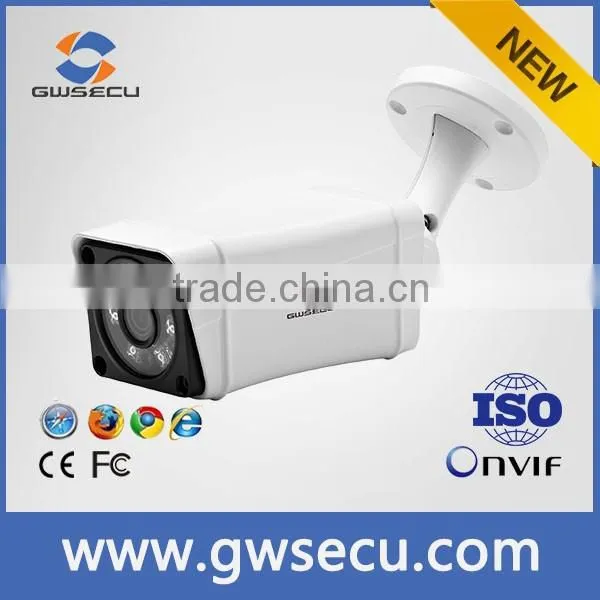

Features
>1/3” 3.0 Megapixel Progressive Scan Aptina WDR CMOS sensor
>Ti DaVinci Series DSP
>H.264 & MJPEG dual-stream encoding
>Max 20fps @ 3.0MP (2048×1536)
>Dual encoding streams supported
>Fixed lens 3.6/6/8mm /F1.2
>Max IR Distance : 20m
>True Day/Night ICR
>IP66 all-environments protection
>Support DC12V power supply, PoE
>Built-in Web server, NVR, CMS,APP

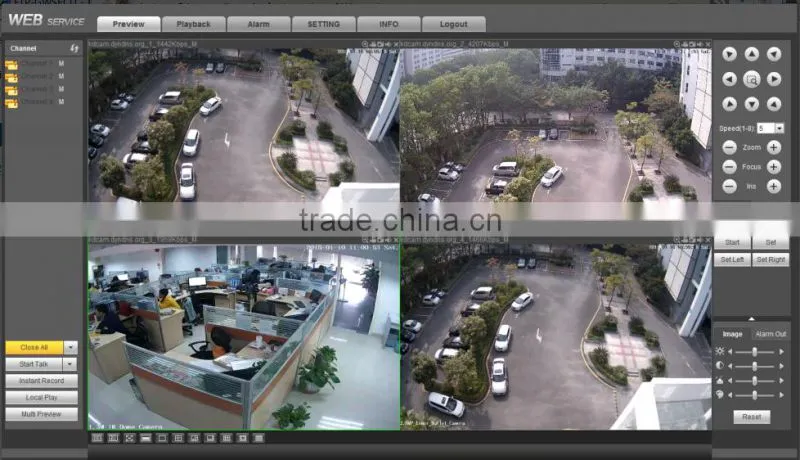

sample of the video recorder screenshot
We company integrates the design,development,production and sales of network video surveiillance products in Shenzhen nearly ten years.
GWSECU office building
Attending the fair.
our products based on the high quality, quality testing superior.
Specifications
Model |
GWH-HW85AC83-DEP |
||
General | |||
processor |
High-performance Hisilicon DSP |
||
Operating System |
embedded LINUX |
||
Capacity |
Simultaneous remote monitoring local recording and remote control |
||
User Interface |
WEB CMS NVR |
||
Camera | |||
Image Sensor |
1/3" 3.0Megapixel Progressive Scan Sony WDR CMOS Sensor |
||
Effective Pixels |
2048(H)×1536(V) |
||
Electronic Shutter |
1/5s to 1/50000s |
||
Mini. Illumination |
Color:0.2Lux/F1.2 ;B/W:0.01Lux/F1.2;0Lux/F1.2(IR on) |
||
Signal Noise Ratio |
>50dB |
||
Day/Night Mode |
Auto dual IR-Cut filter |
||
Gain Control |
Auto/Manual |
||
White Balance |
Auto/Manual |
||
WDR Dynamic Range |
WDR (120dB) |
||
Lens |
3.6mm Fixed Lens(6mm/8mm optional) |
||
Max IR Distance |
20m |
||
Video | |||
Video Compression |
H.265/MJPEG Optional |
||
Encode Type |
H.265 baseline/H.265 Main Profile/H.265 High Profile Optional |
||
Video Bit Rate |
Main Stream:200Kbps~12Mbps Sub Stream:100Kbps~6Mbps |
||
Image Resolution |
3.0Mp(2048 × 1536 ) /1080P(1920×1020) / 720P(1280×720) / D1(704×576/704×480) |
||
Encoding Speed |
Main Stream: 3.0Mp /30 fps ;1080P/720P(1~25fps/30fps) |
||
Extra Stream: D1/CIF(1~25fps/30fps) | |||
Video Format |
PAL/NTSC |
||
Network | |||
Ethernet |
RJ-45 (10/100base-T) |
||
Network Protocol |
Ipv4/Ipv6,RTSP,TCP/UDP,HTTP,DHCP,DNS,FTP,DDNS,PPPoE,SMTP |
||
Common Features |
One button Reset Prevent Flicker Dual-stream Heartbeat Password Protect Video cover Motion Alarm |
||
ONVIF |
ONVIF Ver.2.4 |
||
Max User Access |
10 users |
||
Smart phone |
Iphone Ipad Android |
||
Remote Operation |
Monitor System setting Log information Maintenance & Upgrade |
||
Auxiliary Interface | |||
Reset Input |
One Reset Button(Hold on 3 seconds at least) |
||
Environmental | |||
Power Supply |
DC12V |
||
Power Consumption |
<10W |
||
Working Environment |
-40ºC ~ +60ºC Humidity less than95%(Non-condensing) |
||
Dimensions(mm) |
203.6×65.2x60.9mm |
||
Weight(kg) |
0.5Kg |
||
PoE |
IEEE802.3af |
||
IP Grade |
IP66 |
||
With years of export experience along with excellent quality, advanced services and competitive prices, GWSECU has won numerous customers' trust and support
