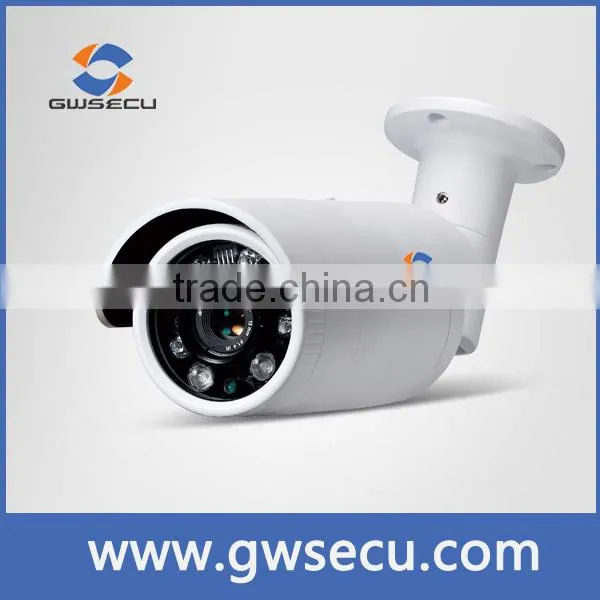

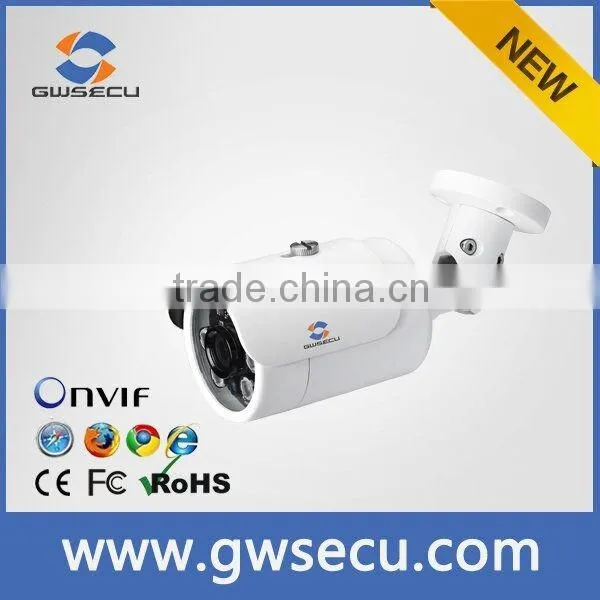

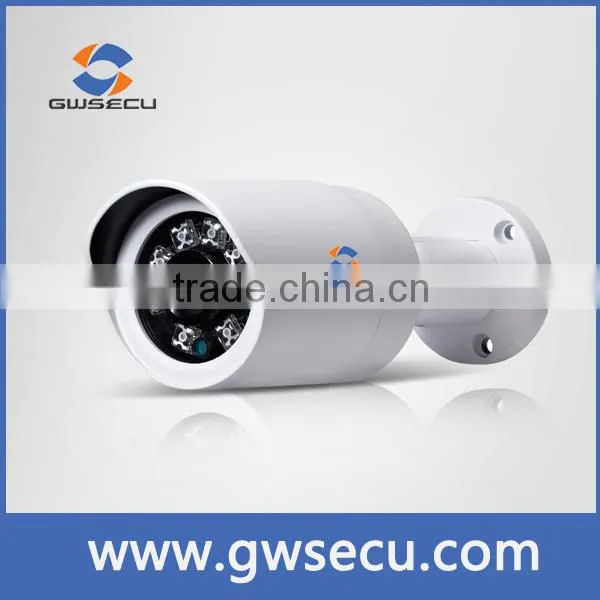

Help Center3.0Mp CMOS HD WDR Waterproof IR Mini Bullet Network ip Camera GWH-HW10RC83-DE
Related Products
-
3.0Mp Ti DaVinci DSPWDR Water-Proof & Vandal-Proof IR Network Bullet CameraUS$ 85 - 95MOQ: 1 Piece -
H.265 3.0Mp WDR Water-Proof Hisilicon DSPNetwork CameraGWH-HW85AC83-DEUS$ 77 - 78MOQ: 1 Piece
-
H.265 2.0Mp HD Star Ultra WDR Water-Proof & Vandal-Proof IR Network GWH-HA33XC84-PUS$ 52 - 55MOQ: 1 Piece
-
Latest Compression H.265 Low Bandwith ip Camera 30fps Real-time 3 Megapixel 120db WDR Sony Exmor IP CameraUS$ 0.01 - 67.8MOQ: 1 Piece
-
GWSECU 3MP Full HD 1080P Outdoor Box IP CCTV CameraUS$ 1 - 20MOQ: 1 Piece
GUOWEI is Dahua authorized company to sale their products to oversea.And we do it for many years.
We supply dahua ip camera, dahua nvr, dahua hdcvi camera/dvr,dahua dvr(please ask for latest price)
Please add +86- 188 7414 0007 to your phone contact & whatsapp
Features
>1/2.8" 3MP progressive scan SONY CMOS Sensor
>High-performance Hisilicon DSP
>H.265&MJPEG video compression and JPEG image capture
>Max 30fps@3MP(2048×1520); 25/30fps /1080P /720P
>Dual encoding streams support
>Ultra-low-light WDR
>Day/Night(ICR)&3D DNR&AWB&AGC&BLC
>Support mobile phone monitoring and P2P function
>Lens: 3.6mm Fixed Lens(6mm/8mm optional)
>Max IR Distance :30m
>IP66 all-environments protection
>Support DC12V power supply, POE
>Built-in Web server, NVR, CMS
sample of the video recorder screenshot
We company integrates the design,development,production and sales of network video surveiillance products in Shenzhen nearly ten years.
GWSECU office building and factory
Attending the fair
our products based on the high quality, quality testing superior.
Specifications
| Model | GWH-HW10RC83-DEP |
| General | |
| Main Processor | High-performance Hisilicon DSP |
| Operating System | embedded LINUX |
| Resource | Simultaneous remote monitoring local recording and remote control |
| User Interface | WEB CMS NVR |
| Camera | |
| Image Sensor | 1/2.8" 3MP progressive scan SONY CMOS Sensor |
| Effective Pixels | 2048(H)×1520(V) |
| Electronic Shutter | 1/5s to 1/50000s |
| Mini. Illumination | Color: 0.3Lux/F1.2; B/W:0.005Lux/F1.2; 0Lux/F1.2(IR on) |
| Signal Noise Ratio | >50dB |
| Day/Night Mode | Auto dual IR-Cut filter |
| Gain Control | Auto/Manual |
| White Balance | Auto/Manual |
| WDR Dynamic Range | 120dB |
| Lens | 3.6mm Fixed Lend (6mm/8mm optional ; M12 mount) |
| Max IR Distance | 30m |
| Video | |
| Video Compression | H.265/H.264/MJPEG Optional |
| H.264 Encode Type | H.265 Main Profile / H.264 baseline/H.264 Main Profile/H.264 High Profile Optional |
| Video Bit Rate | Main Stream: 500Kbps~12Mbps |
| Sub Stream: 100Kbps~6Mbps | |
| Image Resolution | 3.0MP(2048x1536)/1080P(1920X1080)/ 720P(1280×720) / D1(704×576/704×480) |
| Encoding Speed | Main Stream: 3.0MP/1080P/720P/D1(1~25fps/30fps) |
| Extra Stream: D1/CIF:(1~25fps/30fps) | |
| Video Format | PAL/NTSC |
| Audio | |
| Audio Compression | G.711a/G.711u/RAW_PCM Optional |
| Audio Bit Rate | G.711a(8kbps)/G.711u(8kbps)/RAW_PCM(16kbps) |
| Audio Input | 1-channel 3.5mm audio interface MIC IN/Line IN |
| Audio Output | 1-channel 3.5mm audio interface (line level600Ω) |
| Network | |
| Ethernet | RJ-45 (10/100base-T) |
| Network Protocol | Ipv4/Ipv6 RTSP TCP/UDP HTTP DHCP DNS FTP DDNS PPPoE SMTP |
| Common Features | One button Reset Prevent Flicker Dual-stream Heartbeat Password Protect Video cover Motion Alarm |
| ONVIF | ONVIF Ver.2.4 |
| Max User Access | 10 users |
| Smart phone | Iphone Ipad Android |
| Remote Operation | Monitor System setting Log information Maintenance & Upgrade |
| Browser | IE(9/10/11)Chrome Firefox Safaribetc etc |
| Auxiliary Interface | |
| Reset Input | One Reset Button(Hold on 3 seconds at least) |
| Environmental | |
| Power Supply | DC12V |
| Power Consumption | <5W |
| Working Environment | -40ºC ~ +60ºC Humidity less than95%(Non-condensing) |
| IP Grade | IP66 |
| Dimensions(mm) | 66.7mm×62.0mm×173mm |
| Weight(kg) | 0.4Kg |
| PoE | IEEE802.3af |
With years of export experience along with excellent quality, advanced services and competitive prices, GWSECU has won numerous customers' trust and support.Welcome to visit our company.
FAQ
1. Payment
What are the terms of payments you offer?
We accept payment via T/T,L/C at sight, Paypal, Westunion etc
2. Shipment
How long will it takes to deliver goods?
We will deliver your goods within 3-5 working days in stock, without stock 7-10 working days after an order confirmed
What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
