GWSECU 3MP Full HD 1080P Outdoor Box IP CCTV Camera
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
-
7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
-
7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
-
7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
-
7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
-
Car Camera Wireless Transmitter System For Bus
-
7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Guangdong, China | Brand Name: | GWSECU Box IP CCTV Camera | Model Number: | KDT-HA33XC83-DP Box IP CCTV Camera |
Type: | IP Camera | Style: | Box Camera | Sensor: | CMOS |
Technology: | NetWork | Special Features: | Other, WDR |
Product Description

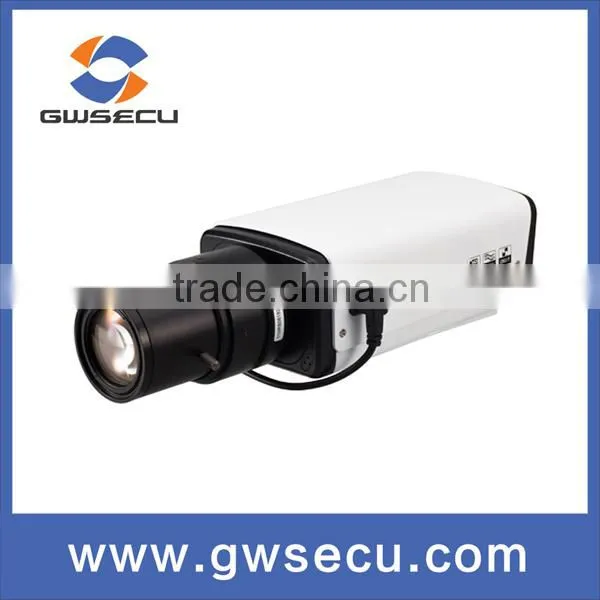

Box IP CCTV Camera 3.0Mp CMOS HD WDR Network Camera
2.0mp Bullet IP Camera | 2.0mp Dome IP Camera | 2.0 Bullet IP Camera |
1.3mp Dome Network Camera | H.265 2.0MP Network Camera | 3.0MP Network Camera |
Features:
>1/3" 3.0 Megapixel Progressive Scan Aptina WDR CMOS sensor
>Ti DaVinci Series DSP
>H.264&MJPEG video compression and JPEG image capture
>Support dual-stream encoding
>Max 20fps 3.0MP (2048×1536)
>Support ICR True Day/Night
>Support C/CS Auto lris lens
>Support Alarm I/O, RS485 interface
>Max 32 GB TF card for local storage
>Support BNC Video Output
>Support mobile phone monitoring and P2P function
Specification:
Model | KDT-HA33XC83-DP |
General | |
Main Processor | Ti DaVinci Series DSP |
Operating System | embedded LINUX |
Capacity | Simultaneous remote monitoring local recording and remote control |
User Interface | WEB CMS NVR APP |
Camera | |
Image Sensor | 1/3" 3.0Megapixel Progressive Scan Aptina WDR CMOS Sensor |
Effective Pixels | 2048(H)×1536(V) |
Electronic Shutter | 1/5s to 1/50000s |
Mini. Illumination | Color:0.2Lux/F1.2 B/W:0.01Lux/F1.2 |
Signal Noise Ratio | >50dB |
Day/Night Mode | Auto dual IR-Cut filter |
Gain Control | Auto/Manual |
White Balance | Auto/Manual |
WDR Dynamic Range | WDR (120dB) |
Lens Mount | C/CS |
Auto lris | Support |
Video | |
Video Compression | H.264/MJPEG Optional |
H.264 Encode Type | H.264 baseline/H.264 Main Profile/H.264 High Profile Optional |
Video Bit Rate | Main Stream: 200Kbps~12Mbps |
Sub Stream: 100Kbps~6Mbps | |
Image Resolution | 3.0MP(2048×1536)/1080P(1920×1020) / 720P(1280×720) |
Encoding Speed | Main Stream: max 3.0Mp /20 fps(PAL) ;max 3.0Mp /20 fps(NTSC) |
Extra Stream: max D1 /25 fps(PAL) ;max D1 /30 fps(NTSC) | |
Video Format | PAL/NTSC |
Analog Video Output | 1 channel BNC (1.0Vp-p 75Ω) |
Audio | |
Audio Compression | G.711a/G711u Optional |
Audio Bit Rate | G.711a(8kbps)/G.711u(8kbps) |
Audio Input | 1-channel 3.5mm audio interface MIC IN/Line IN |
Audio Output | 1-channel 3.5mm audio interface (line level 600Ω) |
Network | |
Ethernet | RJ-45 (10/100base-T) |
Network Protocol | Ipv4/Ipv6 RTSP TCP/UDP HTTP DHCP DNS FTP DDNS PPPoE SMTP |
Common Features | One button Reset Prevent Flicker Dual-stream Heartbeat Password Protect Video cover Motion Alarm |
ONVIF | ONVIF Ver.2.4 |
Max User Access | 10 users |
Smart phone | Iphone Ipad Android |
Remote Operation | Monitor System setting Log information Maintenance & Upgrade |

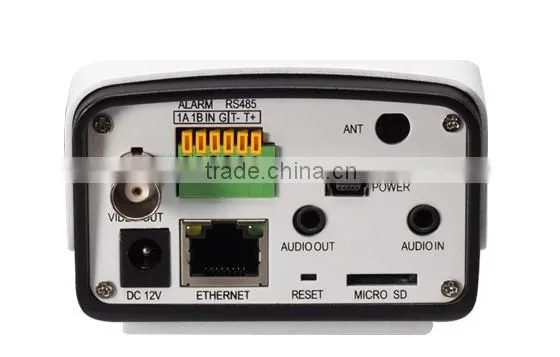

Auxiliary Interface | |
Reset Input | One Reset Button(Hold on 3 seconds at least) |
SD Card | Max 64GB local storage |
RS485 | PTZ control |
Alarm Input | 1-channel input Normally Open /Normally Close modes adjustable |
Alarm Output | 1-channel output 120VAC 1A/24VDC 1A |
Environmental | |
Power Supply | DC12V |
Power Consumption | <3W |
Working Environment | -40ºC ~ +60ºC Humidity less than95%(Non-condensing) |
PoE | IEEE802.3af |
Dimensions(mm) | 150.2mm×77.7mm×55.8mm |
Weight(kg) | 0.51KG |

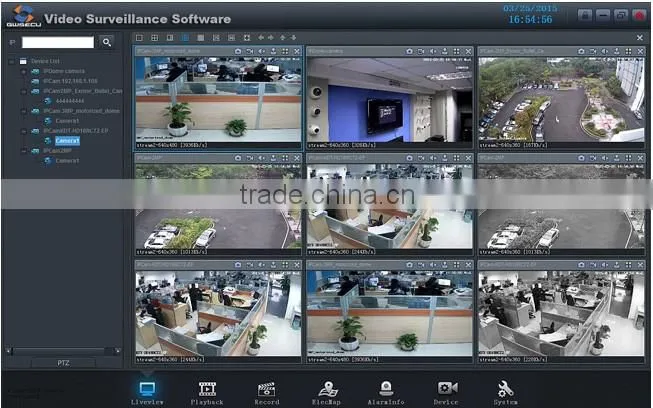

CMS&VSS Interface:

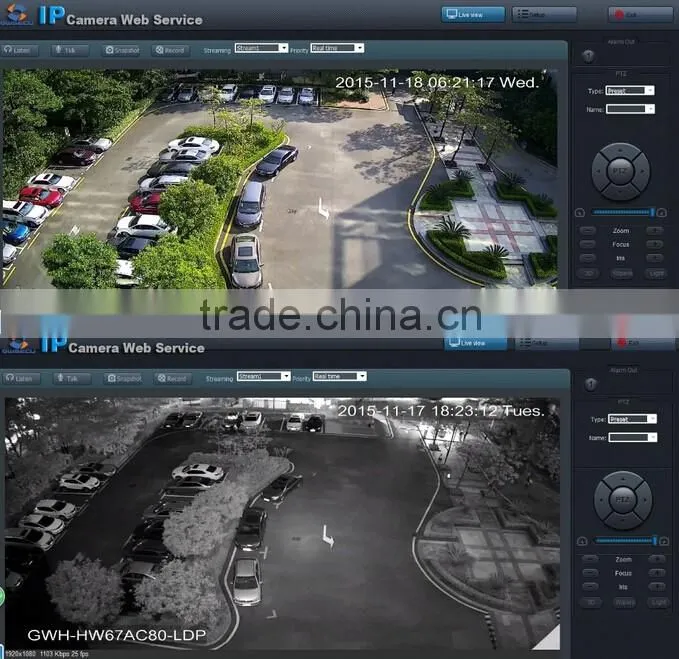

Web Interface:

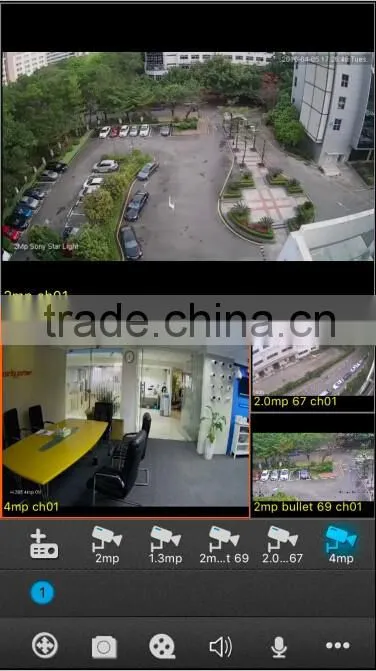

Mobile Phone View:
