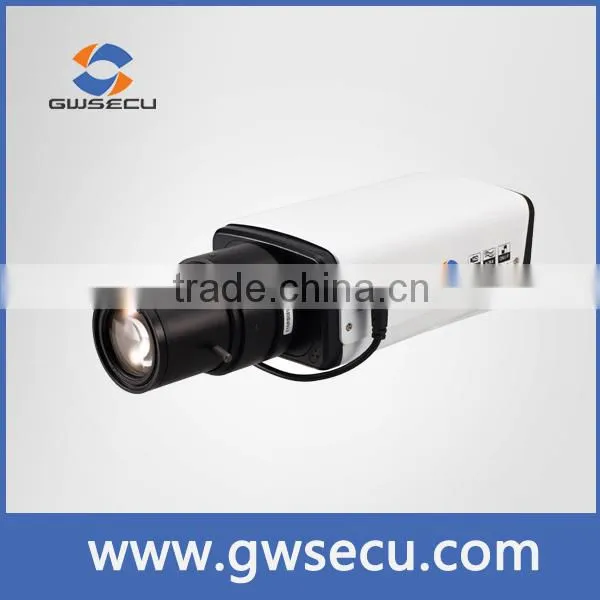

H.265 Hisilicon DSP 5.0Mp CMOS HD WDR Network IP Camera

H.265 Hisilicon DSP 5.0Mp CMOS HD WDR Network IP Camera thumbnail-1
H.265 Hisilicon DSP 5.0Mp CMOS HD WDR Network IP Camera photo-1
US$ 125 - 130 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GWSECU
Model Number:
GWH-HA33XC85-DP
Contact Supplier Request Quote Chat Now
Shenzhen Guowei Security Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GWSECU
Model Number GWH-HA33XC85-DP
Type IP Camera
Style Box Camera
Sensor CMOS
Technology NetWork
Special Features Other, Auto lris lens

GUOWEI is Dahua authorized company to sale their products to oversea.And we do it for many years.

We supply dahua ip camera, dahua nvr, dahua hdcvi camera/dvr,dahua dvr(please ask for latest price)

 Please add +86- 188 7414 0007 to your phone contact & whatsapp



H.265 Hisilicon DSP 5.0Mp CMOS HD WDR Network IP Camera



Features

>1/1.8 ” 5.0 Megapixel Progressive Scan Sony CMOS sensor
>High-performance Hisilicon DSP
>H.265&MJPEG video compression and JPEG image capture
>Max 30fps@5MP(2592×1944)
>WDR (120dB)
>Day/Night(ICR)&3D DNR&AWB&AGC&BLC
>Dual encoding streams supported
>Support mobile phone monitoring and P2P function
>Support C/CS Auto lris lens
>Support Alarm I/O, RS485 interface
>Max 64 GB Hot-swap TF card for local storage
>Support BNC Video Output



Sample of the video recorder screenshot
H.265 Hisilicon DSP 5.0Mp CMOS HD WDR Network IP Camera



We company integrates the design,development,production and sales of network video surveiillance products in Shenzhen nearly ten years.

GWSECU office building and factory

H.265 Hisilicon DSP 5.0Mp CMOS HD WDR Network IP CameraH.265 Hisilicon DSP 5.0Mp CMOS HD WDR Network IP Camera



Attending the fair.

H.265 Hisilicon DSP 5.0Mp CMOS HD WDR Network IP Camera



Our products based on the high quality,  quality testing superior.

H.265 Hisilicon DSP 5.0Mp CMOS HD WDR Network IP Camera



Specifications

Model GWH-HA33XC85-DP
General
Main Processor High-performance Hisilicon DSP
Operating System embedded LINUX
Resource Simultaneous remote monitoring local recording and remote control
User Interface WEB CMS NVR
Camera
Image Sensor 1/1.8" 5.0 Megapixel Progressive Scan Sony CMOS Sensor
Effective Pixels 2592 (H)×1944(V)
Electronic Shutter 1/5s to 1/50000s
Mini. Illumination Color:0.2Lux/F1.2; B/W:0.003Lux/F1.2;
Signal Noise Ratio >50dB
Gain Control Auto/Manual
White Balance Auto/Manual
Lens C/CS
Auto Iris Support
Video
Video Compression H.265/H.264/MJPEG Optional
H.264 Encode Type H.265 Main Profile / H.264 baseline/H.264 Main Profile/H.264 High Profile Optional
Video Bit Rate Main Stream: 200Kbps~12Mbps
Sub Stream: 100Kbps~6Mbps
Image Resolution 5.0Mp(2592 × 1944)/3.0Mp(2048 × 1536 )/1080P(1920×1080) / 720P(1280×720) /
D1(704×576/704×480)
Encoding Speed Main Stream: 50Hz:30fps (2592 × 1944) 60Hz:30fps (2592 × 1944)
Extra Stream: 50Hz: 25fps(640 × 480); 60Hz: 30fps (640 × 480);
Video Format PAL/NTSC
WDR Dynamic Range 120dB
Analog Video Output 1 channel BNC (1.0Vp-p 75Ω)
Audio
Audio Compression G.711a/G.711u/RAW_PCM Optional
Audio Bit Rate G.711a(8kbps)/G.711u(8kbps)/RAW_PCM(16kbps)
Audio Input 1-channel 3.5mm audio interface MIC IN/Line IN
Audio Output 1-channel 3.5mm audio interface (line level600Ω)
Network
Ethernet RJ-45 (10/100base-T)
Network Protocol IPv4/IPv6,RTSP/RTP/RTCP,TCP/UDP,HTTP,DHCP,DNS,FTP,DDNS,PPPoE,SMTP
ONVIF ONVIF Ver.2.4
Max User Access 10 users
Smart phone Iphone Ipad Android Windows phone
Remote Operation Monitor Playback System setting File download Log information Maintenance & Upgrade
Browser IE(9,10,11)Chrome Firefox Safaribetc etc
Auxiliary Interface
Reset Input One Reset Button(Be effective after continues to hold down for 3 seconds)
Memory Slot TF Card Max 64GB
RS485 PTZ control
Alarm Input 1-channel input Normally Open/Normally Close modes adjustable
Alarm Output 1-channel output 120VAC 1A/24VDC 1A
Environmental
Power Supply DC12V
Power Consumption <2.5W
Working Environment -40ºC ~ +60ºC Humidity less than95%(Non-condensing)
Dimensions(mm) 150.2mm x 77.7mm x 55.8mm
Weight(kg) 0.51kg
PoE IEEE802.3af









With years of export experience along with excellent quality, advanced services and competitive prices, GWSECU has won numerous customers' trust and support,Welcome to our company

 H.265 Hisilicon DSP 5.0Mp CMOS HD WDR Network IP Camera

FAQ

1. Payment

What are the terms of payments you offer?

We accept payment via T/T,L/C at sight,  Paypal, Westunion etc



2. Shipment

How long will it takes to deliver goods?

We will deliver your goods within 3-5 working days in stock, without stock 7-10 working days  after an order confirmed



What kind of packaging you offer?

We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.

What kind of transportation methods you offer?

A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.

B. We also can deliver your goods by air and sea as your request.
