Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > Best Price 2.0 Megapixel HD-SDI Full HD 1080P SPEED DOME Security CCTV CAMERA

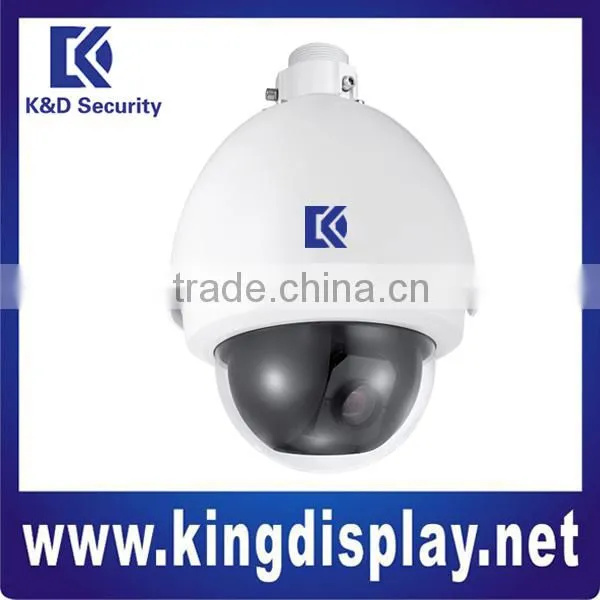

Best Price 2.0 Megapixel HD-SDI Full HD 1080P SPEED DOME Security CCTV CAMERA

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

K&D

Model Number:

KD-HP93XC20-80-SDI

Contact Supplier Request Quote Chat Now

Shenzhen Guowei Security Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name K&D

Model Number KD-HP93XC20-80-SDI

Type Other, Analog Camera, 2.0 Megapixel HD-SDI SPEED DOME CAMERA

Style Dome Camera

Sensor CMOS

Technology Pan / Tilt / Zoom

Specifications

Best Price 2.0 Megapixel HD-SDI Full HD 1080P SPEED DOME Security CCTV CAMERA
Powerful 20x optical zoom and 16x digital zoom

Best Price 2.0 Megapixel HD-SDI Full HD 1080P SPEED DOME Security CCTV CAMERA

Camera & Video
> 1/2.8” 2.0 Megapixel progressive scan Exmor CMOS
> Powerful 20x optical zoom and 16x digital zoom
> Standard HD-SDI high definition digital interface (SMPT292/259)
> Full HD 1080P(1920×1080) HD-SDI video out with 25/30fps
> Max 25/30fps @1080P resolution
> Day/Night(ICR), Auto iris, Auto focus, AWB, BLC
> Up to 24 privacy masking areas
> Built-in Web server, NVR, CMS(PSS/DSS) & DMSS

Dome Drive
> Max 400 °/s pan speed, 360° continuous pan rotation & auto flip with no blind spot monitor
> Up to 255 preset, 5 auto scan, 8 tour, 5 pattern
> Auto recognition of general protocols such as DH-SD, Pelco-P/D, and etc
> Speed setup according to the focal distance, auto rotation speed adjust in accordance with the lens zoom rate
> Auto restore to previous PTZ and lens status after power failure
> Time Task: Auto activation of Preset/Scan/Tour/ Pattern by preset-time
> Idle Motion: Call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up)
> OSD and operation prompts of various languages
> Build-in 7/2 channel alarm input/output
> Intelligent 3D positioning function
> IP67 all-environments protection and built-in auto constant temperature control device
> 4000V thunder, surge and wave-proof protection
> Easy installation and 100% waterproof with quick-installation port adopted

Model	KD-HP93XC20-80-SDI
Camera
Image Sensor	1/2.8” progressive scan Exmor CMOS
Effective Pixels	Approx. 2 Megapixels
Lens	20x optical zoom
Lens	f=4.7mm(Wide)~94.0mm(Tele), F1.6~F3.5
Digital Zoom	16x
Horizontal Viewing Angle	55.4.°(Wide)~2.9°(Tele),
Min. Object Distance	10mm(wide) ~ 1000mm(Tele)
Min. Illumination	1.8Lux/F1.6(color);0.02Lux/F1.6(B/W)
Electronic Shutter	PAL/NTSC:1/1 to 1/30,000 s,
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Day/Night	Auto(ICR) / Color / B/W
S/N Ratio	More than 50 dB
Privacy Masking	ON/OFF (up to 24 privacy masking areas)
Video
Video Output	1ch HD-SDI high-definition video (SMPT292/259)
Resolution	1080P (1920 x 1080)
Frame Rate	PAL: 25fps, NTSC: 30fps
Dome Drive
Pan/Tilt Range	Horizontal: 0°~360°endless, Vertical: -2°~90° auto flip 180° to continue monitor
Manual Control Speed	Horizontal: 0.1°~300°/s, Vertical: 0.1°~150°/s
Preset Speed	Horizontal: 400°/s, Vertical: 300°/s
Preset	255
PTZ Mode	5 Auto Pattern, 8 Auto Tour, 5 auto scan
3D Positioning	Yes
Speed Setup	Human-oriented focal Length/ speed adaptation
Info Display	Time, Location, Dome title, Dome coordinates, Temperature, Alarm, and etc.
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate preset/scan/tour/ patter if there is no command in the specified period.
Time Task	Auto activation of Preset/Scan/Tour/ Pattern by preset-time
Alarm	7/2 alarm input/output, Triggering Preset/Tour/Pattern/Scan//Alarm output
Protocol	DH-SD, Pelco-P/D, Auto recognition of general protocols
General
Power Supply	AC 24V/3A(±10%)
Power Consumption	12W(Indoor), 50W(Outdoor, heater on)
Working Temperature	-40ºC ~ 60ºC
Working Humidity	<90%
Protection Level	IP67, 4000V thunder, surge and wave-proof protection
Dimension	Φ222(mm) x 324 (mm)
Weight	5.0kg
