Specifications
2.0 Megapixel Full HD 1080P SONY CMOS HD-SDI IK10&IP66 DOME Security CCTV CAMERABuilt-in 3.3~12mm
Power supply AC24V/DC12V

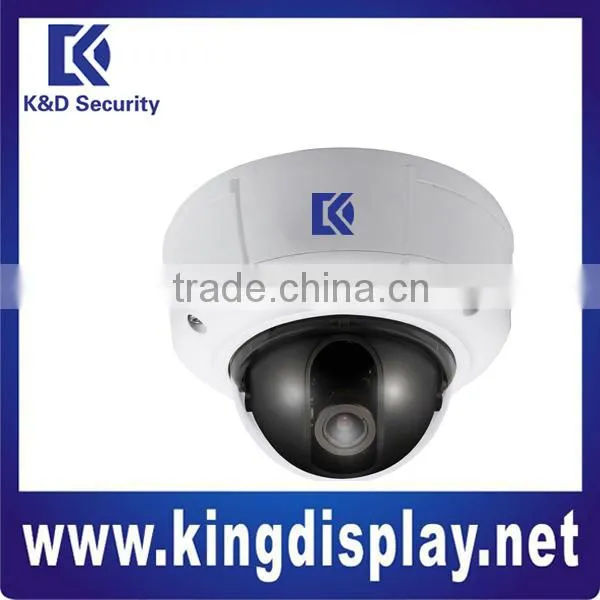

2.0 Megapixel Full HD 1080P SONY CMOS HD-SDI IK10&IP66 DOME Security CCTV CAMERA
>1/3” 2.0 Megapixel SONY progressive scan Exmor CMOS image sensor
> High color reproduction and high sensitivity
> Standard HD-SDI high definition digital interface (SMPT274/292)
> Full HD 1080P(1920×1080)@25/30fps, 720P(1280×720)@50/60fps HD-SDI video out
> Support 1 BNC analog video output
> Built-in 3.3~12mm/F1.6 CS Auto Iris lens
> Support ICR true Day/Night
> Support RS485 System parameters configuration
> IK10 Vandal-proof & IP66 Waterproof
> Support Dual Power supply AC24V/DC12V
Model |
KD-HD64XC80-SDI |
|
Camera | ||
Image Sensor |
1/3” 2.0 Megapixel SONY progressive scan Exmor CMOS |
|
Effective Pixels |
1920(H)×1080(V) |
|
Electronic Shutter |
Auto/Manual, 1/3~1/10,000s |
Auto/Manual, 1/4~1/10,000s |
Mini. Illumination |
0.1LUX/F1.6(Color), 0.01LUX/F1.6(B/W) |
|
Signal Noise Ratio |
52dB |
|
Gain Control |
Auto/Manual |
|
White Balance |
Auto/Manual |
|
Day/Night |
ICR |
|
Video | ||
Image Resolution |
25fps@1080P(1920×1080)/720P(1280×720); 50fps@720P(1280×720) |
30fps@1080P(1920×1080)/720P(1280×720); 60fps@720P(1280×720) |
Video Format |
PAL |
NTSC |
Analogue Video Output |
1 channel BNC(1.0Vp-p, 75?) |
|
HD-SDI Video Output |
1ch HD-SDI high-definition video (SMPTE 292M standard) |
|
Lens | ||
Lens |
3.3~12mm/F1.6 |
|
Auto Iris |
Manual/Auto(DC) |
|
Mount |
C / CS |
|
Other Interface | ||
RS485 |
System parameters configuration, OSD Menu |
|
Environmental | ||
Ingress Protection |
IK10 & IP66 |
|
Power Supply |
DC12V/AC24V |
|
Power Consumption |
<12W |
|
Operating Environment |
-10°C~+60°C, 10%~90% |
|
Dimension |
160mm x118.5mm |
|
Weight |
1.25Kg |
|
