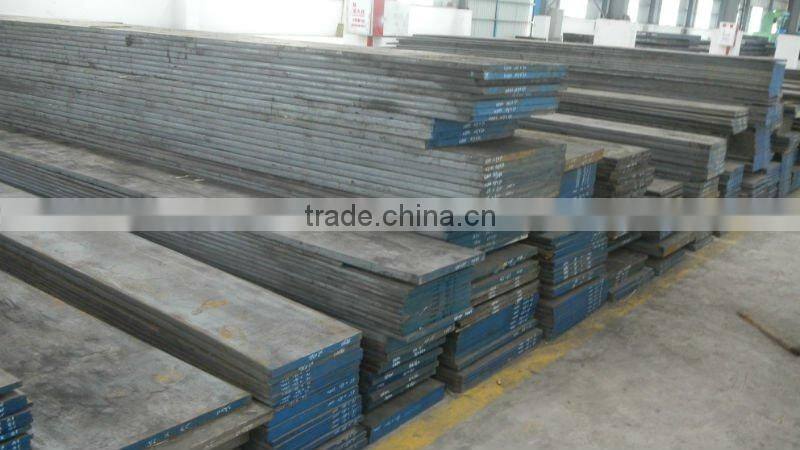

Cr12MoV/SKD11/D5/1.2061 stainless steel forging

Name: Cr12MoV/SKD11/D5/1.2061 stainless steel forging
Brand: Circle Four
Availability: InStock

FOB Price

USD $1,700 - $2,800 / Ton

20 Tons(Min.Order)

Port Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard	AISI, ASTM, GB, JIS	Grade	Cr12MoV
Thickness	80mm--600mm	Place of Origin	China
Brand Name	Circle Four	Model Number	D5
Type	Steel Plate	Technique	Cold Rolled
Surface Treatment	Other, Coated, black/polished/machined/peeled/grinded/turned	Application	Other, tool steel
Special Use	High-strength Steel Plate	Width	605mm--2400mm
Length	2000mm--8000mm

Product Description

Specifications

We have our own factory .Our company is specialized in stainless steel forging and all kinds of steel with cost advantage.

Cr12MoV/SKD11/D5/1.2061

1. Specification:

Material:	Cr12MoV/SKD11/D5/1.2061
Process:	EAF + LF + VD + HOT ROLLED + Heat Treatment (optional)
Thickness:	80-600mm, or customer’s request
Width:	200-2300mm, or customer’s request
Length:	2000mm-5800mm , or customer’s request
Heat treatment:	Normalized / Annealed / Quenched / tempered
Delivery condition:	Hot forged +Rough machined (black surface after Q/T)+ Turned (optional)
Technical Data:	According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing
Test:	Ultrasonic test according to SEP 1921-84 GR3 C/C
Delivery time:	7-15 days after advanced payment
Payment:	30% advance by TT; Balance pay before the shipment against shipping documents or irrevocable LC at sight

2.Chemical analysis

C%	Si%	Mn%	Cr%	V%	Mo%
1.45-1.70	≤0.40	≤0.35	1.10-12.50	0.15-0.30	0.40-0.60

3.Compared grades(based on usage)

Chinese	German	American	Japanese
GB	DIN	AISI	JIS
Cr12MoV	1.2601	D5	SKD11

About us:

◊Establish: Dongguan Circle Four Metal Materials Co., Ltd. was established in 2008 has 5 years manufacturing and exporting professional experience in mould steel, special steel etc.

◊Products: We mainly manufacture more than 100 kinds of hot rolling or forging products, such as alloy structural steel, alloy tool steel, carbon structural steel, carbon tool steel, plastic mould steel, hot work steel, cold work steel, spring steel and high speed steel.

◊Capacity: 500, 000MT per year.

Any interests in our company and products, please feel free to contact us for quotation. We warmly welcome you to our factory.

Our company located in No.38XinGang Road,Xinan,Xinan,Xingnongcun,Changan Town,Dongguan City,China . Tel: 86-0769-85310228 fax 86-0769-85348866 .

Our advantage products:

tool steel	GB (Chinese)	ASTM (American)	JIS (Japanese)	DIN (German)
Cold work	Cr12	D3	SKD1
	Cr12MoV
	Cr12Mo1V1	D2	SKD11	1.2379
Hot work	5CrNiMo	L6	SKT4	55NiCrMo;V6
	5CrNiMoV
	4Cr3Mo3SiV	H10A	SKD7	1.2885
Plastic tool steel	40Cr	5140	SCr440	1.7035
	SWP20	P20	SCM4	1.2311
	SW718H	P20+Ni		1.2738
	3-4Cr13	420		1.2083
	3-4Cr16Mo	420	SUS420	1.2316
	10Ni3MoAlCu	P21	NAK80
Carbon steel	48C	1045-1055	S45C-S55C	1.1730

Our factory now equiped with large-sized Vertical sawing machines,Horizontal saw machines,Milling machines,Grinding machines,Finish milling.

We do hardness testing of processing for your needs and we also have advanced ultrasonic flaw detection equipment.

Our products have selling to:

Indonesia,Singapore,Japan,Korea,India,Malaysia,Mexico,Brazil,Denmark,Turkey,Germany,Italy,Dubai,the middle east and other regions.
