Tension Tester Factory
1. Application:
Universal tensile testing machine is an electrically operated machine that is used for testing tensile strength and elongation of materials like plywood, wires, cables, conductors, ferrous and non-ferrous materials.
2. Tension Tester Factory / Features:
1. Automatic stop: After the sample broken, automatic stop.
2. Display: Real-time display testing force, displacement, testing speed, peak value,testing status on one LCD .
3. Automatic return: automatic return to initial position when testing finished.
4. Limiting protection: Program control and Mechanical limiting protection.
5. High accuracy photoelectric encoder to measure the displacement.
6. High accuracy load cell to measure the test load.
7. Ball screw no backlash to guarantee the low noise and high driving efficiency.
8. High accuracy servo motor to control test speed.
9. Adopt reliable, durable and high accuracy digital electronic device.
10. Can built-in multiple load sensor control channel.
11. Thousands of test fixture can be used according to different test request.
12. Micro printer optional, can realize testing data print.
3. Standard of Tension Tester:
ASTM E4, ISO7500-1. EN10002-2, BS1610, DIN51221
4.Technical Parameters for Tension Tester :
Model |
AS-PC- Volume |
Capacity (Kg) |
50,100,200,500,1000,2000,5000,10000,20000 |
Load Accuracy |
0.5% |
Load Resolution |
1/100,000 |
Valid Width (mm) |
400 |
Max. Route (mm) |
1000(not including clamp) |
Test Speed (mm/Min.) |
0.1~500(1000) |
Speed Accuracy |
±0.5% |
Motor |
AC servo motor |
Volume WxHxD (mm) |
1750x3310x1220 |
Weight (Kg) |
300 |
Power |
AC220V, 1ph 3 lines; AC380V, 3ph 5 lines |
5.Warranty: one year free warranty for whole set machine,lifelong time maintainance.
6.After-sale service: feedback within 2 hours after get the call.

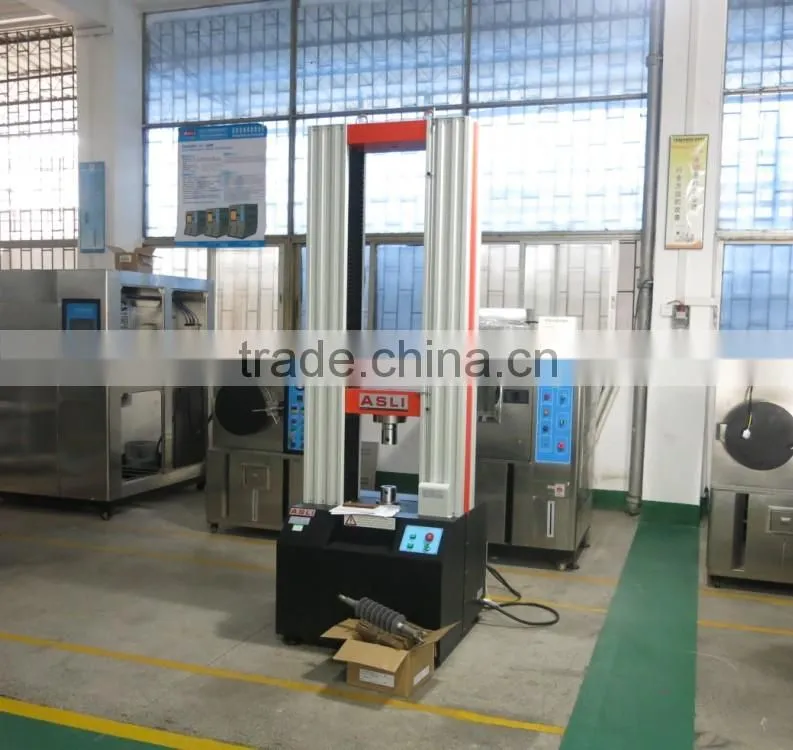

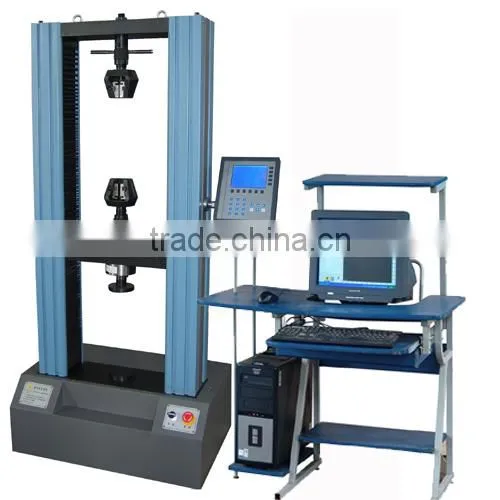

7.More pictures for Tension Tester Factory :
