Ball Drop Tester Factory
Technical Parameters :
Model |
AS-DT-120 |
AS-DT-150 |
AS-DT-200 |
Max. Weight of Test Samples (Kg) |
≥200 |
100 |
100 |
Height of Drop (mm) |
0~1200 |
300~1500 |
300~2000 |
Max. Dimension of Test Sample WxHxD (mm) |
1200x1200x1200 |
1000x800x1000 |
1000x800x1000 |
Falling Floor Size WxHxD (mm) |
1400x50x2000 |
1700x50x1200 |
1700x50x1200 |
Drop Method |
Face, edge, angle |
||
Test Bench External Dimension WxHxD (mm) |
1400x2000x1800 |
1700x2700x1200 |
1700x2700x1200 |
Weight (Kg) |
1500 |
600 |
700 |
Power |
AC 380V |
||
Ball Drop Tester Factory / Features :
1.The main axle of tester used dual axle rode, high precision and good stability. Power failure safety design, it will be kept
the original condition under power cut and the swing arm will not break away unusually.
2. The tester has set limits upward and down, will not exceed safety range when testing.
3. Support arm with electronic reset capability, can avoid the accident by manual operation.
4. Multifunctional sample supporter: Can rapidly fix the different size package to test the package edges, sides and corners
5. Micro adjusting control, can rapidly set to the needed testing height.
Ball Drop Tester / Applications:
Drop testing determines the ability of a package to withstand the rigors of handling by people and machinery in the distribution environment. Numerous studies have shown conclusively that a truly flat drop represents the worst possible input to a packaged product. Therefore, it is crucial that laboratory drop testing be done on a drop test system designed to insure the flattest impacts possible. In addition to accurate flat drop testing, Asli drop testers allow drop testing to be performed on the package's edges and corners, for complete performance evaluation. Asli Drop Testers allow you to thoroughly examine the effectiveness of package cushioning and its ability to protect your product, dunnage, closures, and other critical design attributes when exposed to all possible drop test orientations.
If you are interested in the drop test system or other related testing equipments , you are welcomed to contact us any time you are convinent !

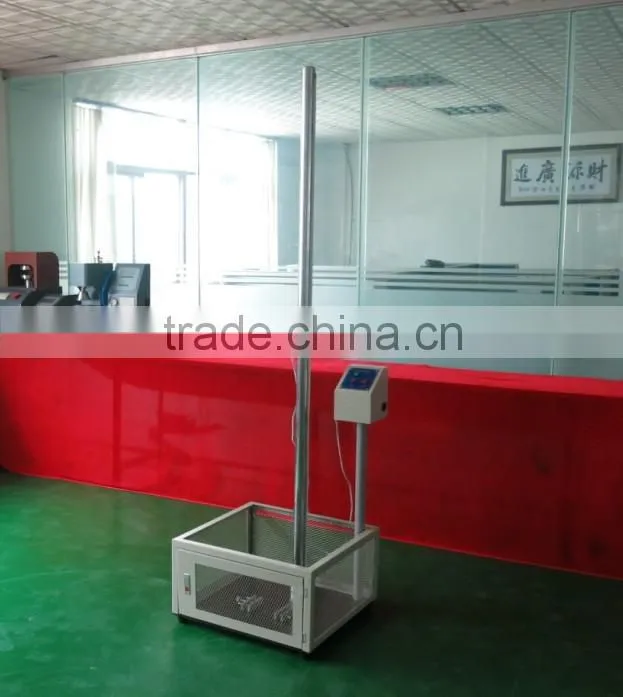

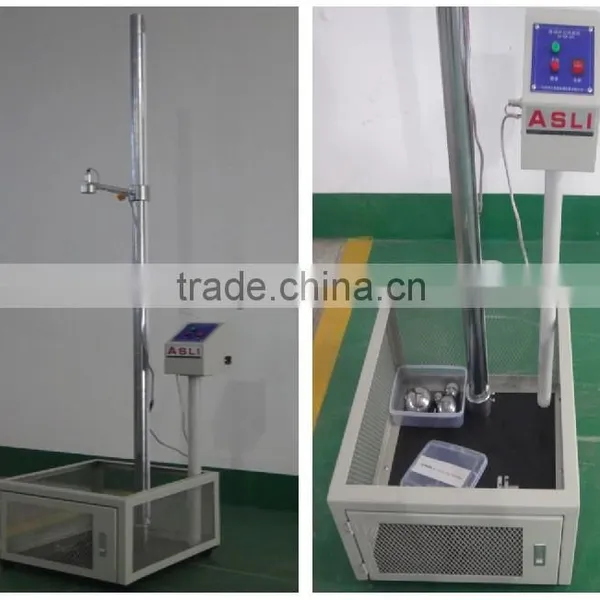

Ball Drop Tester Pictures:
