Home > Security & Protection > Surveillance, Control & Protection > Monitoring System & Software > New Arrival 4 Channel H.264 Standalone Network DIY DVR Kit With 600tvl CCTV Cameras Security Packages

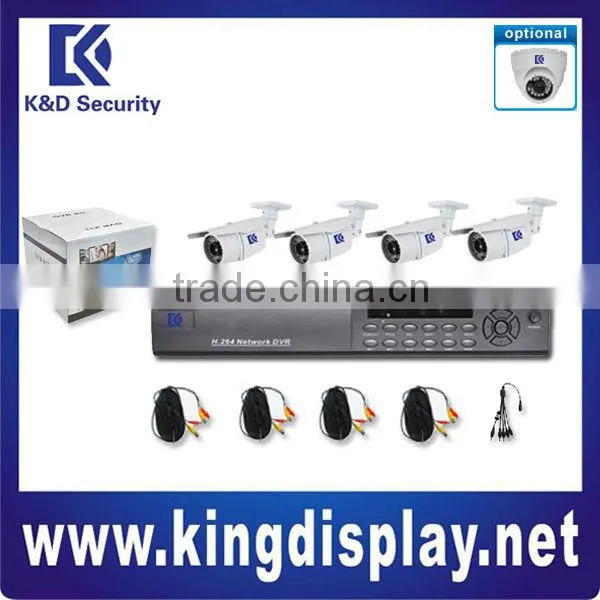

New Arrival 4 Channel H.264 Standalone Network DIY DVR Kit With 600tvl CCTV Cameras Security Packages

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

K&D

Model Number:

KD-A7604CS-C

Shenzhen Guowei Security Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name K&D

Model Number KD-A7604CS-C

Specifications

4ch Standalone DVR Kit
Support Symbian, Windows, iPhone, Google Android and BlackBerry
Hard disk SATA x 2 up to 2TB
4 cameras

new arrival 4 channel H.264 standalone network DIY DVR kit with 600tvl CCTV Cameras Security packages

4CH Standalone DVR Kit
Support Symbian, Windows, iPhone, Google Android and BlackBerry
Hard disk SATA x 2 up to 2TB
4 cameras

Model	KD-A7604CS-C
DVR Feature.
Channel	4ch
VGA Output	1ch
Video Input / Output	NTSC / PAL/SECAM: BNC 4CH In / 1CH Out
Audio Input / Output: In	In: RCA 4CH Out: RCA 1CH
Video Output	Support HD VGA and BNC simultaneous output
Recording Resolution	D1/CIF
Video Compression	H.264
Audio Compression	G711A
Hard Disk Capacity	SATA x 2 up to 2TB
Mobile Phone	Support Symbian, Windows CE, iPhone, Google Android and BlackBerry
Network Interface	RJ45port 10/100Mbps
Operating Environment	-10 º C ~ +40 º C /10~90%RH
Power Supply	DC 12V/3A
Dimension	390mm X 310mm X 120mm(W X D X H)
Weight	5.8KG (without HDD)
Camera Feature
Camera Model	KD-CW20RT60-C	KD-CD10RT60-C
Image Sensor	1/3" PIXEL PC1089 CMOS,600TVL
S/N Ratio	≥48dB
Video output	1.0Vp-p, 75Ω Composite, BNCx1
Minimum illumination	0 LUX(IR ON)
Sync system	2:1 interlace internal Sync.
Shutter	1/50-1/100,000S
LED	24 PCS 5
IR Distance	10-15m
Lens Mount	lens 3.6/6mm
Operating Temperature	Indoor: -20 º C to 50 º C
Power	12V DC 50/60Hz 300mA
Packing List
1X5CH Power Distribution Wire
1X Special Camera Power
4XSpecial Camera Bracket
4x18m BNC Wire
