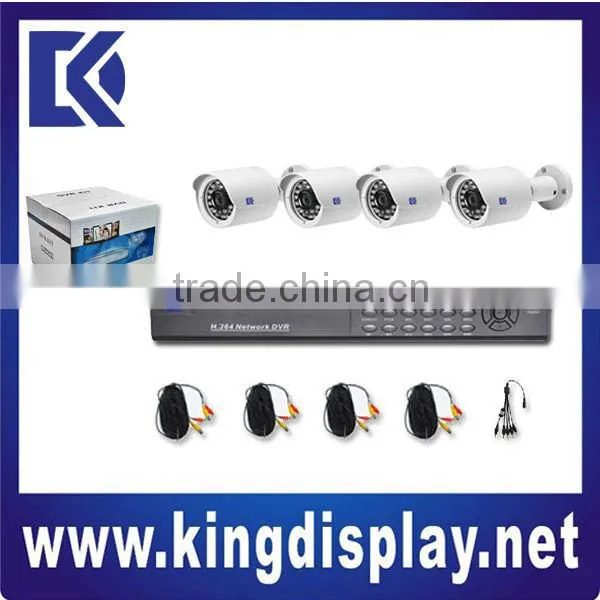

H.264 4CH DVR With 800TVL Camera Kit

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

K&D

Model Number:

KD-A7604CS-C3

Shenzhen Guowei Security Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name K&D

Model Number KD-A7604CS-C3

Specifications

4CH DVR with 800TVL Camera Kit
1X5CH Power Distribution Wire
1X Special Camera Power
4XSpecial Camera Bracket
4x18m BNC Wire

H.264 4CH DVR with 800TVL Camera Kit

1X5CH Power Distribution Wire
1X Special Camera Power
4XSpecial Camera Bracket
4x18m BNC Wire

Model	KD-A7604CS-C3
DVR Feature.
Channel	4ch
VGA Output	1ch
Video Input / Output	NTSC / PAL/SECAM: BNC 4CH In / 1CH Out
Audio Input / Output: In	In: RCA 4CH Out: RCA 1CH
Video Output	Support HD VGA and BNC simultaneous output
Recording Resolution	D1/CIF
Video Compression	H.264
Audio Compression	G711A
Hard Disk Capacity	SATA x 2 up to 2TB
Mobile Phone	Support Symbian, Windows CE, iPhone, Google Android and BlackBerry
Network Interface	RJ45port 10/100Mbps
Operating Environment	-10 º C ~ +40 º C /10~90%RH
Power Supply	DC 12V/3A
Dimension	390mm X 310mm X 120mm(W X D X H)
Weight	5.8KG (without HDD)
Camera Feature
Camera Model	KD-CW19RT85-C
Image Sensor	1/3" CMOS Sensor ,850TVL
S/N Ratio	≥52dB
Video output	1.0Vp-p, 75Ω Composite, BNCx1
Minimum illumination	0 LUX(IR ON)
Sync system	2:1 interlace internal Sync.
Shutter	1/50-1/100,000S
LED	24 PCS 5
IR Distance	10m
Lens Mount	lens 3.6/6mm
Operating Temperature	Indoor: -20 º C to 50 º C
Power	12V DC 50/60Hz 300mA
Packing List
1X5CH Power Distribution Wire
1X Special Camera Power
4XSpecial Camera Bracket
4x18m BNC Wire
