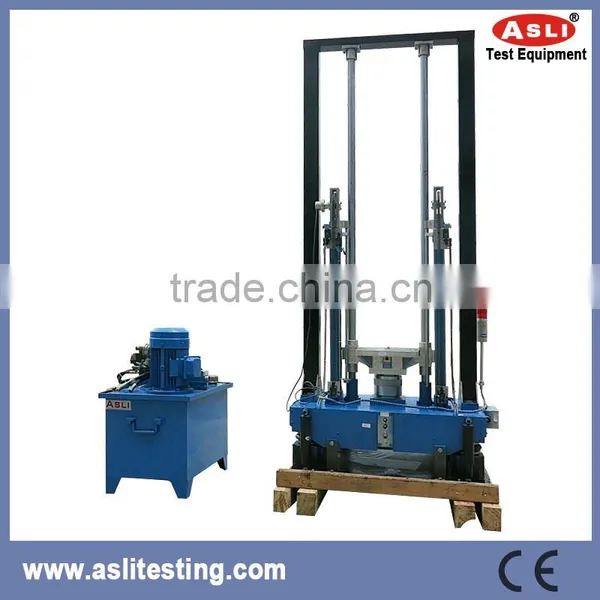

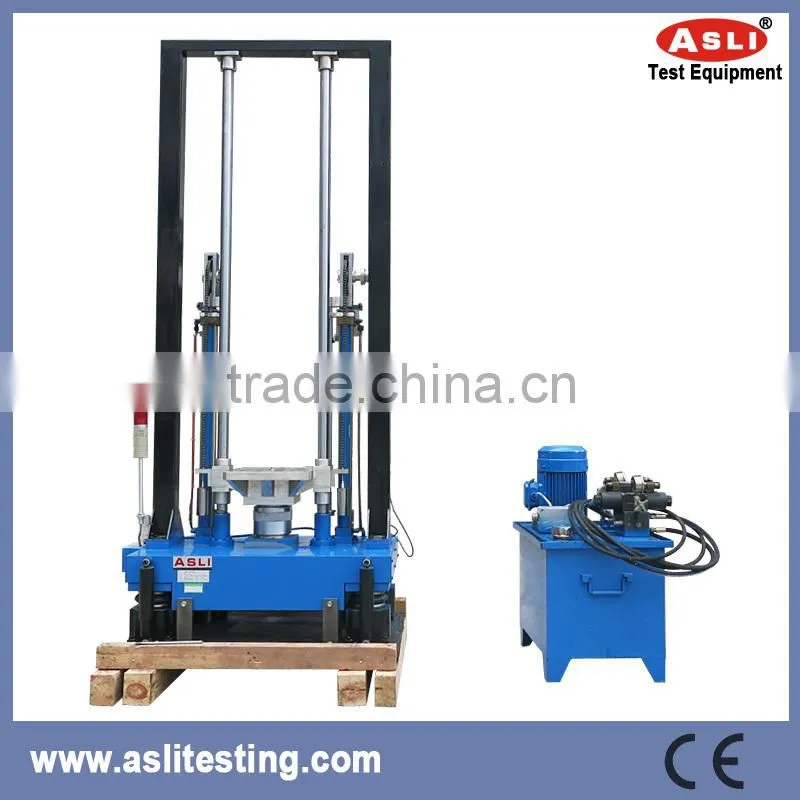

Half sine wave shock testing
1. Introduction
With the rapid development of the military and electronic components industry, the impact of environmental testing equipment for extraordinary large energy have certain requirements. thus, our company actively researched and developedhigh impact acceleration testand impact test systemadapt to this kind of demand, these equipments aredesigned for electronic components, instruments and machinery products for simulationshock environment test equipment.Thistest equipment in line with the standard GJB360A-96-213 mechanical shocktest conditionsand UN38.3, GB/T2423.5-1995 the electrical and electronic products environmental test procedure test Ea: basic impact test method and the IEC68-2-27, test the Ea: shock "and" MIF - STD202F "specification for impact test requirements.

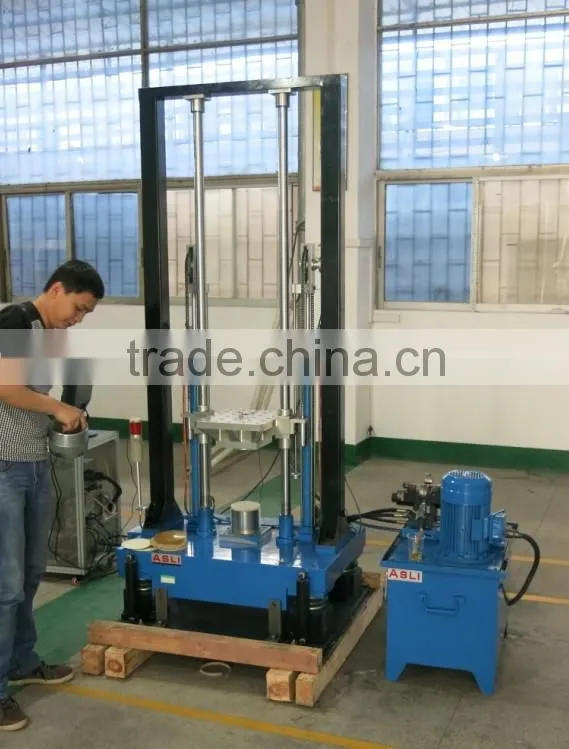

2. Features:
Avoid secondary shock device: Impacttable be lift to the setting height and falling free while get impact instruction, after the table impact and rebound, hydraulic stop the plunger, and the bounce table will be also stopped, no longer fall and secondary impact, the impact of the data obtained is accurate.
Digital setting impact height and automatic rising: impact table automatically be lift to setting height by the hydraulic system,high control accuracy.
1. Digital control system, showing the impact waveform while impacting.
2. Good structure design.
3. Impact table withoutresonance, shock data accurately.
4.Hydraulic lifting mechanism, steady lifting.
5.Two pillar for precision guide to ensure that the platform lift smooth, guide ring containing gas-liquid brake device and the control precision.
6.With peak sawtooth wave, trapezoidal waveexpanding function (Optional).
7.The measuring system can automatically capture the impact process, can record, preserve the whole testing process.
8.With monitor function while testing, meanwhile can offer full waveform monitor mode
3. Half sine wave shock testing Specifications :
Model |
SS-5 |
SS-10 |
SS-25 |
SS-50 |
SS-100 |
SS-200 |
SS-400 |
|
Max. Load Capacity (Kg) |
5 |
10 |
25 |
50 |
100 |
200 |
400 |
|
Bench Size (mm) |
120×120 |
200×200 |
350×350 |
450×450 |
650×650 |
750×750 |
850x850 |
|
|
Acceleration of shock peak value (m/s2) |
Half Sine Wave |
150~15000 |
150~15000 |
150~15000 |
150~6000 |
150~6000 |
150~3500 |
150~1500 |
Trapezoid Wave |
300~1000 |
300~1000 |
300~1000 |
300~1000 |
300~1000 |
300~1000 |
300~500 |
|
Sawtooth Wave |
150~1000 |
150~1000 |
150~1000 |
150~1000 |
150~1000 |
150~1000 |
150~500 |
|
Pulse width |
Half Sine Wave |
0.5~18 |
0.6~18 |
0.8~25 |
1.5~30 |
1.5~30 |
2~30 |
6~30 |
Trapezoid Wave |
6~12 |
6~12 |
6~18 |
6~12 |
6~12 |
6~12 |
6~12 |
|
Sawtooth Wave |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
|
Drive Mode |
Mechanical drive |
Hydraulic drive |
||||||
|
External Dimension WxHxD (mm) |
800x2200 x900 |
800x2200 x900 |
850x2250 x950 |
1000x2600 x1300 |
1100x2700 x1400 |
1300x2700 x1600 |
1300x2700x1650 |
|
WEIGHT (Kg) |
600 |
700 |
900 |
2600 |
3300 |
4000 |
4500 |
|
Hydraulic Oil |
No #46 hydraulic oil |
|||||||
Power |
AC 380V 50/60HZ |
|||||||
4. Accessories
1. Impact table one pic
2. Controller of impact table one set
3. Voltage type acceleration sensor one set
4. Cables (power cable, output cable) one set
5. Industry LCD computer,printer one set
6. Attached documents one copy
Remark: One set fixture can be customized for customer (Optional)
5.After-sale service:
Feedback within 2 hours, and offer solution in 48 hours and help to solve the problems.
6.Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.Acceleratuion Shock Test Equipment is our star products , and we had obtained the CE certification for this machine.
ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
