Specifications
h.264 network 4channel cctv dvr;700tvl ir waterproof cctv camera;
special designed box;
full pack accessories;
low price.
cheap dvr kit package 8pcs 700tvl camera and 8ch mini dvr
Model |
KD-D0408DS-C3 |
|
System | ||
Main Processor |
Embedded processor |
|
Operating System |
Embedded LINUX |
|
Video | ||
Input |
8 channel, BNC |
|
Standard |
NTSC(525Line, 60f/s), PAL(625Line, 50f/s) |
|
Display | ||
Interface |
1 VGA, 1 TV, BNC |
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
Display Split |
1/4/8/9 |
|
Privacy Masking |
4 rectangular zones (each camera) |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Recording | ||
Video/Audio Compression |
H.264 / G.711 |
|
Resolution |
D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120) |
|
Record Rate |
Main Stream: |
D1(1~25/30fps) |
Extra Stream |
CIF/QCIF(1~25/30ps) |
|
Bit Rate |
48~4096Kb/s |
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
Video Detection | ||
Trigger Events |
Recording, Tour, Video Push, Email, FTP, Buzzer & Screen tips |
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|
Playback & Backup | ||
Sync Playback |
1/4/9 |
|
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
|
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
Backup Mode |
USB Device / Network |
|
Network | ||
Ethernet |
RJ-45 port (10/100M) |
|
|
Network Functions
|
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Storage | ||
Internal HDD |
1 SATA port, up to 4TB |
|
Auxiliary Interface | ||
USB Interface |
2 ports (1 Rear), USB2.0 |
|
General | ||
Power Supply |
DC12V/2A |
|
Power Consumption |
10W(without HDD) |
|
Working Environment |
-10 ~+55°C / 10~90%RH / 86~106kpa |
|
Dimension(W×D×H) |
Smart 1U, 205mm×205mm |
|
Weight |
0.524kg |
|
Camera Feature | ||
Camera Model |
KD-CW19RT85-C |
|
Image Sensor |
1/3" CMOS Sensor,850TVL |
|
S/N Ratio |
≥52dB |
|
Video output |
1.0Vp-p, 75Ω Composite, BNCx1 |
|
Minimum illumination |
0 LUX(IR ON) |
|
Sync system |
2:1 interlace internal Sync. |
|
Shutter |
1/50-1/100,000S |
|
LED |
24 PCS |
|
IR Distance |
10m |
|
Lens Mount |
lens 3.6/6mm |
|
Operating Temperature |
Indoor: -20 º C to 50 º C |
|
Power |
12V DC 50/60Hz 300mA |
|
Packing List | ||
2X5CH Power Distribution Wire | ||
2X Special Camera Power | ||
8XSpecial Camera Bracket | ||
8x18m BNC Wire | ||

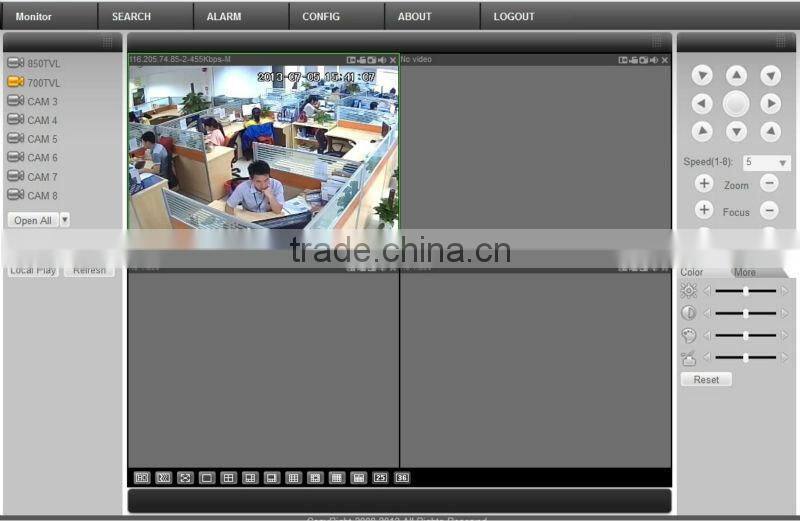

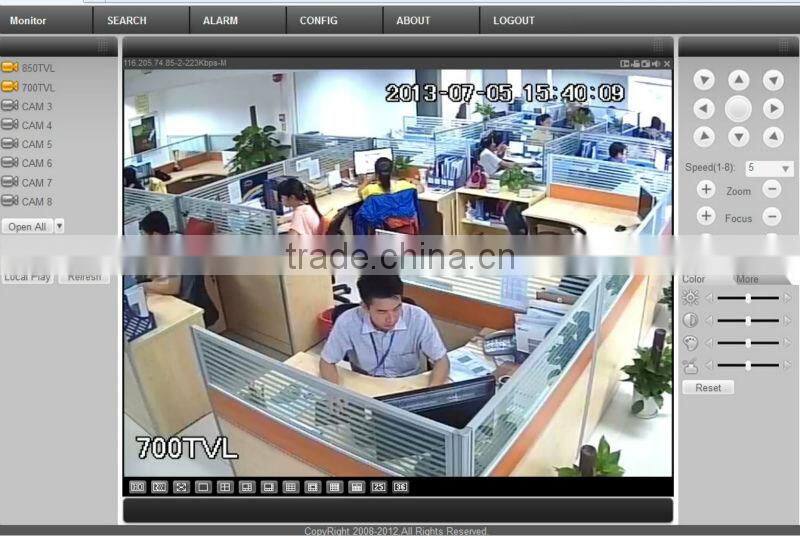

Demo pictures:
Service
according to client's order quantity Our service:
1.Good Reply .Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM.any your idea on camera we can help you to design and put it into products
3.Warranty.2-years warranty
4.Shipping . We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS .
and once we get your order, we can find the lowest shipping cost for your order, Shipping cost are quoted under your requirements.
As a leading professinoal manufacture in China, we always put quality on the first place, put customer on the first place.Choose K&D Choose professional.
