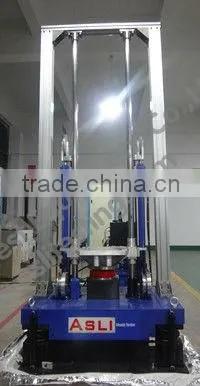

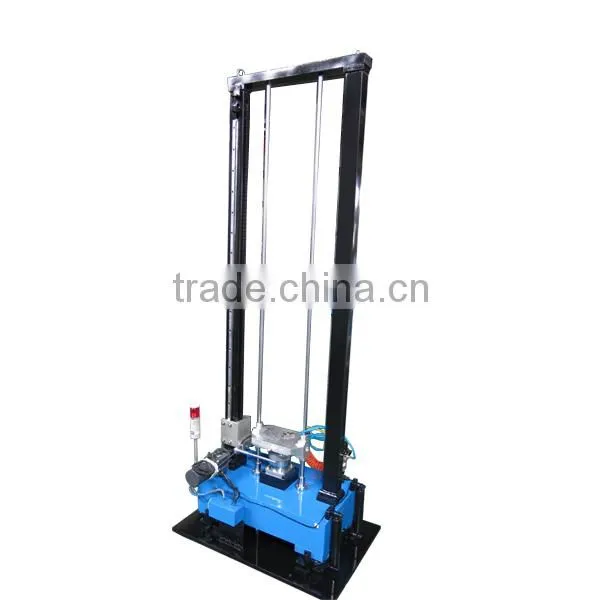

Help CenterAcceleration Mechanical Shock Tester
Related Products
-
SS-100 Acceleration Mechanical Shock TesterUS$ 5,000 - 50,000MOQ: 1 Set -
High Quality Mechanical Shock Tester ManufactureUS$ 20,000 - 50,000MOQ: 1 Set
-
SS-5 Acceleration Mechanical Shock TesterUS$ 23,500 - 50,000MOQ: 1 Set
-
Acceleration Mechanical Shock TesterUS$ 20,000 - 835,000MOQ: 1 Set
-
Shock and Vibration Testing ChamberUS$ 1,500 - 2,200MOQ: 1 Set
Acceleration Mechanical Shock Tester application:
Acceleration Mechanical Shock Tester is mainly used for small products for impact test, to assess the product’s ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
Acceleration Mechanical Shock Tester features:
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6.Good Safety performance.
7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves;
Acceleration Mechanical Shock Tester technical parameters:
Model |
SS-5 |
SS-10 |
SS-25 |
SS-50 |
SS-100 |
SS-200 |
SS-400 |
|
|
Max. Load Capacity (Kg) |
5 |
10 |
25 |
50 |
100 |
200 |
400 |
|
Bench Size (mm) |
120×120 |
200×200 |
350×350 |
450×450 |
650×650 |
750×750 |
850x850 |
|
|
Acceleration of shock peak value (m/s2) |
Half Sine Wave |
150~15000 |
150~15000 |
150~15000 |
150~6000 |
150~6000 |
150~3500 |
150~1500 |
|
Trapezoid Wave |
300~1000 |
300~1000 |
300~1000 |
300~1000 |
300~1000 |
300~1000 |
300~500 |
|
|
Sawtooth Wave |
150~1000 |
150~1000 |
150~1000 |
150~1000 |
150~1000 |
150~1000 |
150~500 |
|
Pulse width |
Half Sine Wave |
0.5~18 |
0.6~18 |
0.8~25 |
1.5~30 |
1.5~30 |
2~30 |
6~30 |
|
Trapezoid Wave |
6~12 |
6~12 |
6~18 |
6~12 |
6~12 |
6~12 |
6~12 |
|
|
Sawtooth Wave |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
|
Drive Mode |
Mechanical drive |
Hydraulic drive |
||||||
|
External Dimension WxHxD (mm) |
800x2200x900 |
800x2200x900 |
850x2250x950 |
1000x2600x1300 |
1100x2700x1400 |
1300x2700x1600 |
1300x2700x1650 |
|
Weight (Kg) |
600 |
700 |
900 |
2600 |
3300 |
4000 |
4500 |
|
Hydraulic Oil |
No #46 hydraulic oil |
|||||||
Power |
AC 380V 50/60HZ |
|||||||
