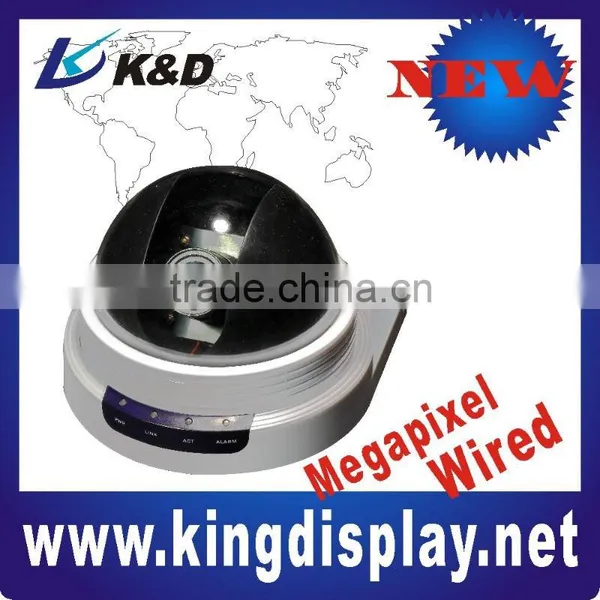

Small Size 2Megapixel CCTV Wireless Dome IP Camera

Small Size 2Megapixel CCTV Wireless Dome IP Camera thumbnail-1
Small Size 2Megapixel CCTV Wireless Dome IP Camera photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KD/OEM
Model Number:
KD-HD62XC72
Contact Supplier Request Quote Chat Now
Shenzhen Guowei Security Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KD/OEM
Model Number KD-HD62XC72
Type IP Camera
Style Dome Camera
Sensor Other, CMOS, 1/3'' 2-megapixels CMOS sensor
Technology Infrared
Special Features Other, wireless, wifi

Specifications

>CMOS 2Megapixel Dome IP Camera
>wired/wireless ip camera
>security cctv ip dome camera
>small size network ip camera

>CMOS 2Megapixel Dome IP Camera
>wired/wireless ip camera
>security cctv ip dome camera
>small size network ip camera

1/3' 2-megapixels CMOS sensor,2 Megapixel Dome CCTV IP Camera Equipmentminimum illumination 1 Lux,

Video Resolution:1600x1200,1280x960,1280x720, 800x600,

6mm/8mm lens optional



KD-HD62XC72

Wired

KD-HD62XC72-W

Wireless

Sensor

1/3'' 2-megapixels CMOS sensor, Minimum illumination 1 Lux

Lens

6mm/8mm lens optional

Video Compression

H.264 Main Profile @Level 3/MJPEG optional

IR-CUT

supports

Video Resolution

Primary stream: 1600x1200,1280x960,1280x720

Secondary stream: 800x600,400x288,192x144

Video Parameters

Brightness, hue, contrast, saturation and image quality

Streaming Format

Video Streaming or Audio &Video composite Streaming

Video Definition

Primary stream: :1280x720

Secondary stream: 640x360,320x280

Video Frame Rate

Primary Stream:1~12.5fps(1280x960),1~25fps(1280x720) Secondary stream: 1~25fps

Video Compression Bit rate

32Kbps~16Mbps

Audio Input

1channel,linear input, Input Impedance:1KOhms

Audio Compression

G.726

Audio Output

1channel, linear output,

two-way talk input

Support Audio two-way talk

Image Encrypting

Digital watermarking, AES Encrypt

Local recording

SD card recording and snapshot

Support IP-San storage

Supported Protocols

TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, Ipsec, UpnP, RTP, RTCP,IPV4

System Interface

10Base-T/100Base-TX Ethernet port

1 RS485

Supports smart mobile monitor that is based on  Windows Mobile, Symbian and  iPhone platforms

Alarm input

1channel on/off input, support NO (open) or NC (closed)

RFID technology,link with wireless detectors

Alarm output

1 channel on/off, 120VAC 1A/24VDC 1A

Power supply

DC 12V 1A

Power consumption

< 8W

Work temperature

-10~55 °C

Storage temperature

-20~70 °C

Work humidity

RH85%MAX

Dimension

Dimension:164mm * 137mm * 113mm

Package:

10pcs/carton, 13kg/carton, 930x270x365 mm

Net weight

0.56kg
