Specifications

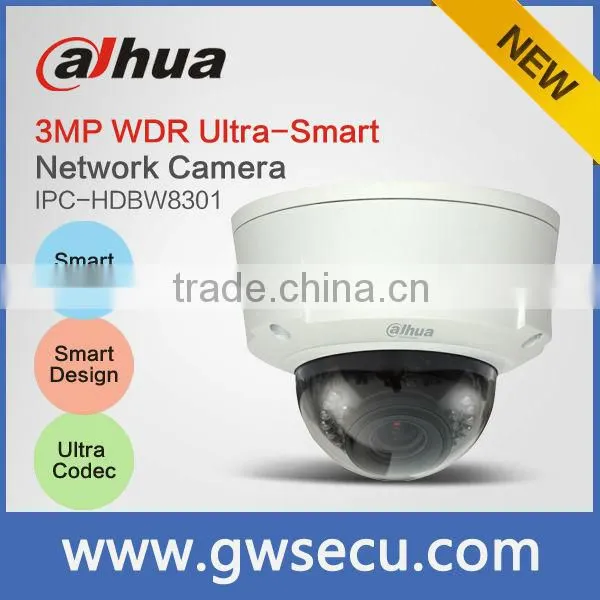

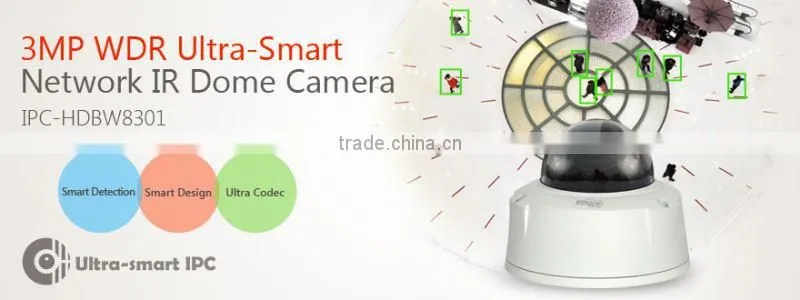

-Dahua 3MP WDR Ultra-Smart Network Camera IPC-HDBW8301
-Smart IR 20m, WDR, 3D DNR, Ultra Defog, IP66, IK10, Memory card, POE

Utral Codec fisheye ip camera with battery outdoor ip camera full hd 1080p 3mp fisheye ip camera

ONVIF Dahua NVR 3204-P 4/8/16 CH 2HDD PoE



Outdoor 2MP 1080P Dahua IP PTZ Dome Camera



DAHUA HDCVI DVR HCVR5108C 8CH Smart 1U



H.264 HDMI 4CH 2U Effio 960H DVR HDCVI DVR		Waterproof ir Bullet  Magapixel IP Camera 5mp		2MP1080P WDR Vandal-Proof IR Dome Camera









==================================================================================================





GUOWEI is Dahua authorized company to sale their products to oversea.

We supply dahua ip camera, dahua nvr, dahua hdcvi camera/dvr,dahua dvr



Please Login For More Products Details:

Features:

>1/3" 3 Megapixel progressive scan CMOS
>Support H.264/MJPEG dual codec
>Smart triple streams supported
>Max 25/30fps@3MP(2048x1536)
>Ultra WDR (Wide Dynamic Range) up to 120dB
>Ultra 3D DNR
>Ultra Defog, ROI, EIS
>Smart IR technology
>Smart detection:
 Face detection
 Tripwire detection
 Intrusion detection
 Scene change detection
>100/1000M Base-T Ethernet,
>Micro SD memory, IP66, IK10, PoE,



Specifications:

Model		IPC-HDBW8301
Camera
Image Sensor		1/3” 3Megapixel Aptina CMOS
Effective Pixels		2048(H)x1536(V)
Scanning System		Progressive
Electronic Shutter Speed		Auto/Manual 1/3~1/10000
Min. Illumination		Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on)
S/N Ratio		More than 50dB
Video Output		1 port
Camera Features
Max. IR LEDs Length		20m, Smart IR technology
Day/Night		Auto(ICR)/Color/B/W
Backlight Compensation		BLC / HLC / WDR (120dB)
White Balance		Auto
Gain Control		Auto/Manual
Noise Reduction		3D
Privacy Masking		Up to 4 areas
EIS		Support
Ultra Defog		Support
Lens
Focal Length		2.7 -12mm
Max Aperture		F1.4
Focus Control		Manual
Angle of View		H: 82°~25°
Lens Type		Manual/ Auto Iris(DC)
Mount Type		Board-in Type
Video
Compression		H.264 / MJPEG
Resolution		3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) /D1(704×576) / CIF(352×288)
Frame Rate	Main Stream	3M(1~20fps)/1080P/720P(1~25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
	Third Stream	1080P/720P/D1(1 ~ 25/30fps)
Bit Rate		H.264: 32K ~ 8192Kbps
ROI		Up to 4 areas
Audio
Compression		G.711a / G.711u
Interface		1/1 channel In/Out
Intelligent Function
Smart detection		Tripwire
		Intrusion
		Scene change
		Missing/Abandoned
		Audio detect
		Face detect
Network
Ethernet		RJ-45 (10/100Base-T)
Wi-Fi		N/A
Protocol		IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility		ONVIF, PSIA, CGI
Max. User Access		20 users
Smart Phone		iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot		Micro SD, Max 64GB
RS485		N/A
Alarm		1/1 channel In/Out
PIR Sensor Range		N/A
General
Power Supply		DC12V/AC24V, PoE(802.3af)
Power Consumption		Max 8W (IR on: +2W)
Working Environment		-20°C~+60°C , Less than 90%RH
Ingress Protection		IP66
Vandal Resistance		IK10
Dimensions		Φ151mm×119mm
Weight		1.25kg

 WEB Browse Interface:

PSS CMS Software Interface:
