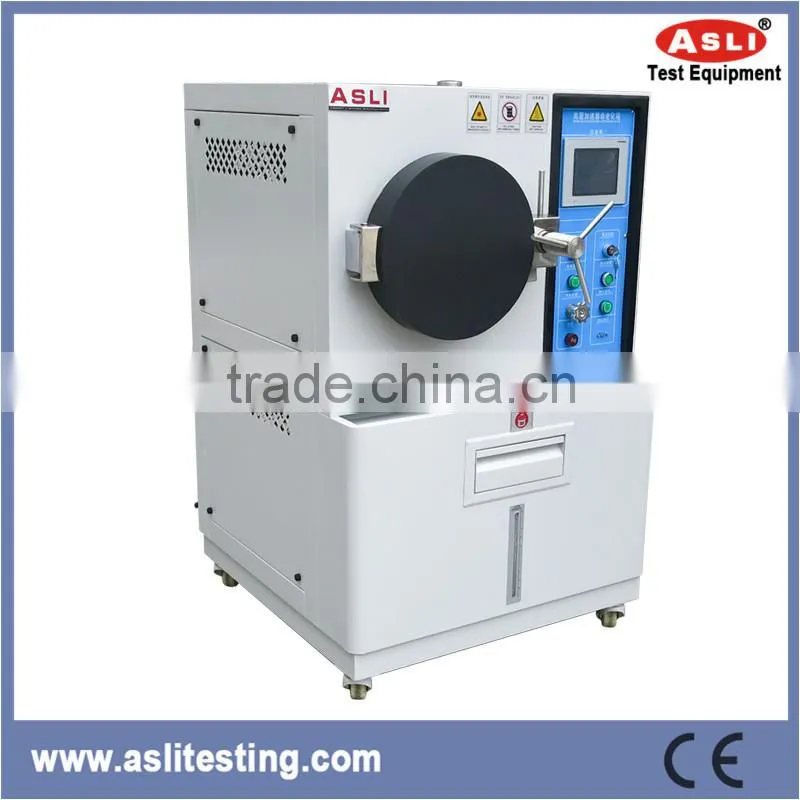

Highly Accelerated Aging Test System(HAST/PCT)
Product Description
|
Highly Accelerated Aging Test System(HAST/PCT) Application:
It's widely applied to the testing of sealing property for multi-layer circuit board,IC sealing pakage,LCD screen,LED,semi-conducter,magnetic materials,NdfeB,rare earths and magnet iron,in which the resistance to pressure and air tightness for above mentioned products can be tested out. |
Highly Accelerated Aging Test System(HAST/PCT) Features
|
1.Automatic adding water function, and automatic filling water upon the water short storage while testing. display. complete. |
|
Safety Device: 1. Safety device for the pot: If the inner box is not closed , the machine can not start 2. Safety Valve: when the inner box's pressure higher than the machine's undertake value, it will self-relieve. 3. Double overheat protection device: When inner box's temperature is too high, it will alarm, and automatic cut off the heating power. 4. Cover protection: The inner box's cover is made of aluminum alloy, can protect the worker from scald. |

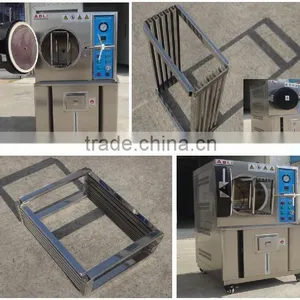

MACHINE VIEW
Pressure Accelerated Aging Test Chamber (HAST) Technical Parameters:
Model |
HAST - 25 |
HAST - 35 |
HAST - 45 |
HAST - 55 |
HAST - 65 |
|
|
Internal Dimension Φ×D (mm) |
300×250 |
350×450 |
450×550 |
550×650 |
650×750 |
|
|
External Dimension Φ×D (mm) |
850×1300×900 |
900×1350×900 |
1000×1480×1000 |
1150×1650×1200 |
1300×1800×1350 |
|
|
Steam Temperature Range |
Steam Temperature Range: 100°C~135°C, (143°C is optional) |
|||||
|
Comparison Table of Temperature, Humidity, Pressure |
|
|||||
Steam Humidity |
70~100%R.H. steam humidity adjustable |
|||||
Steam Pressure(Absolute Pressure) |
101.3Kpa +0.0Kg/cm2~2.0Kg/cm2 ; (3.0Kg/cm2 is special standard) |
|||||
Recursive Device |
Steam in forced-circulation |
|||||
Accessories |
Two layers stainless steel plate |
|||||
Equipment Capacity(L) |
17 |
43 |
87 |
155 |
250 |
|
Powder |
AC220V, 1Φ 3 Lines ,50/60HZ; AC380V ,3 Φ 5 Lines,50/60HZ |
|||||
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
ASLi main products: Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber
(Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber
,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc
"Our Factory View"
"Our Perfect Packing"
"Our Certificate"
Welcome our new and regular customers visit our factory, and any inquiries please feel free to contact us for quotation !
