PCT-35 Pressure Accelerated Aging Test Chamber (PCT)
1.PCT-35 Pressure Accelerated Aging Test Chamber (PCT) Technical Parameters:
Model |
PCT - 35 |
|||||
Internal Dimension Φ×D (mm) |
350×450 |
|
||||
External Dimension Φ×D (mm) |
800×1250×800 |
|||||
|
Temperature Range of Saturated Steam(Operating temperature) |
(Temperature Range of Saturated Steam:100°C~135°C) , Temperature Range: 120°C,100Kpa/ 133°C 200 Kpa;(143°C is special order) |
|||||
|
Relative Pressure/ Absolute Pressure |
Relative pressure: display values indicated on the pressure gauge Absolute pressure: Value that add 100 Kpa based on display values indicated on the pressure gauge (The actual value in the inner box) |
|||||
|
Comparison Table of Temperature, Humidity, Pressure of Saturated Steam |
|
|||||
Humidity of Saturated Steam |
100%RH saturation steam humidity |
|||||
Steam Pressure (Absolute Pressure) |
101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2 is special standard) |
|||||
Recursive Device |
Steam Natural convection circulation |
|||||
Safety Protective Devise |
Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function ) |
|||||
Accessories |
Two layers stainless steel plate |
|||||
Equipment Capacity(L) |
17 |
|||||
Power |
AC 220V(±10%), 1& 3 Lines ,50/60HZ ; |
|||||
PCT-35 Pressure Accelerated Aging Test Chamber (PCT) Features:
1. With of automatic adding water function, and automatic filling water when the water short storage while testing.
2. Automatic operation to complete the end test process, very easy for use.
3. Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and
display.
4. Timer: LED digital timer, when the pot’s temperature reached, then start to time to ensure that the test completely.
5. Accurate pressure: temperature chart always shows the pot’s pressure and relative humidity.
6. Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7. A integrated silical gel door gasket, air tightness is very good, and long service life.
8. Test in the durable and beautiful not contamination after polishing processing
PCT-35 Pressure Accelerated Aging Test Chamber (PCT) Safety device:
1. Safety device for the pot: If the pot door is not closed , the machine can not start
2. Safety Valve: When the pot’s pressure higher than the self-relieving e max. Pressure, it will self-relieve
3. Double overheat protection device: When pot’s temperature is too high, it will be alarm, and meanwhile Automatic
cut off the heating power.
4. Cover protection: The door cover is made of ABS material, can protect the worker from scald.
PCT-35 Pressure Accelerated Aging Test Chamber (PCT) Application :
Pressure accelerated aging test chamber (PCT Chamber) is widely applied for the testing of sealing property
for multi-layer circuit board, IC sealing package, LCD screen, LED, semiconductor, magnetic materials,NdFeB,
rare earths and magnet iron, in which the resistance to pressure andair tightness for above mentioned products
can be tested out.

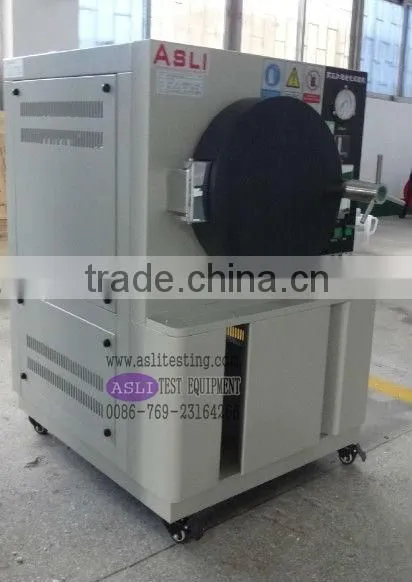

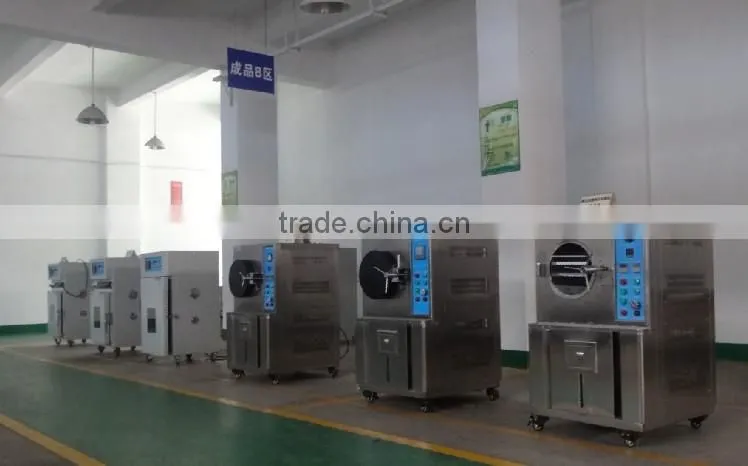

PCT-35 Pressure Accelerated Aging Test Chamber (PCT) Pictures :
...
