Home > Products > D1 IP Camera > IP VANDAL-PROOF DOME CAMERA with varifocal lens 4~9 mm

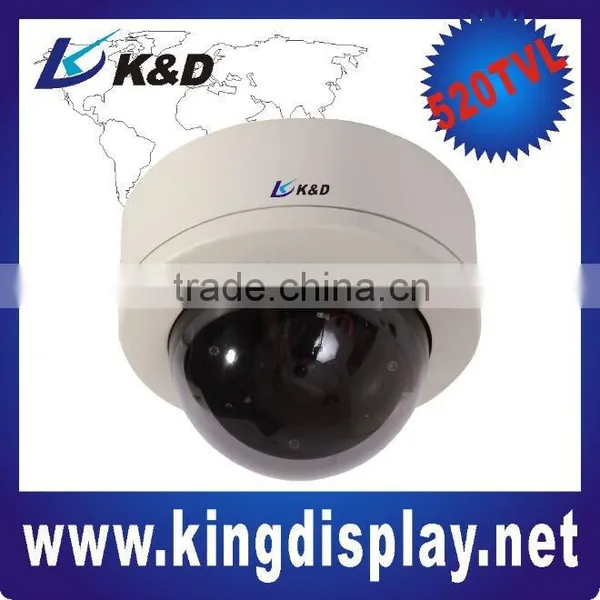

IP VANDAL-PROOF DOME CAMERA with varifocal lens 4~9 mm
- 2000 Unit / Units per Month
- shenzhen
- T/T Credit Card PayPal
- 7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
- 7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
- 7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
- 7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
- Car Camera Wireless Transmitter System For Bus
- 7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Guangdong, China | Brand Name: | K&D | Model Number: | KD-DD50XD48 |
Type: | IP Camera | Style: | Dome Camera | Sensor: | CCD |
Technology: | Infrared | Special Features: | Vandal-proof |
Product Description
Specifications
IP VANDAL-PROOF DOME CAMERA1/3"SONY SUPER HAD II CCD
Video Resolution: D1, HD1, CIF, QIF
build in 4~9 mm lens
IP VANDAL-PROOF DOME CAMERA
1/3"SONY SUPER HAD II CCD
Minimum illumination: 0.1Lux (color)@F1.2
Video Resolution: D1, HD1, CIF, QIF
Build in 4-9mm varifocal lens, Vandal-proof
Features:
-The video is compressed by MJPEG. There are VGA/QVGA/QQVGA three video resolutions optional. User can change some parameters according to their demands to satisfy his own visual prefer.
-With built-in Microphone, it enables user to monitor the sound on the site. User can also connect this equipment to the speaker, and it supports two-way intercom function.
-It was equipped with pan/tilt function, horizontally 270°and vertically 120°. Its outlook is smart, easy and convenient to install in many sites.
-It adopts the TCP/IP network protocols and has inner web server. Users can browse video through IE and other browsers. Data is transferred through one port; it is easy for user to do the network setting.
-Support 802.11b/g/n protocol, can build up wireless monitoring.
-Supports UPNP, port forwarding automatically on the router.
-Motion detection and alarm pin can be connected to external sensors to detect environmental situation.
-Alarming record can be stored by email, FTP server. External alarm can be open when detecting unusuality. It also sends alarm info to the alarm server.
-Infrared LED for night vision covers 5m area, to realize 24 hours monitoring.
-Support mobile phone to view
-Support three level of user authority.
-Support upgrading online.
-Manufacture attached a label at the bottom of each IP Camera, it include Device ID, DDNS. When IP Camera is connected to the internet, this URL can be used to visit the device.
-Manufacture provides free software, support Multi-view, Long time recording, video replay etc.
KD-DD50XD48 | 480TVL, 0.3Lux (color)@F1.2 Wired |
KD-DD50XD60 | 600TVL, 0.1Lux (color)@F1.2 Wired |
Image sensor | 1/3" Sony Super HAD II CCD |
Video compression | H.264 Main Profile @Level 3/MJPEG |
Video Definition | PAL:176X144(QCIF),352*288(CIF),704*288(2CIF),704*576(D1) NTSC:176X120(QCIF),352*240(CIF),704*240(2CIF),704*480(D1) |
Video Frame Rate | PAL: 1-25fps NTSC:1-30fps |
Video Bit rate | 32Kbps~16Mbps |
Audio Compression | G.726 , 32K bits |
Audio Output | 1channel, linear output, |
Audio Input | 1 channel external MIC interface( internal sound pick-up) |
Title OSD | Supports channel name, date, and video stream information overlay; OSD location is adjustable |
SD Card Interface | Support Video and Snapshots stored ,SD2.0 SDHC standard and maximum capacity:32GB |
Network Interface | Self-adaption 10/100Mbps RJ45 port |
Network protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
Serial port | 1 channel RS485 |
Alarm Input | 1channel input, NO/NC modes adjustable |
Alarm Output | 1 channel output, 120VAC 1A/24VDC 1A |
E-mail Alarm | Support |
FTP Protocol | Support |
RTSP Protocol | Support |
Mobile Monitor | Supports smart mobile monitor that is based on Windows Mobile, Symbian and iPhone platforms |
Working Temperature | -10°C - +55°C |
Working Humidity | 0% - 90% |
Power Input | DC12V/1.0A |
Power Consumption | 8W (MAX) |
Dimension | 113mm(H)*141mm(Φ) |
Net weight | 0.6kg |
Package: | 8pcs/carton, 12.4kg/carton, 580x430x340mm |
Warranty:
Two year to provide fixing, and one month to provide changing new. The warranty is based on the broken not caused by human being.
After-sale service
Products purchased through K—D, under warranty may be for
replacement or repair by following steps:
1. Contact K—D customers’ service.
2. You must provide the problems (including original model, order number, order date and the unique number on the IP camera).
3. You must be sure that the mark clears in the IP camera and the unique number in the package.
