Specifications
H.264 Main Profile @Level 3/ MJPEG1/3" 1.3-megapixel progressive-scan CCD
18X optical zoom &12X digital zoom
OEM&ODM service
KD-HP76XD18 |

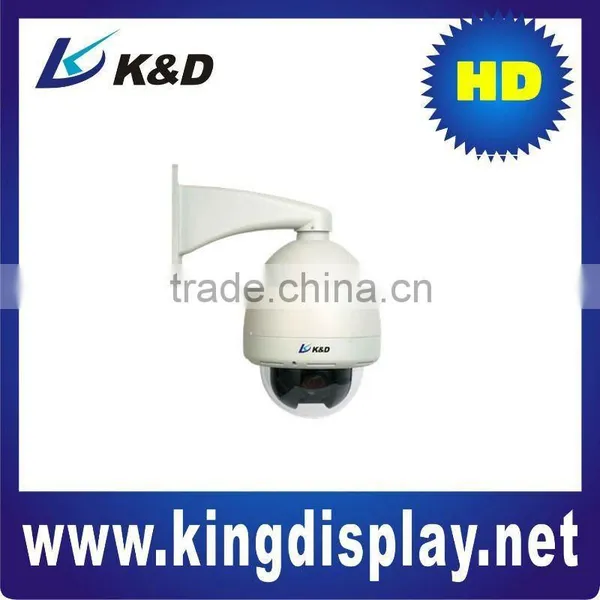

CCD Megapixel IP High Speed Dome with 18x zoom camera |
Network Spec: | |
Video Compression |
H.264 Main Profile@ Level 3/ MJPEG |
Video Definition |
Primary stream: 1280x960, 1280x720 Secondary stream: 640x480,640x352 |
Video Frame Rate |
Primary Stream:1~15ps(1280x960),1~25fps (1280x720) Secondary stream: 1~25fps |
Video Bit rate |
32Kbps~16Mbps CBR/VBR |
Network protocol |
TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
Mobile Monitor |
Supports smart mobile monitor that is based on Windows Mobile, Symbian and iPhone platforms |
Streaming Format |
Video Streaming or Audio &Video composite Streaming |
IR-CUT |
Support |
Audio |
Two Way Audio connector(Optional) |
Device Storage |
Micro SD(TF),SD 2.0 SDHC standard, maximum storage:32G |
Network Interface |
Self-adaption 10/100Mbps RJ45 port |
Alarm In |
1-channel input, NO/NC modes adjustable(Optional) |
Alarm Out |
1-channel output, 120VAC 1A/24VDC 1A(Optional) |
E-mail Alarm |
Support |
FTP Protocol |
Support |
RTSP Protocol |
Support |
Speed Dome Spec: | |
preset |
118 presets, can be labeled with editable title |
Pan rotation range |
360° (endless) |
Tilt range |
180°(auto flip) |
Manual pan speed |
0.1°—250°/s |
Manual vertical speed |
0.1°—150°/s |
IP Grade |
IP66 standard |
Title OSD |
Supports channel name, date, and video stream information overlay; OSD location is adjustable |
Baud rate (RS485) |
2400/4800/9600/19200bps |
Camera Spec | |
Zoom Camera |
Hitachi , 18 x optical zoom, 12x digital zoom |
Image Sensor |
1/3” 1.3-Megapixel progressive-scan CCD |
Min. Illumination |
day: 0.1 Luxnight: 0.01 Lux |
Zoom Length |
4.7-84.6mm, F1.6 ~F2.8 |
Case Size |
6 inch dome (aluminum) |
Environmental | |
Operating Temp |
-10-+55 |
Operating Humidity |
0 ~ 90% |
Power Supply |
AC 24V |
Power Consumption |
35W(MAX) |
Dimension |
Φ212 *283mm |
N.W |
3kg |
Send Inquiry to This Supplier
