Photovoltaic module testing equipment (sealing property testing) / (PCT/HAST) Pressure Accelerated Aging Test Chamber/ Laborator Pressure Accelerated Aging Test Chamber
1. Pressure Accelerated Aging Test Chamber (HAST)Technical Parameters:
Model |
HAST - 25 |
HAST - 35 |
HAST - 45 |
HAST - 55 |
HAST - 65 |
Internal Dimension:Φ×D (mm) |
300×250 |
350×450 |
450×550 |
550×650 |
650×750 |
|
External Dimension Φ×D (mm) |
850×1300×900 |
900×1350×900 |
1000×1480×1000 |
1150×1650×1200 |
1300×1800×1350 |
Steam Temperature Range |
Steam Temperature Range: 100°C~135°C, (143°C is optional) |
||||
Relative Pressure/ |
Relative pressure: display values indicated on the pressure gauge pressure gauge (The actual value in the inner box) |
||||
Steam Humidity |
70~100%R.H. steam humidity adjustable |
||||
Steam Pressure(Absolute Pressure) |
101.3Kpa +0.0Kg/cm2~2.0Kg/cm2 ; (3.0Kg/cm2 is special standard) |
||||
Recursive Device |
Steam in forced-circulation |
||||
|
Safety Protective Devise |
Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function ) |
||||
Accessories |
Two layers stainless steel plate |
||||
Equipment Capacity(L) |
17 |
43 |
87 |
155 |
250 |
Powder |
AC220V, 1Φ 3 Lines ,50/60HZ; AC380V ,3 Φ 5 Lines,50/60HZ |
||||
Pressure Accelerated Aging Test Chamber (HAST) Features:
1.Automatic adding water function, and automatic filling water upon the water short storage while testing.
2.Automatic operation to test process finished, easy to use.
3.Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5.Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6.Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7.A integrated silica gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution
Photovoltaic module testing equipment Safety device:
1. Safety device for the pot: If the inner box is not closed , the machine can not start
2. Safety Valve: When the inner box's pressure higher than the machine's undertake value, it will self-relieve.
3. Double overheat protection device: When inner box's temperature is too high, it will alarm, and Automatic cut off the heating power.
4. Cover protection: The inner box's cover is made of aluminum alloy, can protect the worker from scald.

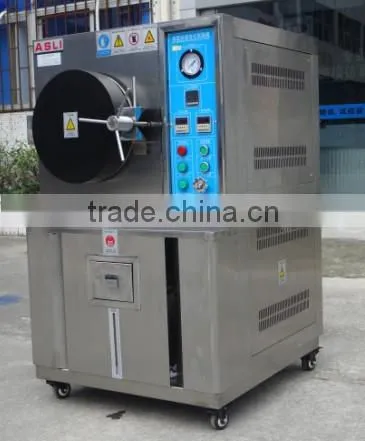

Pressure Accelerated Aging Test Chamber (HAST) Pictures
