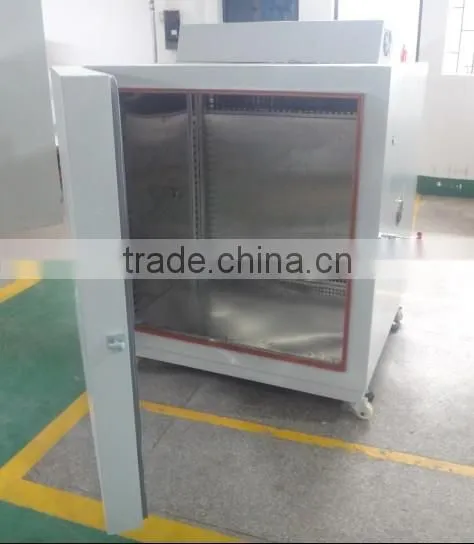

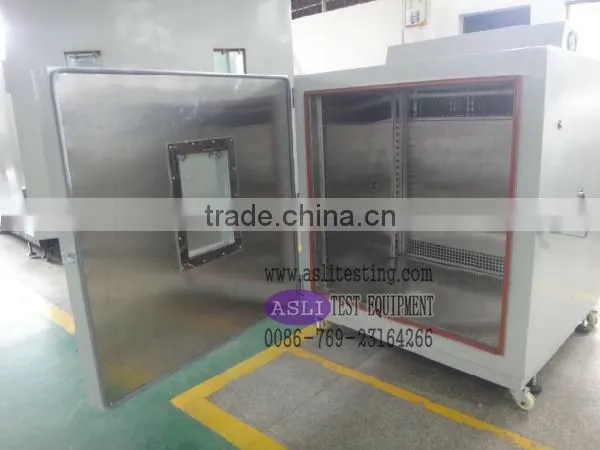

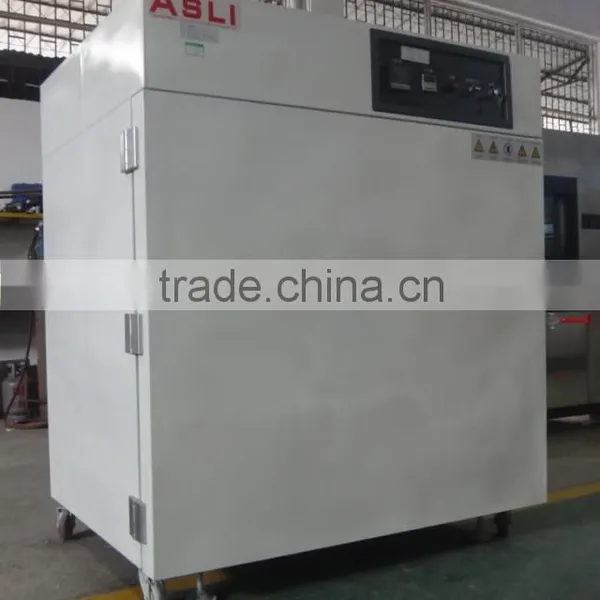

Dry Oven For Industry
Dry Oven For Industry Technical Specifications :
Model |
RHD - 45 |
RHD - 60 |
RHD - 90 |
RHD - 120 |
Internal Dimension W×H×D (mm ) |
450×400×400 |
500×600×500 |
600×900×500 |
800×1200×700 |
External Dimension W×H×D (mm ) |
650×900×550 |
700×1200×650 |
850× 1600×700 |
1200× 1680×900 |
Interior and Exterior Material |
Interior material is SUS 304# stainless steel, exterior is stainless steel or see cold-rolled steel with paint coated |
|||
Temperature Range |
R.T. to 200°C; (300 to 500°C is optional) |
|||
Indication Resolution / Distribution Uniformity of Temperature |
0.1°C/±2.0°C;( When temperature is 100°C) |
|||
Control Accuracy of Temperature |
±0.5°C; |
|||
Temperature Rising Velocity |
Temperature rising velocity: from R.T. to 200°C,needs approx. 35mins |
|||
Control Method |
Micro PID+SSR+Timer |
|||
Storage Shelf |
Two layers |
|||
Viewing Window |
When temperature is RT to 200°C ,with viewing widow When temperature is 200°C to 500°C ,without viewing widow |
|||
Power |
AC 220V 50/60HZ ; AC 380V 50/60HZ |
|||
Dry Oven For Industry Features:
1. Automatic temperature control with digital thermal-sensor.
2. Excellent thermal insulation property of ovens wall, lower energy consumption.
3. Be able to pre-set temperature, digital temperature display with LED panel.
4. Temperature value flashes on indicator when reach preset value.
5. Circulation fan facility to keep even temperature and uniform heating.
Dry Oven For Industry Applications :
High temperature chamber are used to dry, bake and preheat various materials or specimen, by means of hot air circulation method to uniform the temperature distribution.
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 2 hours after get the call.
Service:OEM service,Design service,Buyer lable service.
Short introduction about ASLi factory:
ASLI , as a leading high temperature chamber supplier from china, has more than 25 year’s experience in high temperature chamber manufacture. ASLI boost his own technical team in high temperature chamber R&D, and it also introduces the advance quality control method in high temperature chamber production. Our high temperature chamber series products are in compliance with the industrial standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
