Help CenterHigh Temperature Vacuum Nitrogen Oven
Related Products
-
High Temperature Accelerated Weathering Machine/ Aging Test MachineUS$ 3,000 - 6,500MOQ: 1 Set -
Ozone Aging Test ChamberUS$ 2,000 - 8,000MOQ: 1 Set
-
Rubber Ozone TesterUS$ 2,000 - 8,000MOQ: 1 Set
-
Industry Heating/drying ChamberUS$ 1,500 - 5,000MOQ: 1 Set
-
High Presion Ozone Testing ChamberUS$ 2,500 - 3,200MOQ: 1 Set
High Temperature Vacuum Nitorgen Oven Applications
High Temperature Vacuum Nitorgen Oven Applications :
High temperature vacuum nitrogen oven used in the electronics industry, electrical, communications, hardware, chemical, sports equipment, printing, pharmaceuticals, footwear, automotive spare parts and other industrial for baking, drying, preheating and tempering, aging purposes.
High Temperature Vacuum Nitrogen Oven Features:
1. Microprocessor temperature controller
2. Rapid sterilization time
3. Forced air convection
4. Auto stop when temperature over limit
5. Air inlet adjustment & timing control, the device is equipped with imported nitrogen flow meter, and with a quick plug nitrogen filling interface, convenient nitrogen filling and control the nitrogen flow.
High Temperature Vacuum Nitorgen Oven Technical Parameters :
Model |
RHD - 45 |
RHD - 60 |
RHD - 90 |
RHD - 120 |
Inner Dimension W×H×D(mm ) |
450×400×400 |
500×600×500 |
600×900×500 |
800×1200×700 |
Outer Dimension W×H×D (mm ) |
650×900×550 |
700×1200×650 |
850× 1600×700 |
1200× 1680×900 |
Inner and Outer Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
|||
Temperature Range |
RT~200°C, (300°C~500°C is special optional) |
|||
|
Indication Resolution /Distribution Uniformity of Temperature |
0.1°C/ ±2.0°C;(When temperature is 100°C) |
|||
Control Accuracy of Temperature |
±0.5°C; |
|||
Temperature Rising Velocity |
Temperature rising speed rate: RT~200°C; Approx. 35mins |
|||
Control Method |
Micro PID+SSR+Timer |
|||
Nitrogen Device |
Nitrogen in-out interface and pressure relief valve on the back of equipment, |
|||
Storage Shelf |
two layers |
|||
Observation Glass Window |
When temperature is RT-200°C ,with observation glass widow When temperature is 200°C-500°C ,without observation glass widow |
|||
Power |
AC 220V , Single Phase 3 Lines,50/60HZ ; AC 380 V ,3 Phase 5 Lines,50/60HZ |
|||

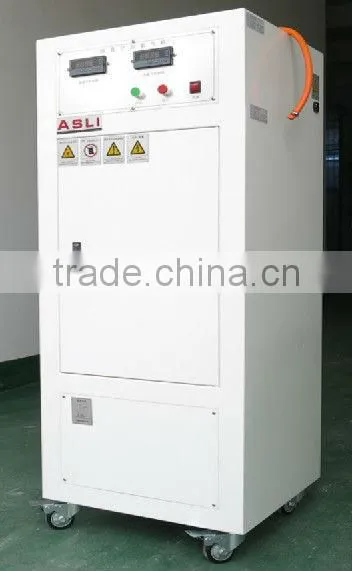

High Temperature Vacuum Nitorgen Oven Pictures:
...
