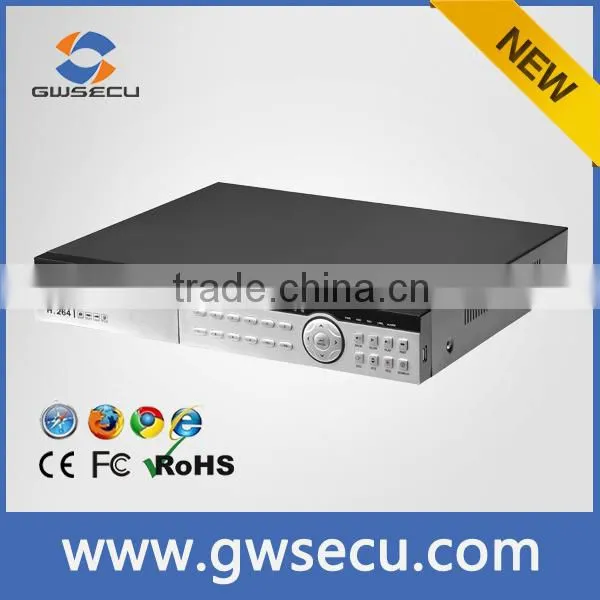

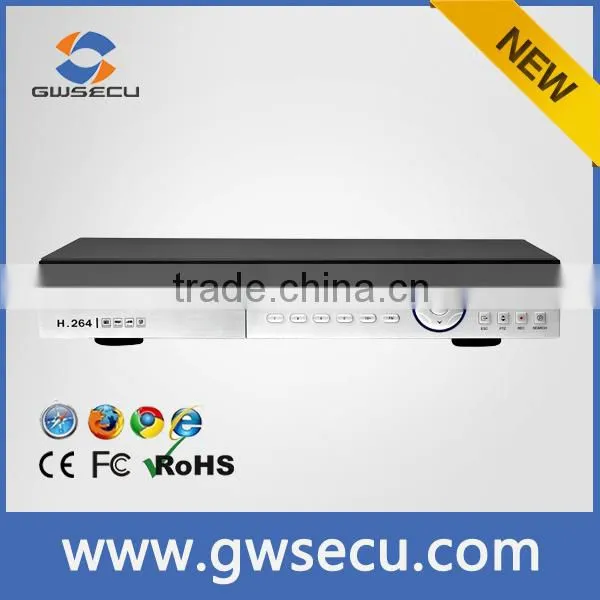

GWSECU Onvif 720P AHD 16 channel DVR
Main Features
>Compression algorithm upgraded to H.264 High Profile, more advanced video compression technique makes the code stream lowered at least 30%.
>Completely new graphics operating interface design, to let you experience easily and conveniently.
>SDVR combines the functions of DVR/HVR/NVR together, multi-mode input ( support analog video, Analog HD video, network HD video input). No need to worry how to be compatible with analog system, to choose DVR or HVR, just one SDVR can work.
>Super Strong processing capacity: can realize 16CH AHD 720P real time recording and 16CH AHD playback synchronously.
>Support main stream and extra steam encode synchronously. Main stream is for local storage to maintain the image quality, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
>Support super cloud service (this function is optional, specialized website forsuper cloud, one step to do remote control easily & conveniently without any complicated setting.
>Powerful net service(support DHCP/PPPOE/FTP/DNS/DDNS/ARSP()/NTP/UPNP/EMAIL/IP authority/IP search/alarm center, etc), complete enclosure(WEB/CMS/SDK), to easily achieve interconnection.
>Built-in IE plugs, no need to install from CD disk independently.
>Support 3G & WIFI extension.
>Support multi-browser(IE/Chrome/Firefox/Safari).
>Support kinds of mobile monitor(iPhone, Android)
>Multiplex operation : Preview, recording, playback, backup, network live, mobile phone view; all operations are independent of each other.
>Support many recording modes: Auto-continuing recording, timing recording, motion detection recording.
>Playback mode support normal play, speed play, fast back play, manual and single-frame play.
>Many backup device: USB flash disk, USB portable HDD and network.
>Support alarm triggered recording will send alerts matter (some models support sending picture) to the designated email.
>Support pre-alarm recording (before 10 sec), not lose any suspicious screen.
>Twenty kinds of language(English/Finnish/French/German, Greek/Italian/Japanese, Polish/Portuguese/Russian, Spanish/Thai/Simplified Chinese/Chinese-Traditional/Turkish, etc),break up country limitation.
>System auto recovery to power after power reconnected, and return to the pre-power-down state
Specifications:
| Model | KD-G6316H-AHD-72E |
| System | |
| Main Processor | Technical grade embedded microprocessor |
| Operating System | embedded LINUX |
| Interface | |
| Operation interface | 16bit real color GUI interface support mouse operation |
| Display screen | 1/4/9 /16screen (take analog channel as an example other is base on the selected channel mode) |
| Video | |
| Video standard | PAL/NTSC(720P) |
| Image encode | H.264(High Profile);JPEG |
| Monitor quality | Monitor:D1;VGA&HDMI:High definition(support 1920*1080 1280*7201440*9001280*1024 1024*768 800*600) |
| Playback quality | 1080P/720P/D1/HD1/CIF |
| Encode capability | 16CH 720p |
| Decode | 4CH 720p |
| Multi-mode video input | Analog: 16CH*720P/8CH*720P/16CH*AHDL Digital: 2CH*1080P+8CH*720P /8CH*720P HYBIRD: 4CH*720P+4CH*720P |
| Motion detection | Each channel can set 192(16*12)detection area; can set multi-level of flexibility (for local analog channel only) |
| Playback & Record | |
| Record mode | manual>alarm>motion detection>timing |
| Local playback | 1-16ch playback synchronously (take local analog input for example other is depended on the selected channel mode) |
| Video search | time/date/event/channel search |
| Audio | |
| Audio compression | G711A |
| Bidirectional talk | Support |
| Storage and back up | |
| Space occupation | Video: CIF 4~5G/day*channel D1 16~20G/day*channel; audio: 691.2M/day*channel |
| Video storage | Local HDD/Network |
| Back up mode | Network backup/USB portable HDD/USB imprint/SATA imprint |
| Interface | |
| Video input | 16CH BNC(1.0Vp-p75Ω) |
| Video output | 1CH VGA 1CH HDMI |
| Audio imput | 16CH RCA |
| Audio output | 1CH RCA(200-3000mV5KΩ) |
| Alarm input | 16CH |
| Alarm output | 2CH |
| Network port | RJ45 10M/100M self-adaptive Ethernet port |
| PTZ control | 1 RS485;support multi kinds of PTZ protocol |
| USB port | 3*USB2.0 |
| HDD port | 4 SATA ports(each max to 16TB) |
| Wireless port | 3G/WIFI(extension via USB port) |
| General | |
| Power Supply | DC 12V/5A |
| Power Consumption | <30W (Without HDD) |
| Working Environment | 0°C~+55°C / 10%~90%RH / 86~106kpa |
| Weight | 1.6Kg (without HDD) |
| Dimensions(mm) | 1.5U 325mm×255mm×60mm |
AHD 16 channel DVR
NVR interface:
AHD 16 channel DVR * 1
Bracket * 1
CD * 1
Screws& Screwdriver
About us
Shenzhen Guowei Security Co., ltd is a national high - tech enterprise that integrates the design,
development, production and sales of AHD 16 channel DVR products. Established in 2001, has passed ISO9001 quality management system authentication and all the products have been successfully certificated by CE, FCC, ROHS.
Office
Factory
Exhibition
1. What are the terms of payments for AHD 16 channel DVR?
We accept payment via T/T, Paypal, Westunion etc
2. How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
3. What kind of packaging of AHD 16 channel DVR?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
4.What kind of transportation methods?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
5. Warranty of AHD 16 channel DVR?
Normally warranty time is 2 years.
6. When can I get the price of AHD 16 channel DVR?
We usually quote within 24 hours after we receive your inquiry. Please call us by 86-13902441162 or add me in skype: ellen.dengs. Email: ellen(at).
For further information, Pls feel free to contact us or visit our website: www..
