Customized Volume Programmable salt sprayer test machine
Salt sprayer test kit
1.Viewing window
2.Imported pvc panel
3.Customized Size
4, Cyclic spray
Customized Volume Programmable salt sprayer test machine specific Sheet:
| Model | SH-60 |
| Internal Dimension | W600xH450xD400 (mm) |
| External Dimension | W1100xH1200xD600 (mm) |
| Lab Temperature | Saline test (NSS ACSS) 35±1 ℃ / Corrosion Test (CASS) 50±1 ℃ |
| Pressure Bucket Temperature | Saline test method (NSS ACSS) 47±1 ℃ / Corrosion Test (CASS) 63±1 ℃ |
| Lab Capacity(L) | 500 |
| Saline Capacity(L) | 40 |
| Saline Concentration | 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O |
| Compressed Air Pressure(Kgf) | 1.0~6.0 |
| Spray Volume | 1.0~2.0ml /80cm2 /h (working at least 16 hours, and take the average value) |
| Spray Form | Continuous Spraying or Programmable Spraying |
| Power | AC 220V, 1 & 3 lines15A |
| Weight(Kg) | 100 |
Customized Volume Programmable salt sprayer test machine Application:
Salt sprayer test chamber test equipment to test the corrosion resistance of products like paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on.
Customized Volume Programmable salt sprayer test machine Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is
equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent
bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes
and capillaries. The environment-protecting coolant is used for the whole series (R232,R404)
6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
Our other products:
Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc
Our Service:
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
About our company:
Established in 1988, ASLi (China) Test Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Programmable constant Temperature & Humidity Test Chamber, High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, aging tester, drying oven, xenon lights resistant to climate testing machine, UV resistant to climate testing machine, ozone aging test machine, sand and dust testing machine, tension tester, high and low temperature testing machine , servo carton compression tester, mechanical vibration tester and other quality testing instruments. Thanks to several decades of R&D efforts, the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

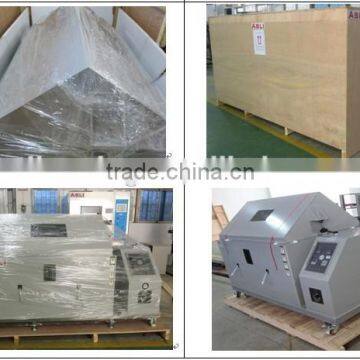

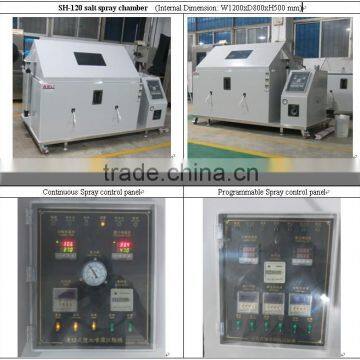

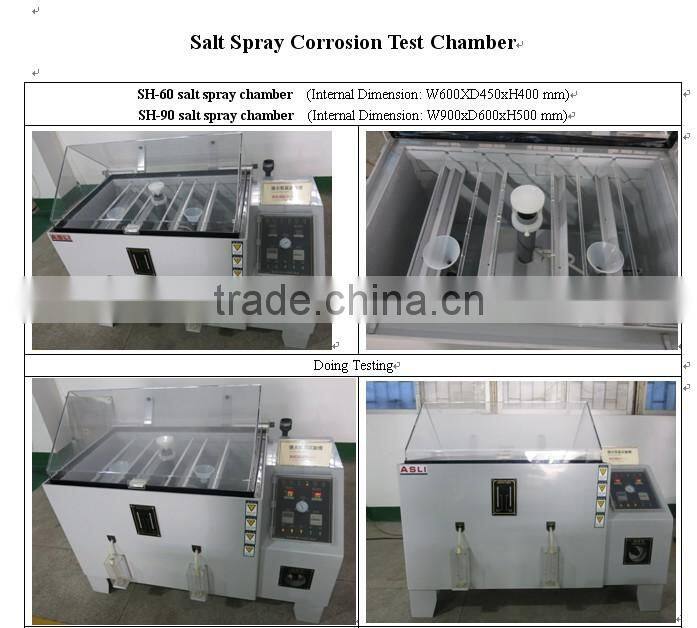

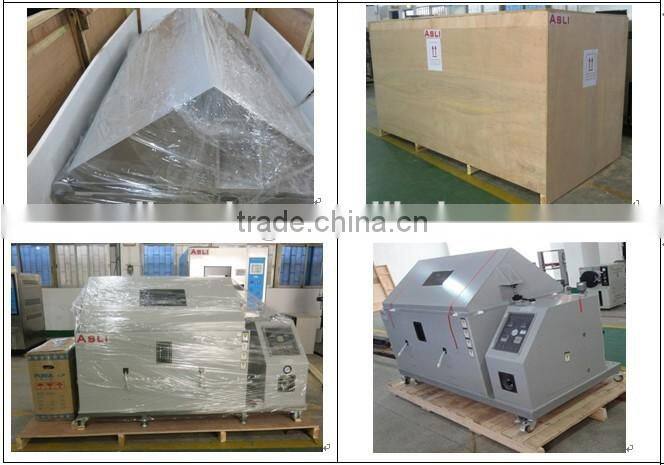

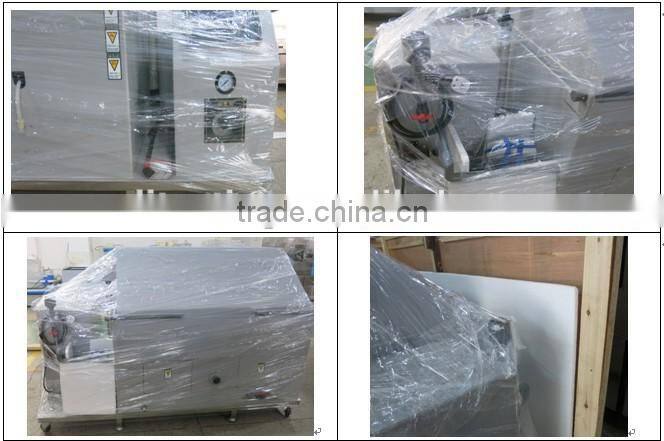

Pictures of salt spray chamber and Company:
